10.85inch e-Paper HAT+ (G)
- Mã sản phẩm: 10.85inch e-Paper HAT+ (G) SKU 29792
- Nhà sản xuất: Waveshare
- Website hỗ trợ: https://www.proe.vn
3.850.000₫
WIKI: www.waveshare.com/wiki/10.85inch_e-Paper_HAT+_(G)

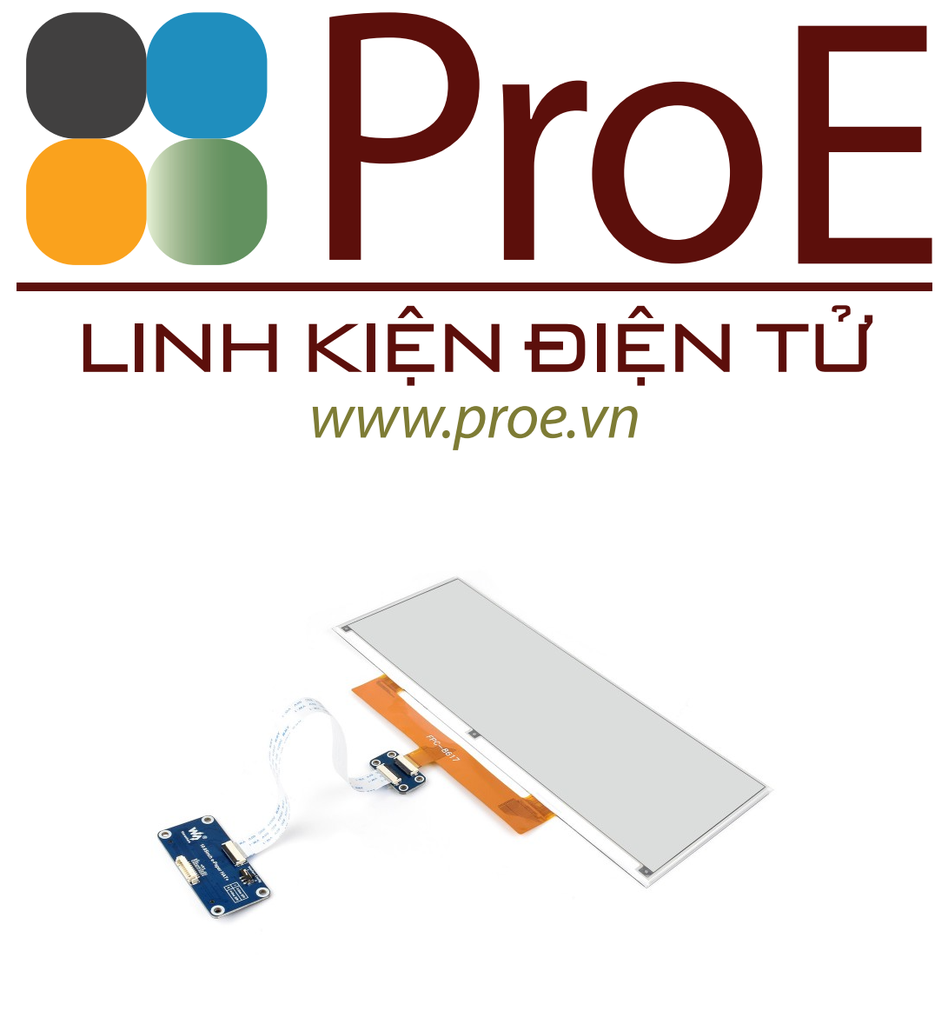

10.85inch e-Paper HAT+ (G)
- 10.85inch e-Paper HAT+ (G) x1

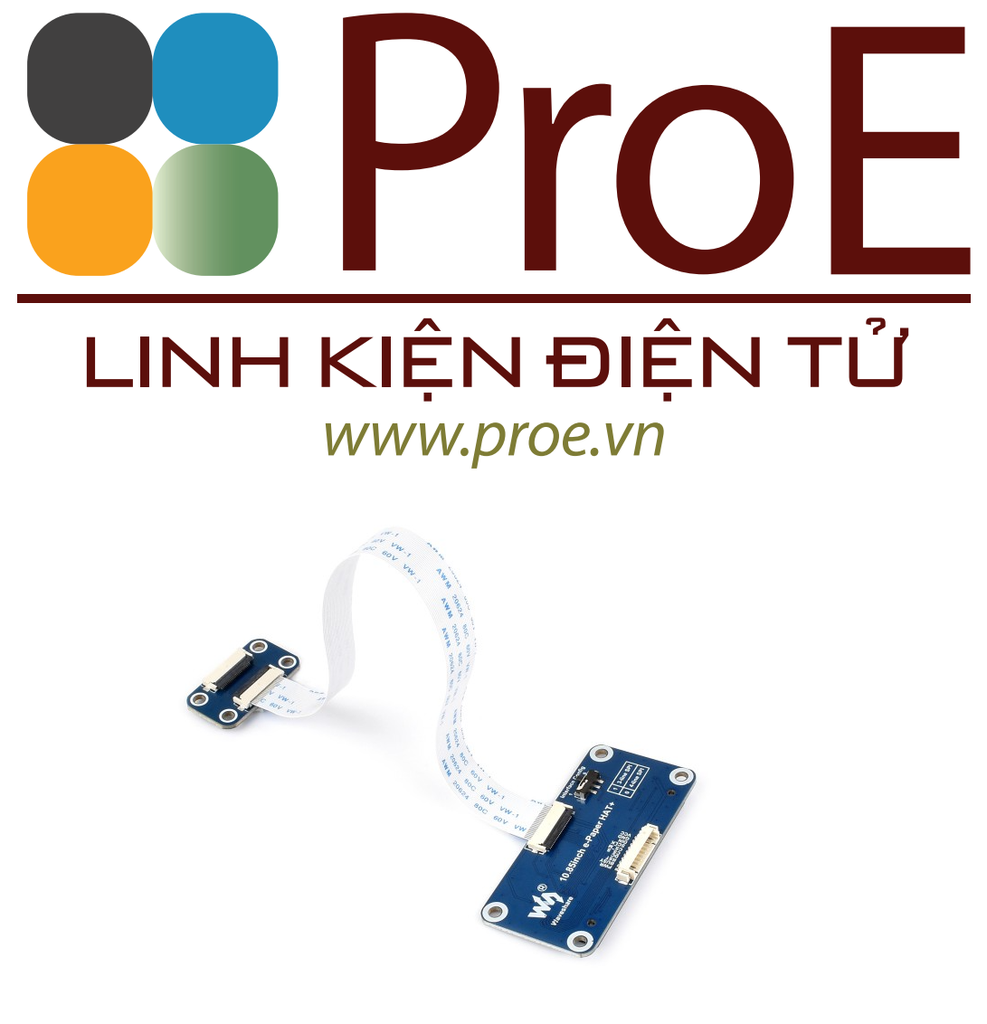

- MX1.25 10PIN cable x1
- Screws pack x1
1
2
3

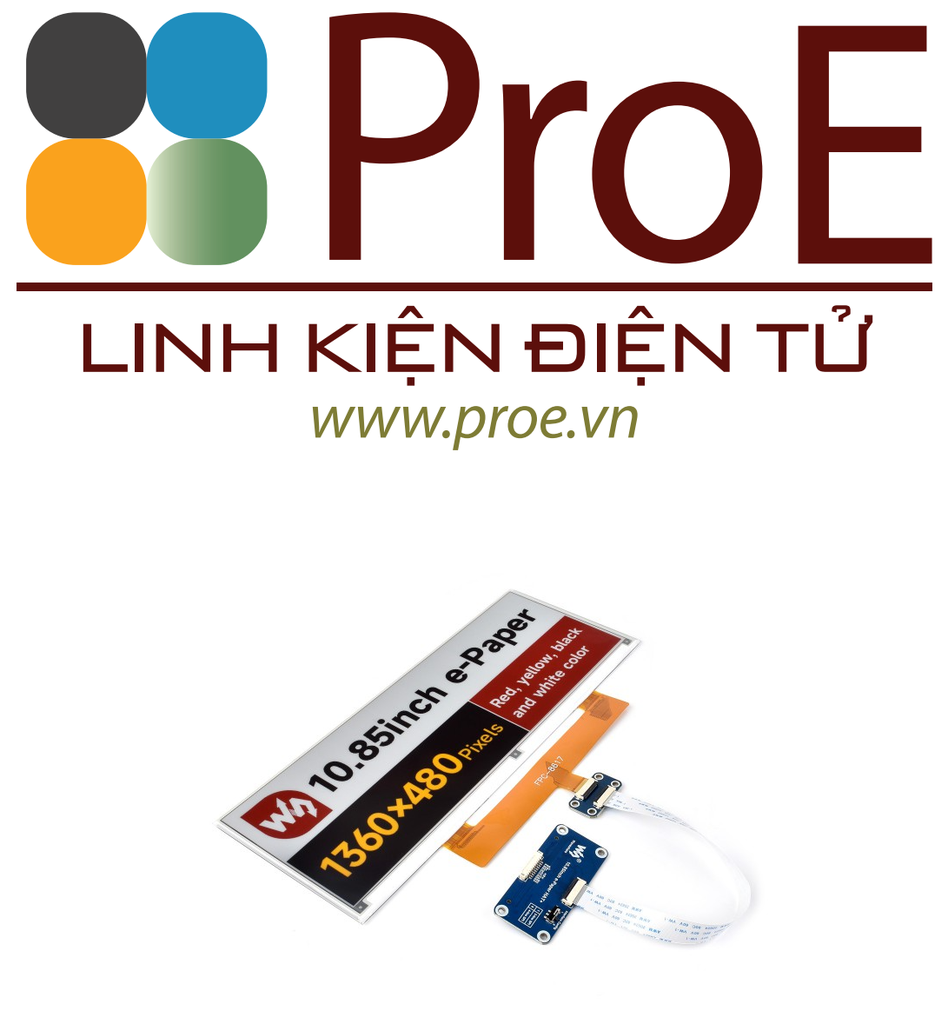

10.85inch e-Paper display (G), e-ink display, 1360x480, Red/Yellow/Black/White, SPI Interface
10.85″ e-Paper (G)
low power, wide viewing angle, paper-like effect without electricity
Ideal for price tags, shelf labels, industrial instruments...
Note: the e-Paper Driver HAT is optional, please refer to the Package Content for detailed part list
- Size
10.85″ - Resolution
1360×480 - Viewing Angle
>170° - Display Color
Red/Yellow/Black/White - Grey Scale
2
- Communication
SPI - Display Panel
E-paper - Experience
Paper-like - Environment
Ambient Light Required - Display Type
Passively Reflective
- HAT+ Standard
Improves interoperability
Version Options
10.85inch e-Paper (G)
raw display, without driver board
10.85inch e-Paper HAT+ (G)
with e-Paper Driver HAT
Features at a glance
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Comes with online development resources and manual (e-Paper Driver HAT circuit diagram, examples for Raspberry Pi / Arduino / STM32)
- Optional for e-Paper Driver HAT:
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- Adopts Raspberry Pi HAT+ standard to improve interoperability, helping the users to design and develop faster, easy to use with other peripherals and extend more functions for Raspberry Pi
- Adapting SPI interface for connecting with controller boards like Raspberry Pi / ESP32 / Arduino / STM32, etc.
- Onboard voltage translator, compatible with 3.3V / 5V MCUs
Specifications
| operating voltage | Raw display: 3.3V | display color | Red/Yellow/Black/White |
|---|---|---|---|
| with driver board: 3.3V/5V | |||
| interface | 3-wire SPI, 4-wire SPI | grey scale | 2 |
| outline dimensions | Raw display: 270.56 × 105.92 × 1.20 (mm) | full refresh time | 21s |
| with driver board: 65.00 × 30.50 (mm) | |||
| refresh power | <70mW | fast refresh time | 12s |
| DOT PITCH | 0.191 × 0.191 (mm) | standby current | <0.01uA (almost none) |
| RESOLUTION | 1360 × 480 pixels | viewing angle | >170° |
| display size | 259.76 × 91.68 (mm) | ||
Advantages of EINK
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

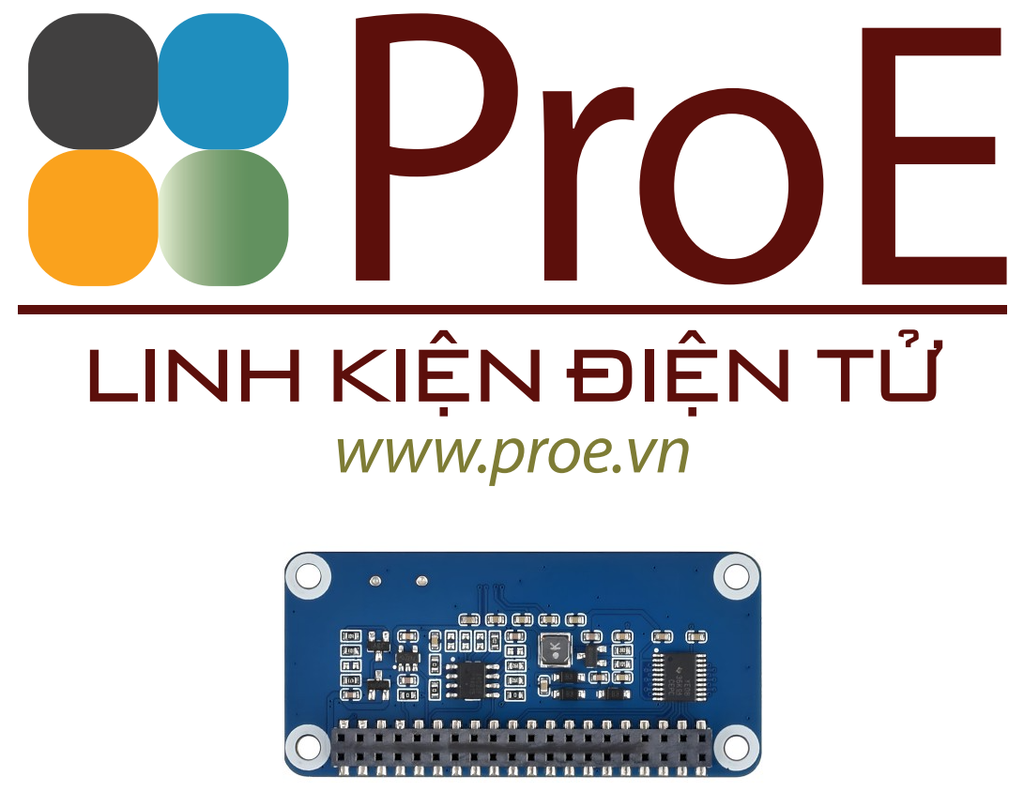

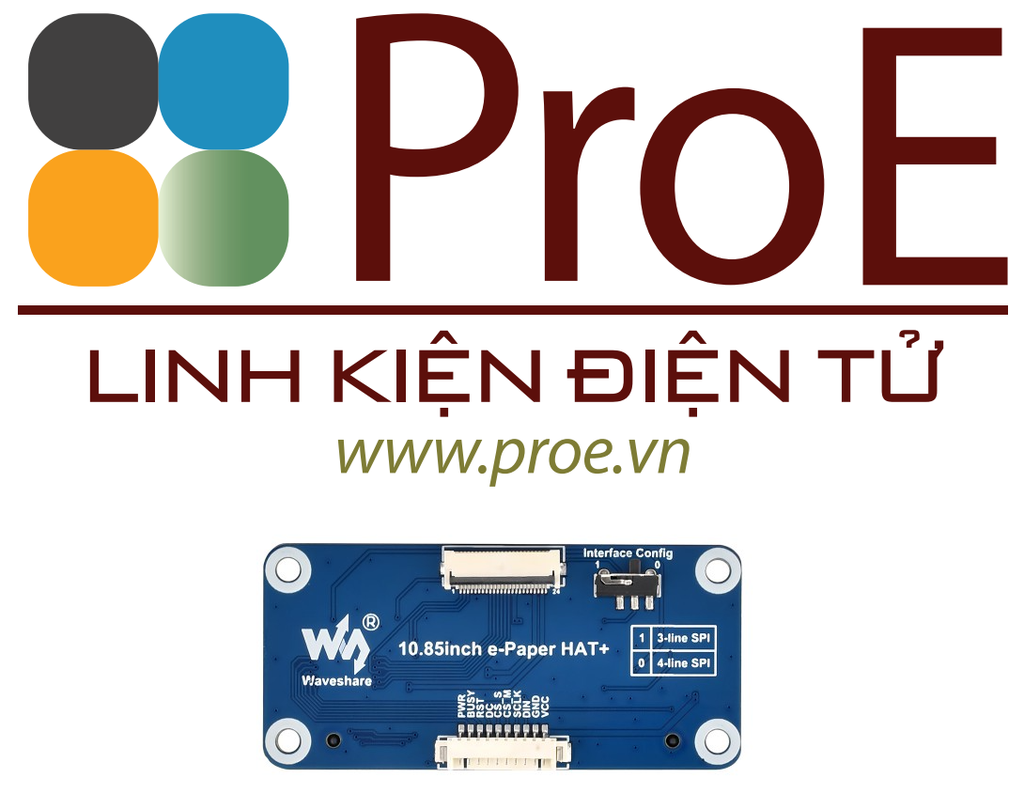

Optional for e-Paper Driver HAT
Onboard SPI Control Interface, For Use With Controller Boards Like Arduino / ESP32 / STM32 / Raspberry Pi
| VCC | 3.3V/5V |
|---|---|
| GND | Ground |
| DIN | SPI MOSI pin |
| SCLK | SPI SCK pin |
| CS_M | e-paper M area chip selection, low active |
| CS_S | e-paper S area chip selection, low active |
| DC | Data / Command selection (high for data, low for command) |
| RST | External reset, low active |
| BUSY | Busy status output |
| PWR | Power control pin |
Onboard Voltage Translator
Compatible With 3.3V / 5V MCUs
Application examples
Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...
Outline dimensions
