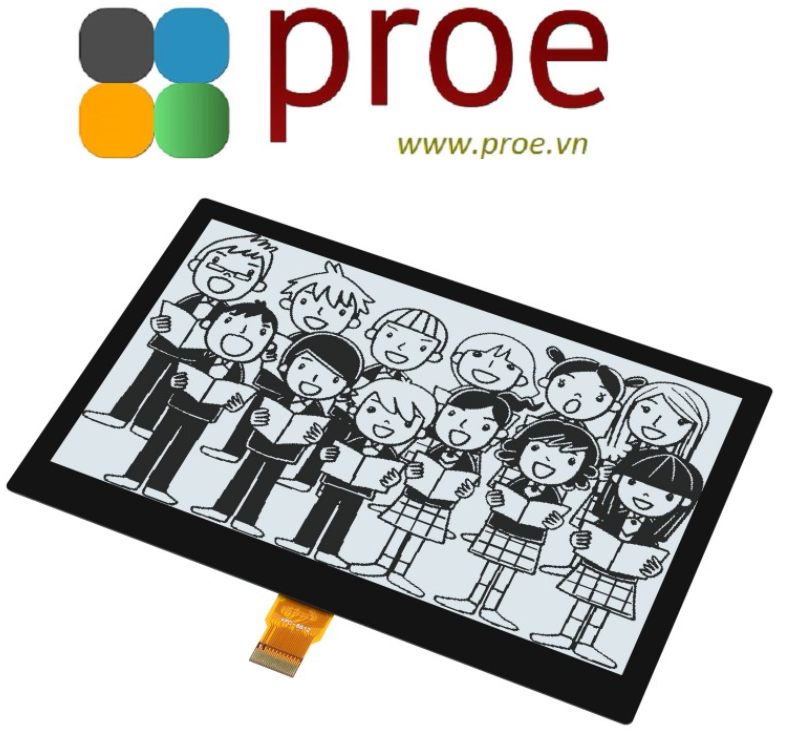

7.5inch e-Paper (G) E-Ink Fully Laminated Display, 800×480, Black / White, SPI, without PCB

  • Mã sản phẩm: 7.5inch e-Paper (G)
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
1.950.000₫
PACKAGE CONTENT

Weight: 0.088 kg

  1. 7.5inch e-Paper (G) x1

1

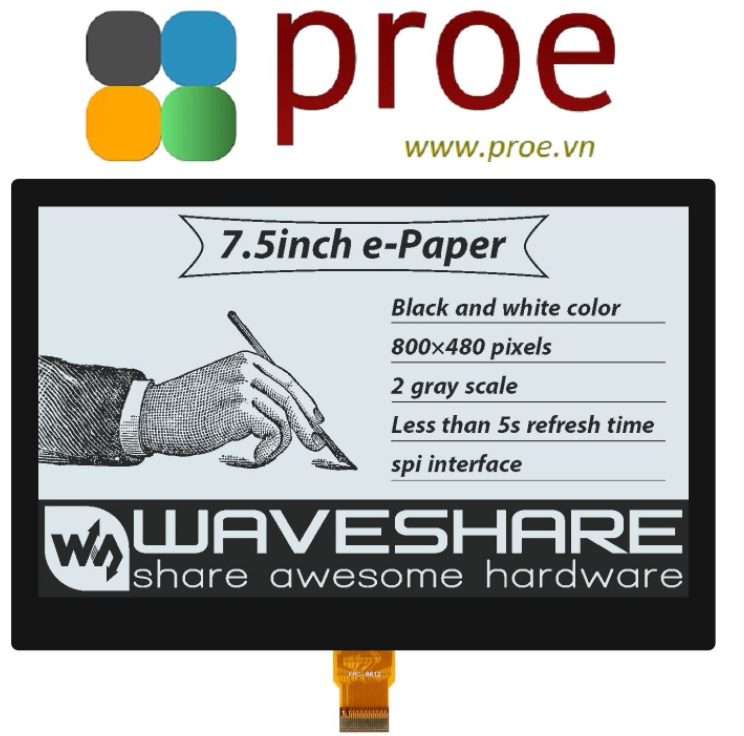

7.5inch E-Paper E-Ink Fully Laminated Display, 800×480 Pixels, Black / White Dual-Color, SPI Interface, Without PCB

7.5″ FULLY LAMINATED E-PAPER

Low Power Consumption, Wide Viewing Angle, Paper-Like Displaying Without Electricity

Ideal for price tags, shelf labels, industrial instruments...



  • Size7.5″
  • Resolution800×480
  • Viewing Angle>170°
  • Display ColorBlack and White
  • Grey Scale2
  • CommunicationSPI
  • Display PanelE-paper
  • ExperiencePaper-like
  • EnvironmentAmbient Light Required
  • Display TypePassively Reflective
  • Panel MaterialAnti-glare Glass
  • Panel TechFully Laminated

Features At A Glance

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

OPERATING VOLTAGE 3.3V DISPLAY COLOR black, white
INTERFACE 3-wire SPI, 4-wire SPI GREY SCALE 2
OUTLINE DIMENSIONS 177.2 × 118.2 × 2.00mm FULL REFRESH TIME 5s
DISPLAY SIZE 163.2 × 97.92mm REFRESH POWER 26.4mW (typ.)
DOT PITCH 0.205 × 0.204mm STANDBY CURRENT <0.01uA (almost none)
RESOLUTION 800 × 480 pixels VIEWING ANGLE >170°



Anti-Glare Toughened Glass

Reducing Ambient Light Interference And Reflective Glare, More Clear Image,
Greatly Improving The Display Effect

Fully Laminated Screen

The Fully Laminated Screen Is Thinner While Providing Better Protection By The Toughened Glass Panel. Comes With Back Tape For Embeding To Your Project More Flexibly.

Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Application Examples

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

Outline Dimensions

Resources & Services


WIKI: 7.5inch_e-Paper_(G)

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Recommended

To fastly get started with this raw display, please consider the following driver boards:
