5.83inch e-Paper (C)

  • Mã sản phẩm: 5.83inch e-Paper (C)
  • Nhà sản xuất: Waveshare
  • Tình trạng: Còn hàng
  • Website hỗ trợ: https://www.proe.vn
1.550.000₫

7.5inch e-Paper HAT (B) 640x384, 7.5inch E-Ink display HAT for Raspberry Pi, three-color

640x384, 7.5inch E-Ink display HAT for Raspberry Pi, three-color, SPI interface

Overview

This is an E-Ink display HAT for Raspberry Pi, 7.5inch, 640x384 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Compatible with Raspberry Pi 2B/3B/3B+/Zero/Zero W
  • SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
  • Onboard voltage translator, compatible with 3.3V/5V MCUs
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

  • Operating voltage: 3.3V~5V
  • Interface: SPI
  • Outline dimension: 170.2mm × 111.2mm
  • Display size: 163.2mm × 97.92mm
  • Dot pitch: 0.255 × 0.255
  • Resolution: 640 × 384
  • Display color: red, black, white
  • Grey level: 2
  • Full refresh time: 16s
  • Refresh power: 38mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°

Interface

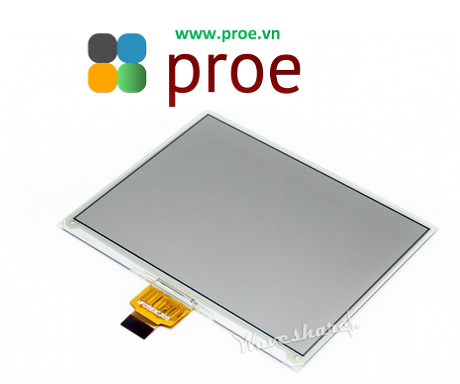

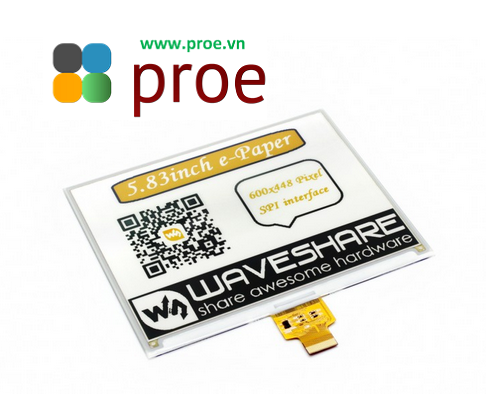

600x448, 5.83inch E-Ink raw display, yellow/black/white three-color, SPI interface, without PCB

Overview

This is an E-Ink raw display, 5.83inch, 600x448 resolution, with embedded controller, communicating via SPI interface, supports yellow, black, and white three-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Arduino/STM32)

Specifications

  • Operating voltage: 3.3V
  • Interface: 3-wire SPI, 4-wire SPI
  • Outline dimension: 125.40mm × 99.50mm × 1.18mm
  • Display size: 118.80mm × 88.26mm
  • Dot pitch: 0.198 × 0.197
  • Resolution: 600 × 448
  • Display color: yellow, black, white
  • Grey level: 2
  • Full refresh time: 26s
  • Refresh power: 26.4mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°

Development Resources

Wiki : www.waveshare.com/wiki/5.83inch_e-Paper_HAT_(C)_



Dimensions

7.5inch e-Paper HAT dimensions

Development Resources

Wiki : www.waveshare.com/wiki/7.5inch_e-Paper_HAT_(B)

7.5inch e-Paper HAT (B)7.5inch e-Paper HAT (B)
