5.65inch e-Paper Module (F) 5.65inch ACeP 7-Color E-Paper E-Ink Display Module, 600×448 Pixels

  • Mã sản phẩm: 5.65inch e-Paper Module (F)
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
2.600.000₫
DESCRIPTION

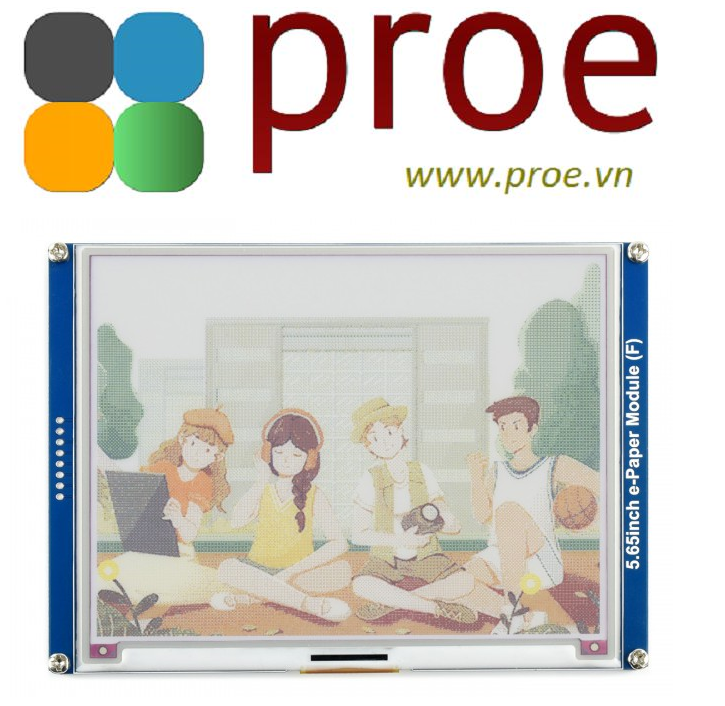

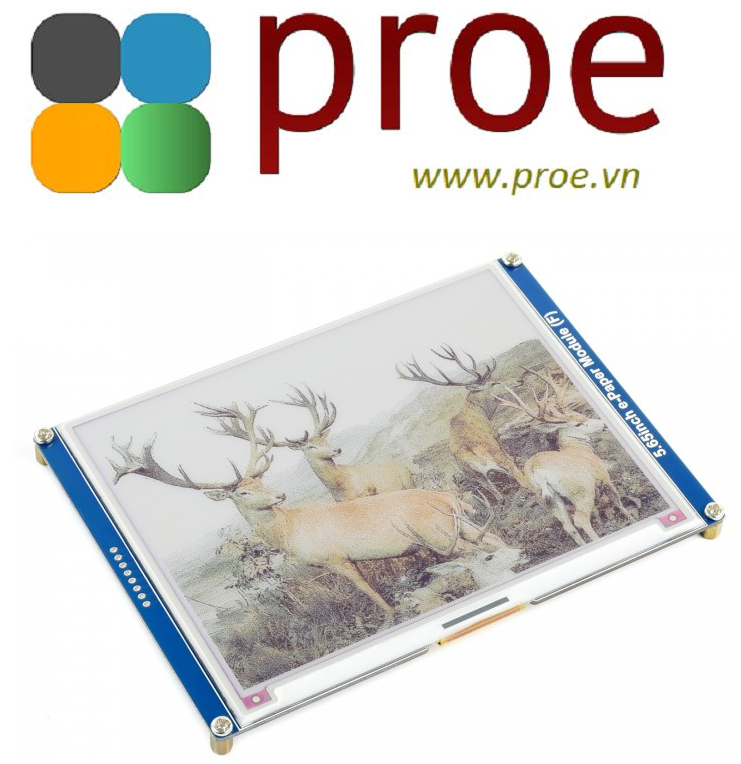

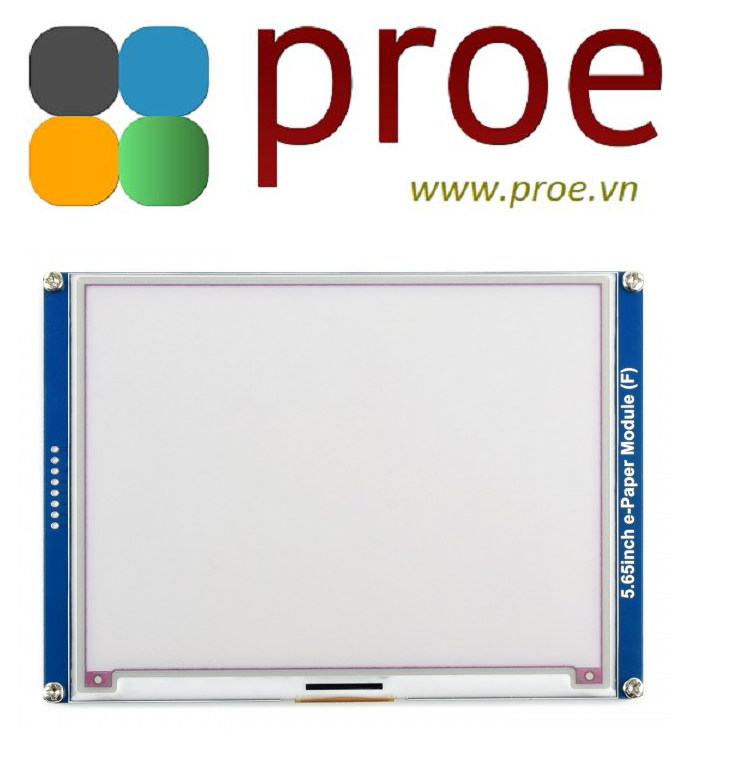

5.65inch Colorful E-Paper E-Ink Display Module, 600×448 Pixels, ACeP 7-Color

5.65" 7-COLOR E-PAPER MODULE

Low Power Consumption, Wide Viewing Angle, Paper-Like Displaying Without Electricity

Ideal for price tags, shelf labels, industrial instruments...


  • Size5.65"
  • Resolution600×448
  • Viewing Angle>170°
  • Display Color7-Color
  • Grey Scale2
  • CommunicationSPI
  • Display PanelE-paper
  • ExperiencePaper-like
  • EnvironmentAmbient Light Required
  • Display TypePassively Reflective

Features At A Glance

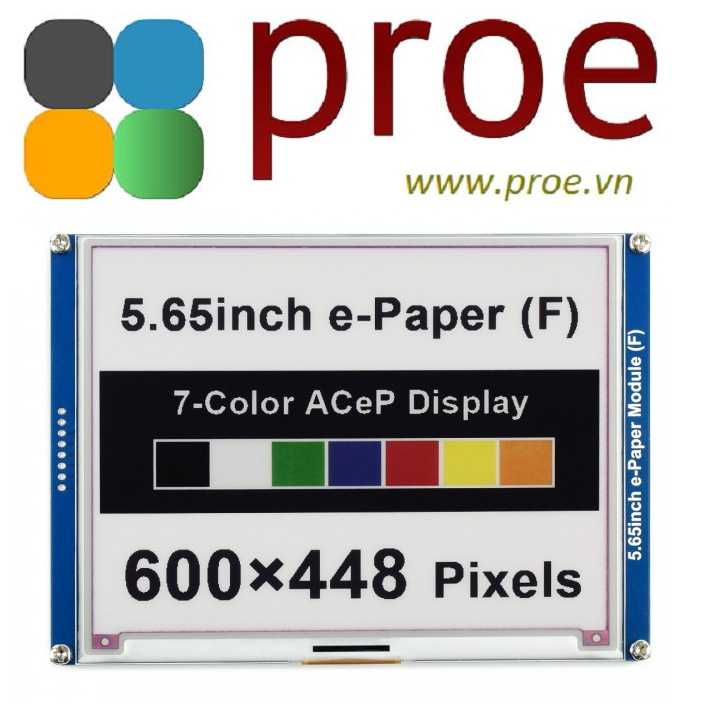

  • Advanced Color ePaper (ACeP) technology, supports 7-Color display
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • SPI interface, for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
  • Onboard voltage translator, compatible with 3.3V / 5V MCUs
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

OPERATING VOLTAGE 3.3V/5V DISPLAY COLOR ACeP 7-Color
INTERFACE 3-wire SPI, 4-wire SPI GREY SCALE 2
OUTLINE DIMENSIONS 138.5 × 100.5mm FULL REFRESH TIME 15s
DISPLAY SIZE 114.9 × 85.8mm REFRESH POWER 50mW (typ.)
DOT PITCH 0.1915 × 0.1915mm STANDBY CURRENT <0.01uA (almost none)
RESOLUTION 600 × 448 pixels VIEWING ANGLE >170°


Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

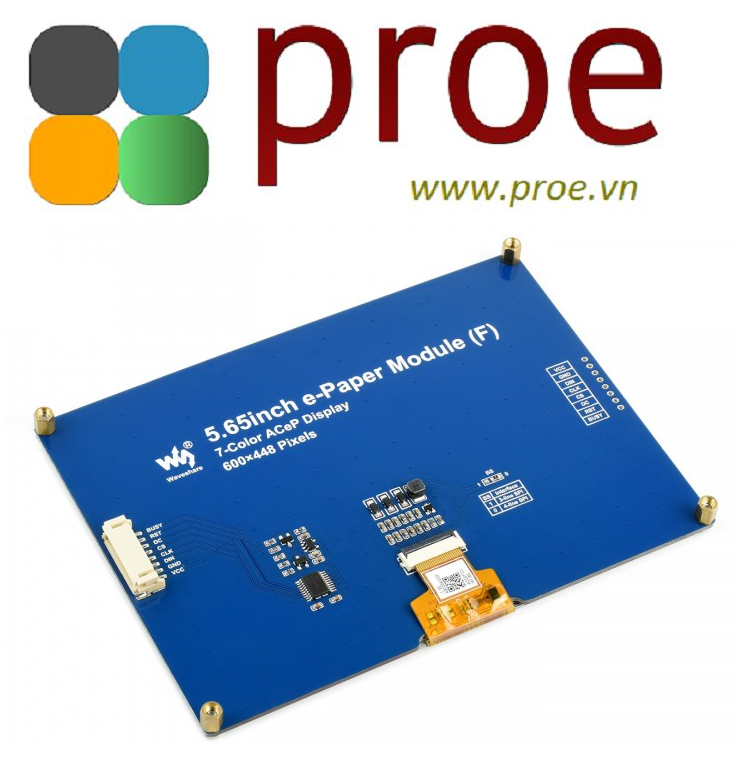

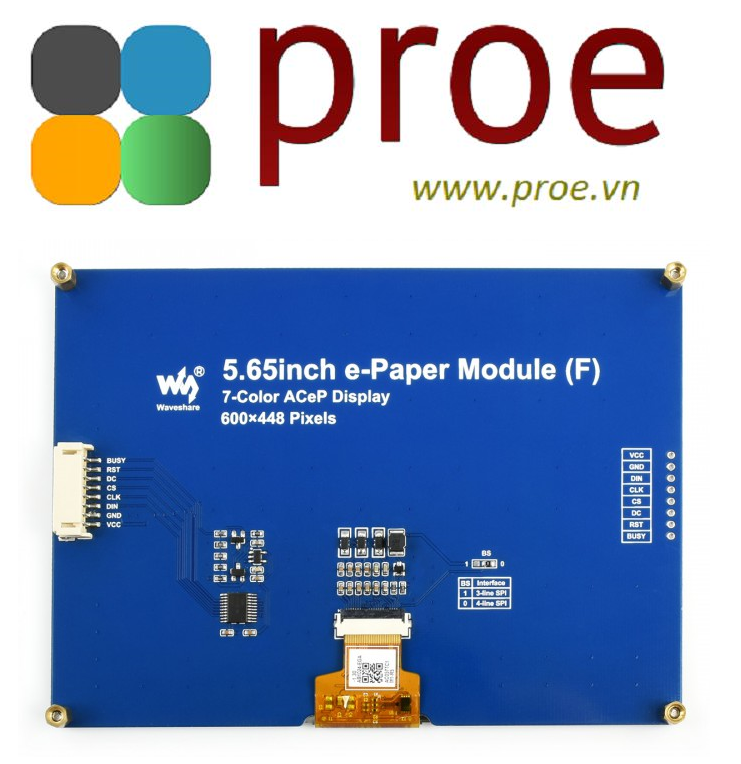

SPI Control Interface

Supports Control Boards Including Raspberry Pi/Jetson Nano/Arduino/STM32...

VCC 3.3V/5V
GND Ground
DIN SPI MOSI pin
CLK SPI SCK pin
CS SPI chip selection, low active
DC Data / Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output

Multiple Voltage Level Support

Onboard Voltage Translator, Compatible With 3.3V / 5V MCUs

Application Examples

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

Outline Dimensions

Resources & Services


WIKI: www.waveshare.com/wiki/5.65inch_e-Paper_Module_(F)

PACKAGE CONTENT

Weight: 0.086 kg

  1. 5.65inch e-Paper Module (F) x1
  2. PH2.0 20cm 8Pin x1
