5.5inch 1440x2560 LCD

PACKAGE CONTENT

Weight: 0.279 kg

5.5inch 1440x2560 LCD kit

1. 5.5inch 1440x2560 LCD x1
2. HDMI cable x1
3. USB type A plug to micro B plug cable x1
4. USB adapter (B) x1
5. HDMI adapter (B) x1
6. HDMI to Micro HDMI adapter (C) x1
7. USB adapter (D) x1
8. Screws pack x1

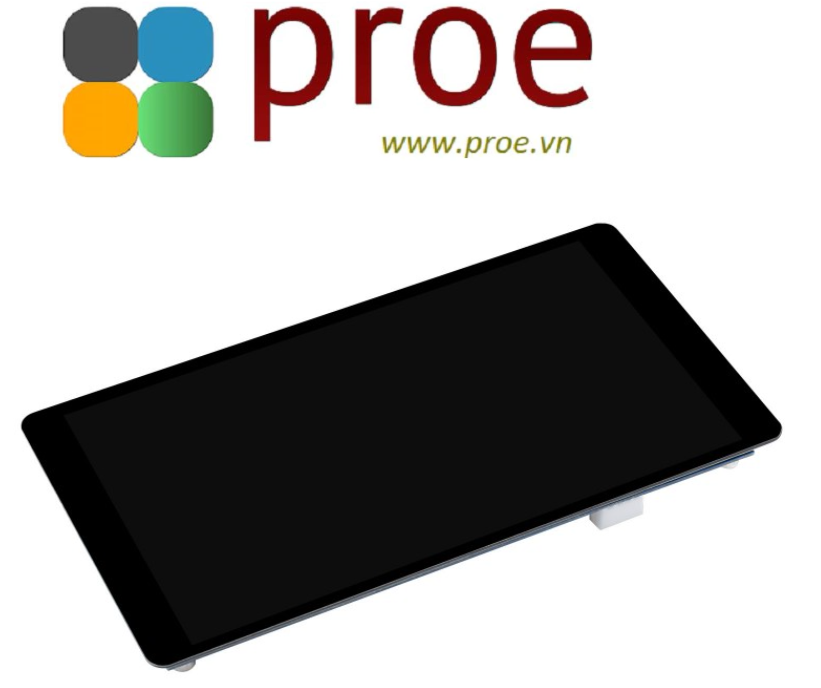

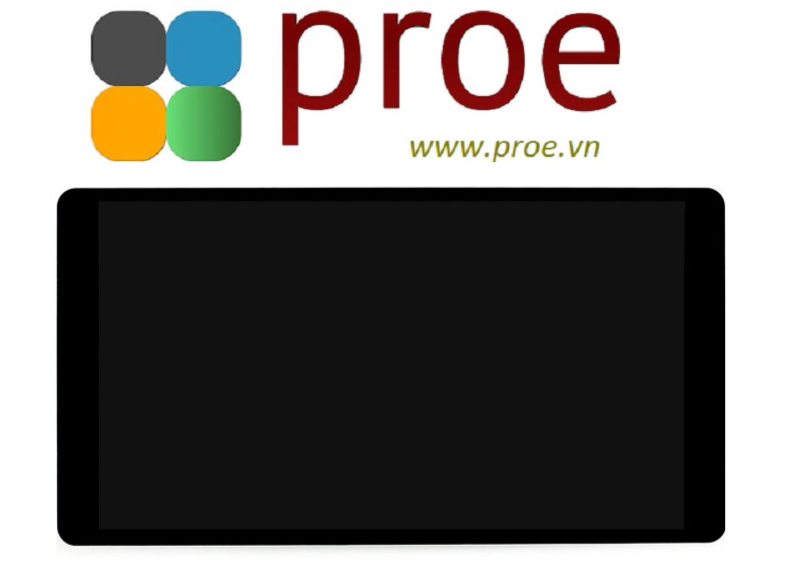

Raspberry Pi 5.5inch 2K Capacitive Touch LCD Display, HDMI Interface, IPS Screen, 1440×2560, Toughen Glass Panel, With Case(Optional)

5.5″ 2K Touch Display

High Resolution | Multi-Touch | Full Color

• Size5.5″
• Resolution1440×2560
• Display PortHDMI
• Display PanelIPS
• Viewing Angle170°
• Touch TypeCapacitive
• Touch Points10-Point
• Touch PortUSB
• Touch PanelToughened Glass
• Touch Panel TechOptical Bonding
• Audio Output13.5mm Jack
• Audio Output24PIN Header

The display orientation is portrait by default, 1440×2560 resolution (H×V). Change the software config for landscape display.

Version Options

For More Detailed Part List, Please Refer To The Package Content

The display only

The display with case
Only support Raspberry Pi 4B

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali, single point touch, driver free

PC

Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free

• For the moment, only the Raspberry Pi 4B and CM4 have adequate CPU performance to drive this 2K display completely.
• Support more powerful future versions as long as its GPU performance is equivalent to or better than the Pi 4B.
• Limited by the hardware, when working with Raspberry Pi 3B+/Pi 3B/Zero 2w/Zero w, only supports default portrait display and cannot be rotated.
• The case only supports Raspberry Pi 4B.

Connection Examples

Working With Raspberry Pi 4B

The Display Only

The Display With Case

Working With Compute Module 4

Working With Mini PC

for reference only, Raspberry Pi 4B and CM4 are not included

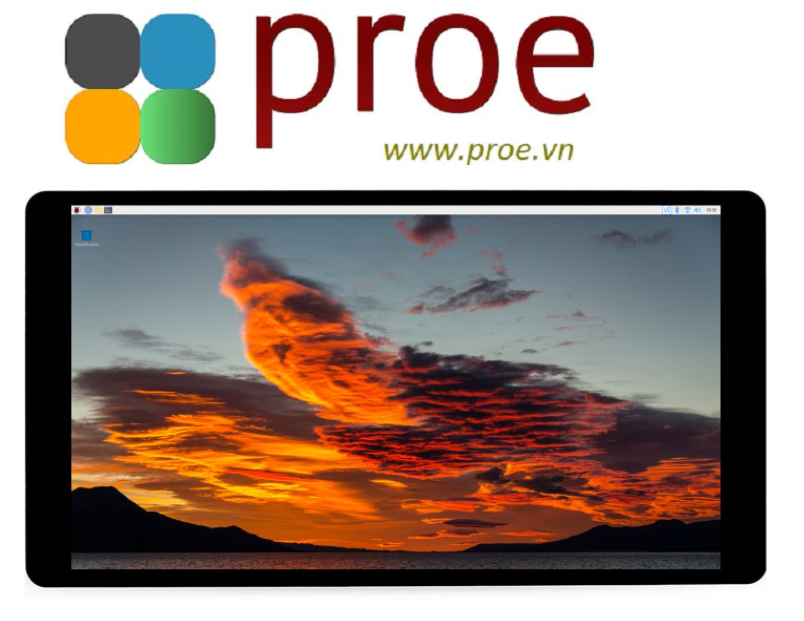

IPS Display Panel

Excellent Display & Color Performance

2K High Resolution

1440 X 2560 Pixels
Optical Bonding, Dust-Proof And Clearer Display

Capacitive 10-Point Touch

Support 10-Point Touch, The Actual Number Of Touch Points Is Related
To The Software And System
Toughened Glass Panel, Hardness Up To 6H

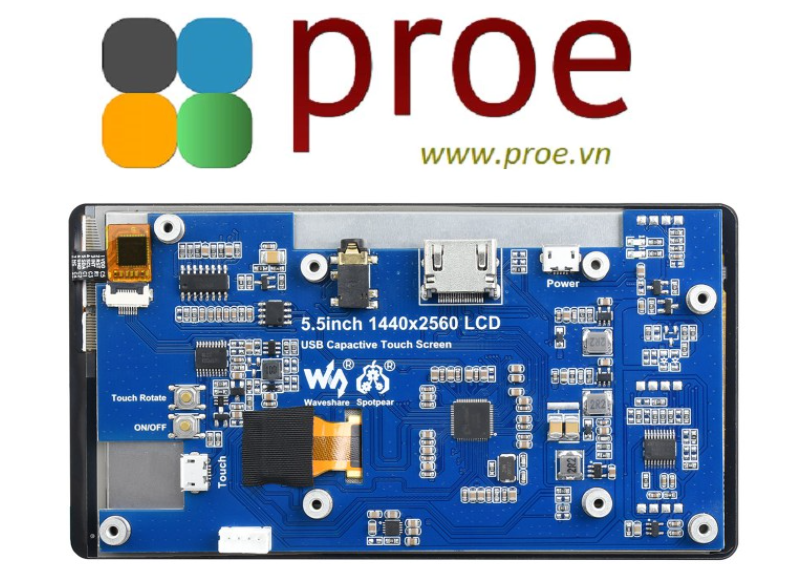

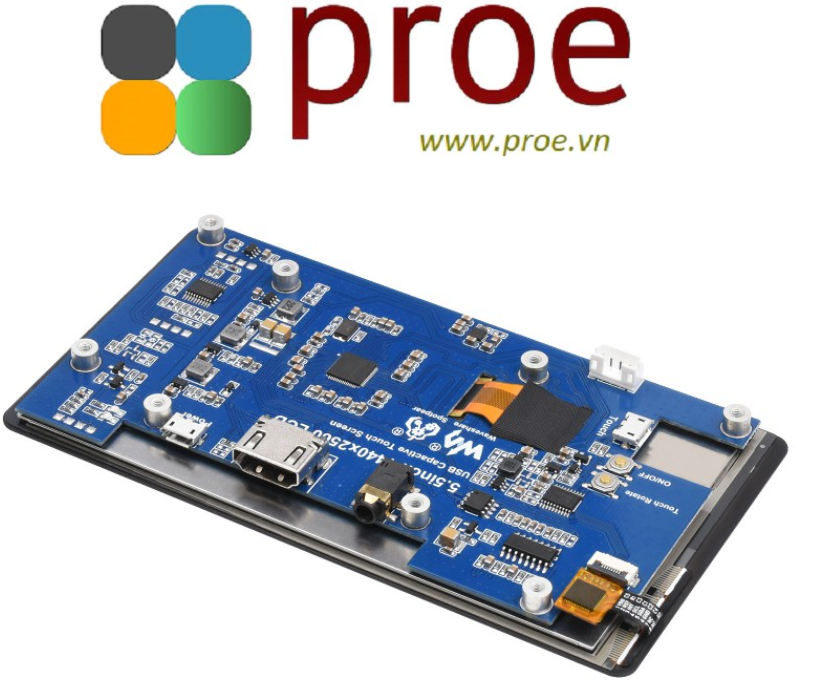

Interface Introduction

Dimensions

The Display Only

The Display With Case

Support Touch Screen Customization

Support The Following Ways To Customize The Touch Screen Display In Bulk Order

Over A Decade
Waveshare Grows With Display

* Waveshare has been focusing on display design for over 10 years.

Resources & Services

Wiki: www.waveshare.com/wiki/5.5inch_1440x2560_LCD
