4inch Square Capacitive Touch Screen LCD (C) for Raspberry Pi, 720×720, DPI, IPS, Toughened Glass Cover, Low Power

PACKAGE CONTENT

Weight: 0.079 kg

1. 4inch DPI LCD (C) x1
2. Screws pack x1

1

2

4inch Square Capacitive Touch Screen LCD (C) For Raspberry Pi, 720×720, DPI, IPS, Toughened Glass Cover, Low Power Solution

4" Square DPI Touch Display

• Size4"
• Resolution720×720
• Display PortDPI666 (262K Colors)
• Display PanelIPS
• Viewing Angle170°
• Touch TypeCapacitive
• Touch Points5-Points
• Touch PortI2C
• Touch Panel TechFully Laminated
• Touch PanelToughened Glass

Device & System Support

Raspberry Pi

Based on Raspberry Pi 40PIN GPIO header
Driven by Raspberry Pi DPI666 interface, up to 60Hz refresh rate
5-Points touch control through Raspberry Pi I2C interface
Supports systems like Raspbian, Kali, Ubuntu mate...

Supports future version which is backward compatible

Connection Examples

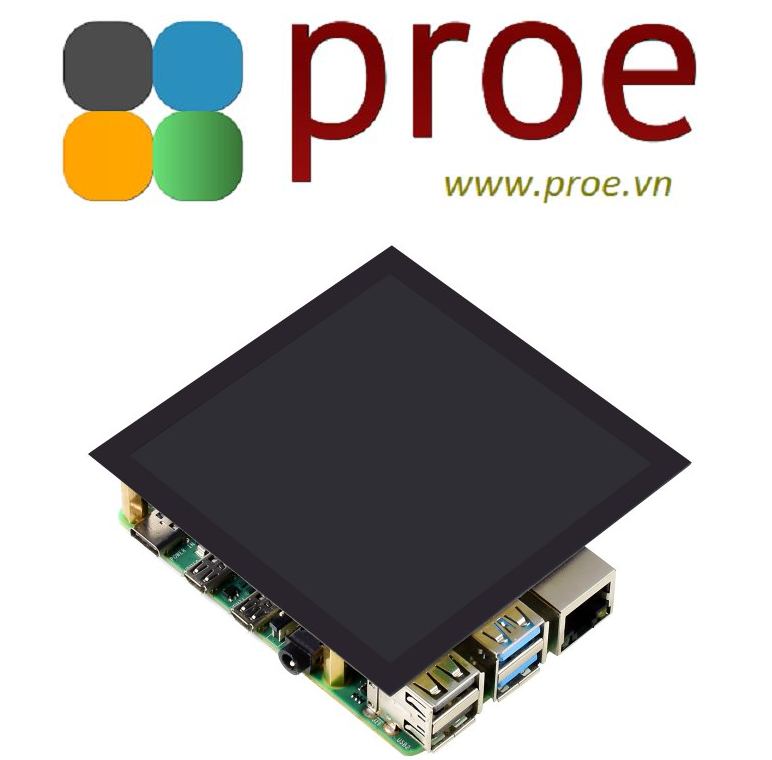

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Working With Raspberry Pi Zero W

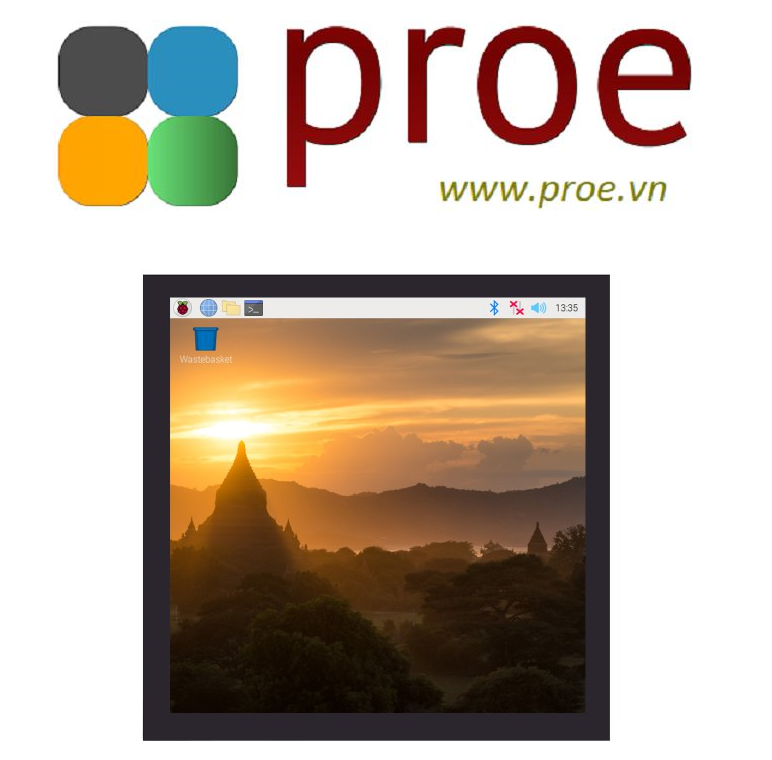

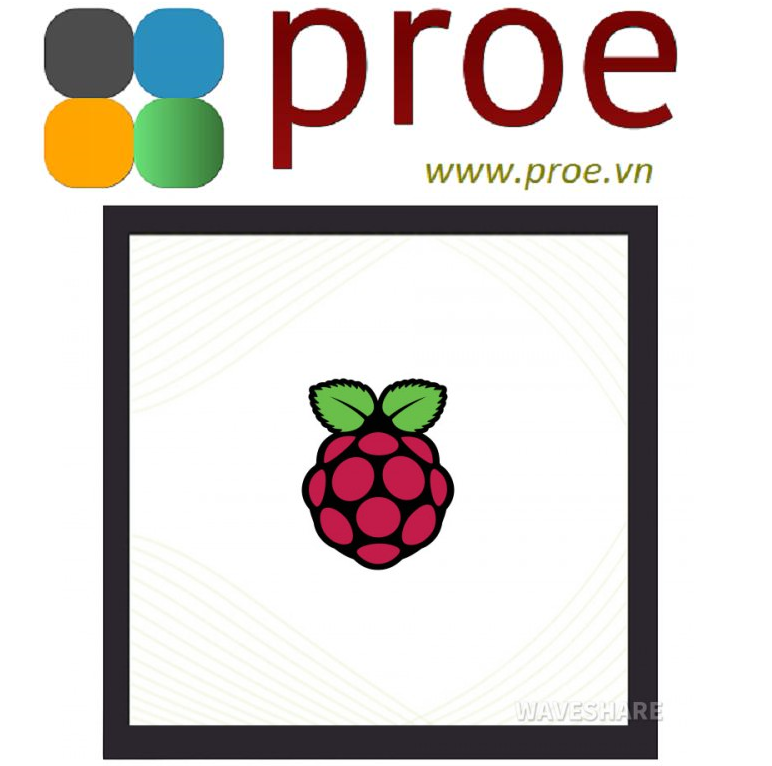

Display

IPS Panel

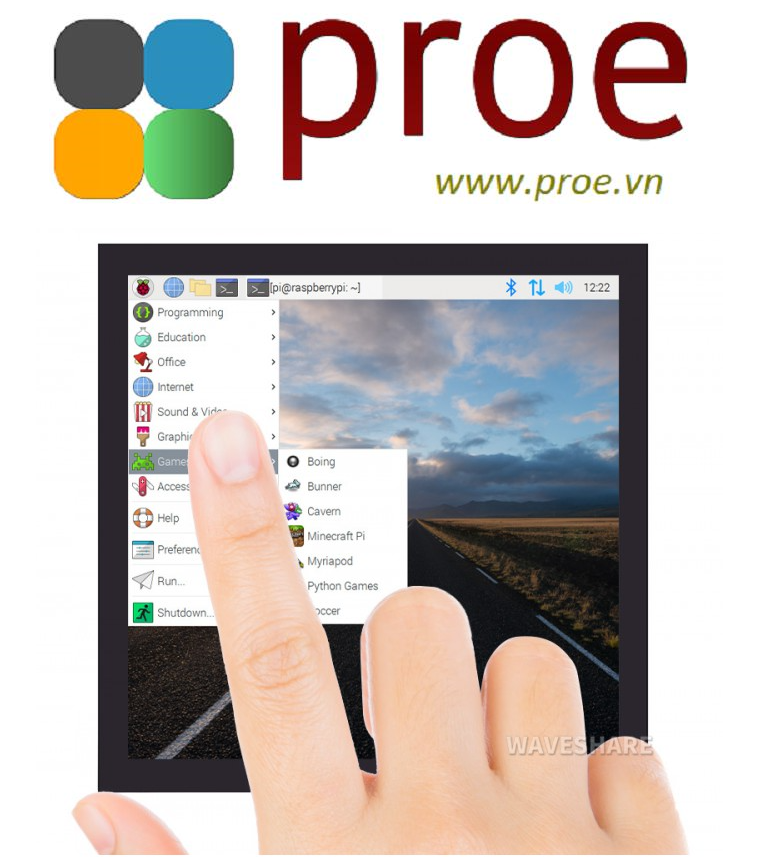

Touch Control

1) up to 5-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel.

Appearance And Dimensions

Resources & Services

Wiki: 4inch_DPI_LCD_(C)
