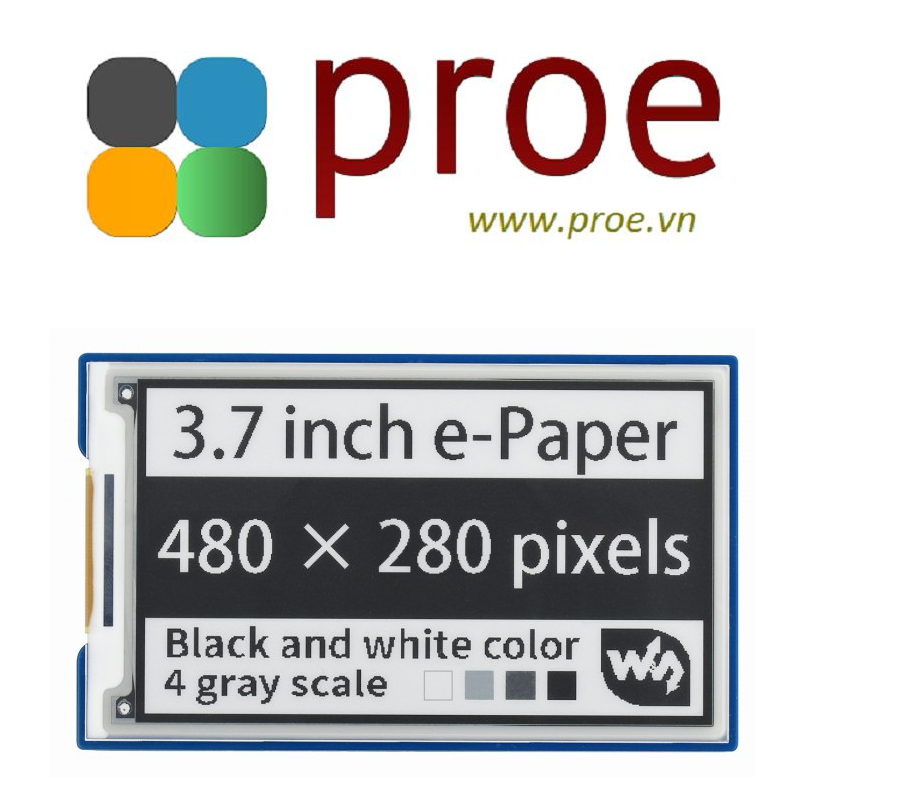

3.7inch e-Paper e-Ink Display HAT For Raspberry Pi, 480×280, Black / White, 4 Grey Scales, SPI

  • Mã sản phẩm: 3.7inch e-Paper HAT
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
790.000₫
PACKAGE CONTENT

Weight: 0.043 kg

  1. 3.7inch e-Paper HAT x1
  2. PH2.0 20cm 8Pin x1

1

2

DESCRIPTION


3.7inch E-Paper E-Ink Display HAT For Raspberry Pi, 480×280 Pixels, Black / White, 4 Grey Scales, SPI Interface

3.7" E-PAPER HAT FOR RASPBERRY PI

Partial Refresh Support, Low Power, Wide Viewing Angle, Paper-Like Effect

Ideal for price tags, shelf labels, industrial instruments...


  • Size3.7"
  • Resolution480×280
  • Viewing Angle>170°
  • Display ColorBlack and White
  • Grey Scale4
  • CommunicationSPI
  • Display PanelE-paper
  • ExperiencePaper-like
  • EnvironmentAmbient Light Required
  • Display TypePassively Reflective
  • RefreshingPartial Refresh Support

Features At A Glance

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • SPI interface, for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
  • Onboard voltage translator, compatible with 3.3V / 5V MCUs
  • Comes with development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

OPERATING VOLTAGE 3.3V/5V GREY SCALE 4
INTERFACE 3-wire SPI, 4-wire SPI PARTIAL REFRESH TIME 0.3s
OUTLINE DIMENSIONS 58.0 × 96.5mm FULL REFRESH TIME 3s
DISPLAY SIZE 47.32 × 81.12mm REFRESH POWER 50mW (typ.)
DOT PITCH 0.169 × 0.169mm STANDBY CURRENT <0.01uA (almost none)
RESOLUTION 480 × 280 pixels VIEWING ANGLE >170°
DISPLAY COLOR black, white


Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Standard Raspberry Pi 40PIN GPIO Header

Compatible With Raspberry Pi Series Boards, Jetson Nano

Raspberry Pi in the photo are NOT included.

Onboard SPI Control Interface

For Use With Other Controller Boards Like STM32/Arduino

VCC 3.3V/5V
GND Ground
DIN SPI MOSI pin
CLK SPI SCK pin
CS SPI chip selection, low active
DC Data / Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output, high active

Onboard Voltage Translator

Compatible With 3.3V / 5V MCUs

Application Examples

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

Outline Dimensions

Resources & Services


WIKI: 3.7inch_e-Paper_HAT
