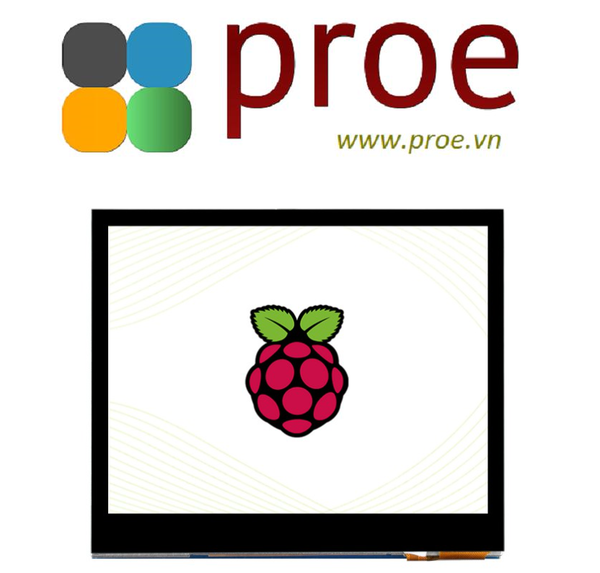

3.5inch DPI LCD 3.5inch Capacitive Touch Screen LCD For Raspberry Pi, 640×480, DPI, IPS, Toughened Glass Cover, Low Power

Weight: 0.08 kg

1. 3.5inch DPI LCD x1
2. Screws pack x1

1

2

3.5inch Capacitive Touch Screen LCD For Raspberry Pi, 640×480, DPI, IPS, Toughened Glass Cover, Low Power Solution

3.5" DPI Touch Display

• Size3.5"
• Resolution640×480
• Display PortDPI666 (262K Colors)
• Display PanelIPS
• Viewing Angle160°
• Touch TypeCapacitive
• Touch Points5-Points
• Touch PortI2C
• Touch PanelToughened Glass
• Power ConsumptionLow Power

Device & System Support

Raspberry Pi

Based on Raspberry Pi 40PIN GPIO header
Driven by Raspberry Pi DPI666 interface, up to 60Hz refresh rate
5-Points touch control through Raspberry Pi I2C interface
Supports systems like Raspbian, Kali...

Supports future version which is backward compatible

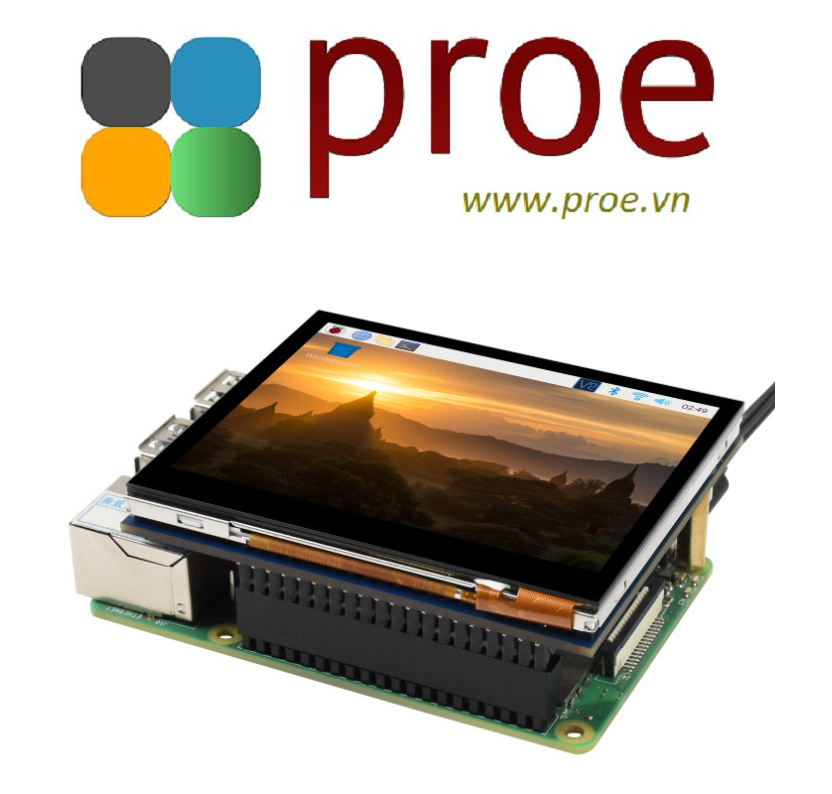

Connection Examples

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Working With Raspberry Pi Zero W

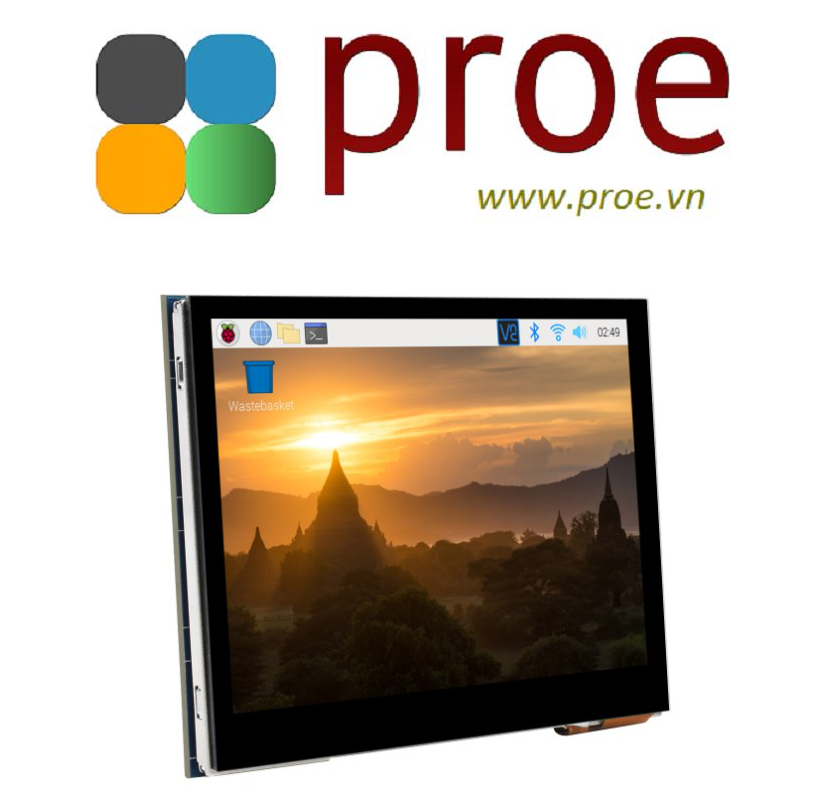

Display

IPS Panel

Touch Control

1) up to 5-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel.

Appearance And Dimensions

Resources & Services

Wiki: 3.5inch_DPI_LCD
