3.5inch 480x800 LCD

PACKAGE CONTENT

Weight: 0.159 kg

1. 3.5inch 480x800 LCD x1
2. HDMI flat cable ~1m x1
3. USB Type-A to USB Type-C cable ~1m x1
4. HDMI to Micro HDMI adapter x1

3.5inch IPS Capacitive Touch LCD Display, 480×800, Adjustable Brightness

3.5″ IPS Touch Display

• Size3.5″
• Resolution480×800
• Display InterfaceHDMI
• Display PanelIPS
• Viewing Angle170°
• Touch TypeCapacitive
• Touch Points5-Point
• Touch PortUSB Type-C
• BacklightAdjustable Brightness

The display orientation is portrait by default, 480×800 resolution (H×V). Change the software config for landscape display.

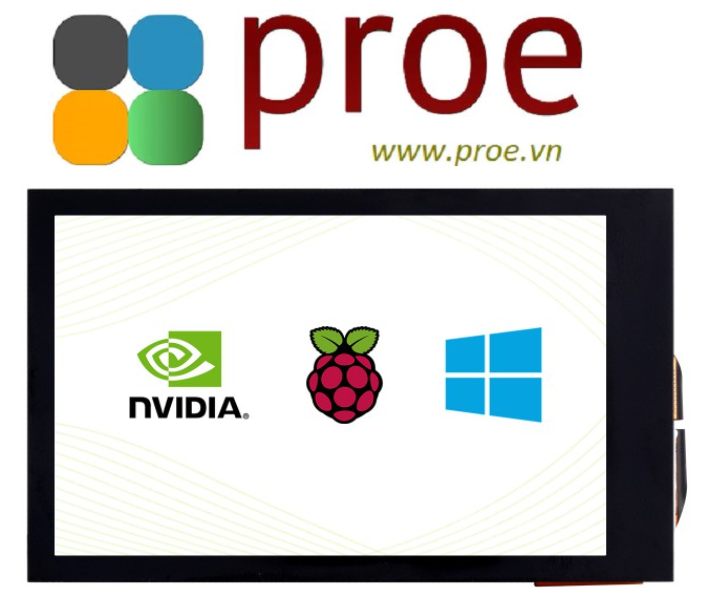

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS / Ubuntu / Kali / WIN10 IoT / Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu

PC

Supports Windows 11 / 10 / 8.1 / 8 / 7

Connection Examples

Working With Raspberry Pi 4B

Working With Raspberry Pi 3B+

Working With Jetson Nano

Working With Mini PC

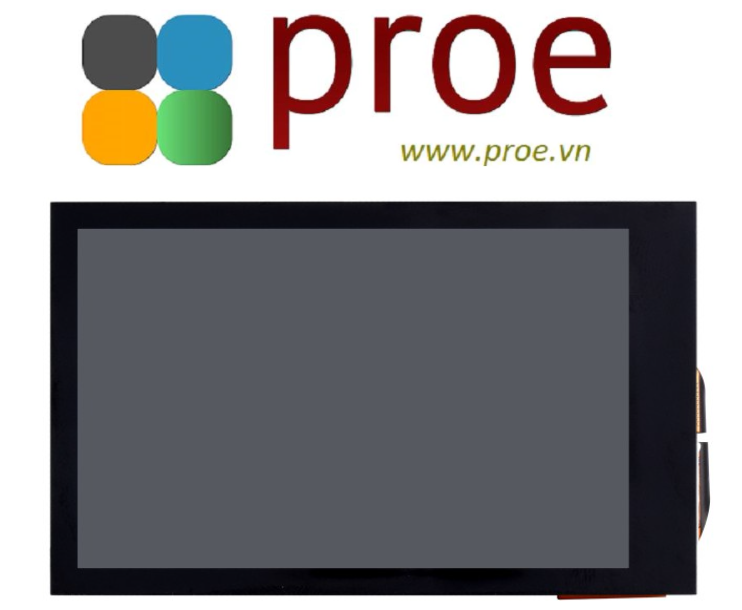

IPS Display Panel

Excellent Display Performance With 170° Wide Viewing Angle

Capacitive 5-Point Touch

up to 5-point touch, depending on the operating system

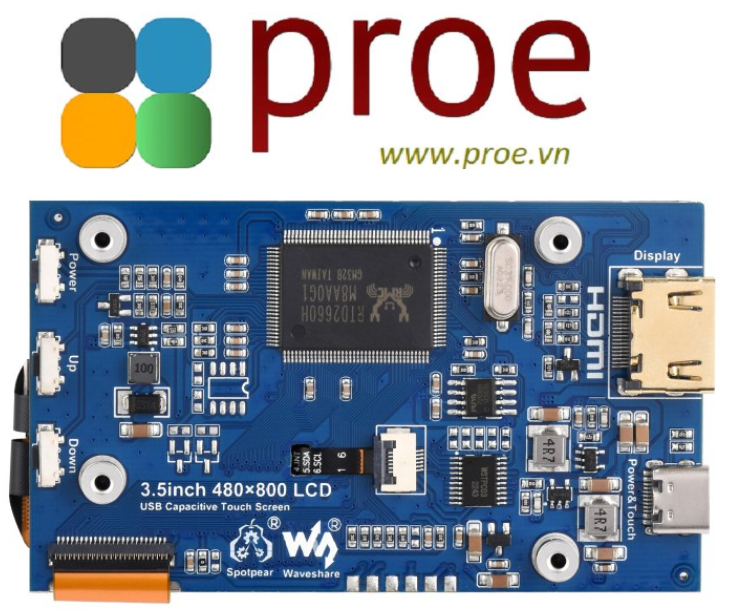

Design Features

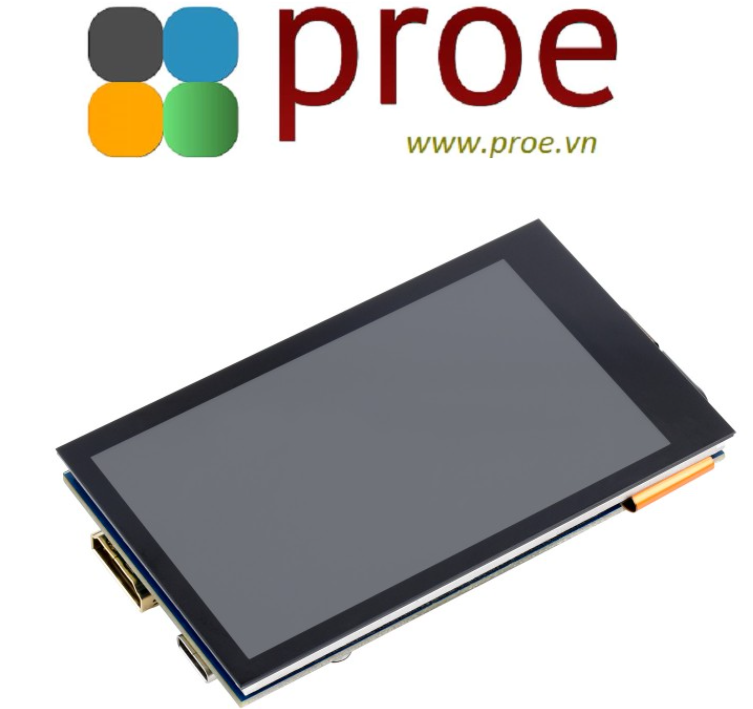

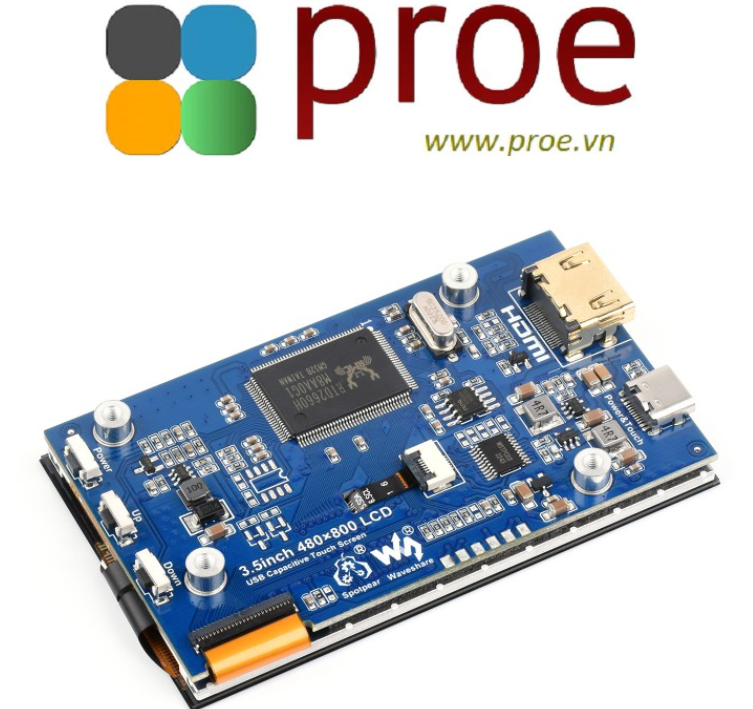

Product Show

Dimensions

Support Touch Screen Customization

Support The Following Ways To Customize The Touch Screen Display In Bulk Order

Over A Decade
Waveshare Grows With Display

* Waveshare has been focusing on display design for over 10 years.

Resources & Services

Wiki: www.waveshare.com/wiki/3.5inch_480x800_LCD
