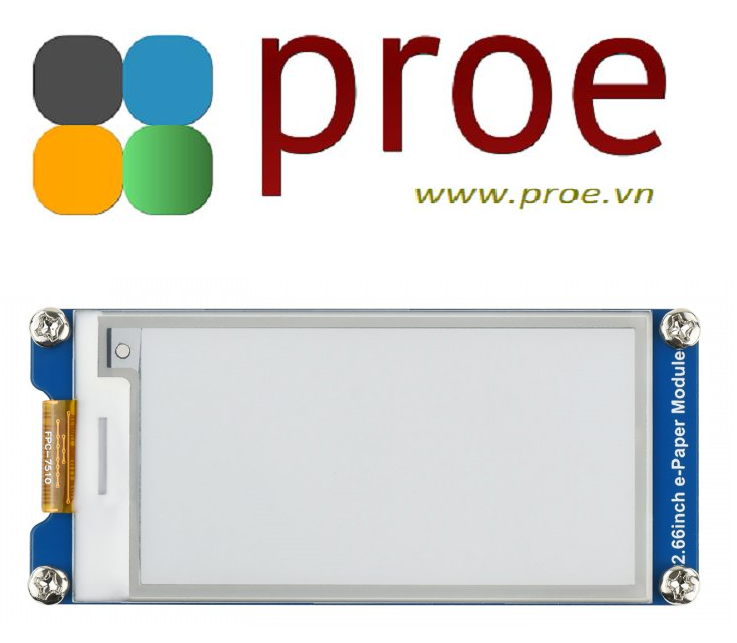

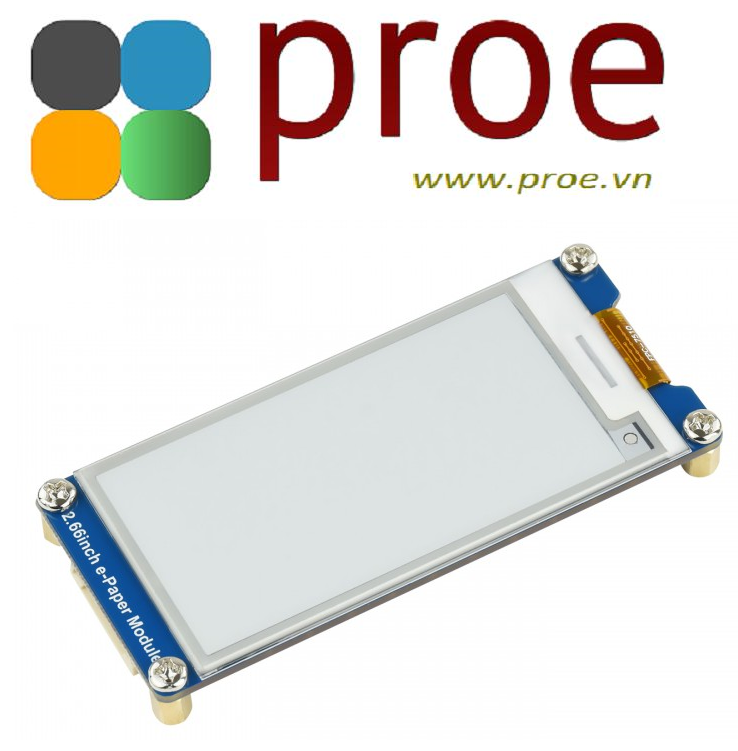

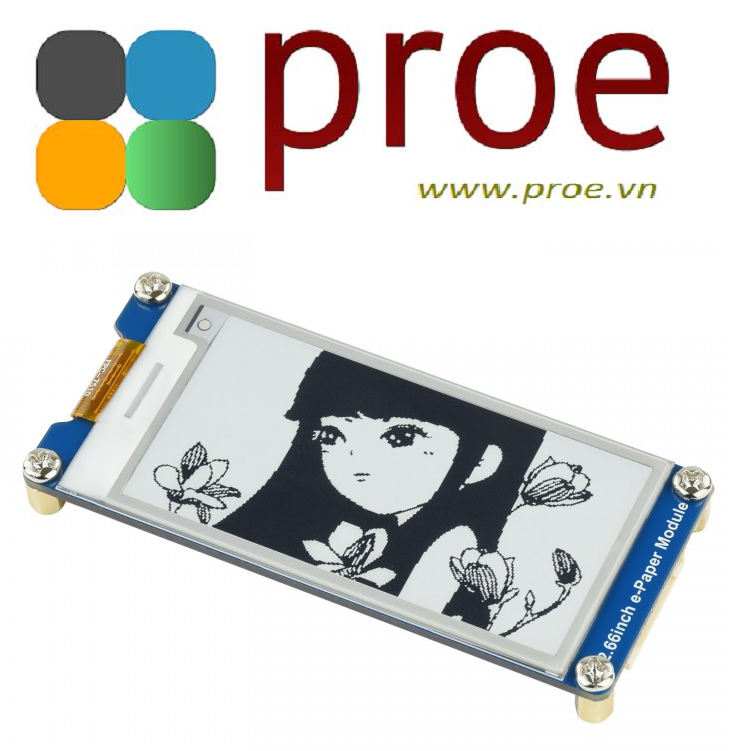

296×152, 2.66inch E-Paper E-Ink Display Module, Black / White

  • Mã sản phẩm: 2.66inch e-Paper Module
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
430.000₫
PACKAGE CONTENT

Weight: 0.025 kg

  1. 2.66inch e-Paper Module x1
  2. PH2.0 20cm 8Pin x1

1

2

DESCRIPTION


2.66inch E-Paper E-Ink Display Module, 296×152 Pixels, Black / White Dual-Color, SPI Interface

2.66" E-PAPER MODULE

Partial Refresh Support, Low Power, Wide Viewing Angle, Paper-Like Effect

Ideal for price tags, shelf labels, industrial instruments...


  • Size2.66"
  • Resolution296×152
  • Viewing Angle>170°
  • Display ColorBlack and White
  • Grey Scale2
  • CommunicationSPI
  • Display PanelE-paper
  • ExperiencePaper-like
  • EnvironmentAmbient Light Required
  • Display TypePassively Reflective
  • RefreshingPartial Refresh Support

Features At A Glance

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • SPI interface, for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
  • Onboard voltage translator, compatible with 3.3V / 5V MCUs
  • Comes with development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

OPERATING VOLTAGE 3.3V/5V GREY SCALE 2
INTERFACE 3-wire SPI, 4-wire SPI PARTIAL REFRESH TIME 0.3s
OUTLINE DIMENSIONS 37.0 × 83.5mm FULL REFRESH TIME 6s
DISPLAY SIZE 30.704 × 60.088mm REFRESH POWER 42.4mW(typ.)
DOT PITCH 0.202 × 0.203mm STANDBY CURRENT <0.01uA (almost none)
RESOLUTION 296 × 152 pixels VIEWING ANGLE >170°
DISPLAY COLOR black, white


Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Onboard SPI Control Interface

For Connecting With Controller Boards Like Raspberry Pi/Jetson Nano/Arduino/STM32

VCC 3.3V/5V
GND Ground
DIN SPI MOSI pin
CLK SPI SCK pin
CS SPI chip selection, low active
DC Data / Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output, high active

Onboard Voltage Translator

Compatible With 3.3V / 5V MCUs

Application Examples

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...
