2.7inch Passive NFC-Powered E-Paper Module, No Battery

  • Mã sản phẩm: 2.7inch NFC-Powered e-Paper Module
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
630.000₫
DESCRIPTION


2.7inch Passive NFC-Powered E-Paper Module, No Battery, Wireless Powering & Data Transfer, Android APP Provided

2.7" NFC-POWERED E-PAPER MODULE

Novel Passive NFC Technology, No Battery Required, No More Battery Life Trouble

Black and White Display Colors


  • Size2.7"
  • Resolution264×176
  • Viewing Angle>170°
  • Display ColorBlack and White
  • Grey Scale2
  • CommunicationPassive NFC
  • Display PanelE-paper
  • ExperiencePaper-like
  • EnvironmentAmbient Light Required
  • Display TypePassively Reflective
  • No BatteryEnergy Saving
  • Smartphone APPAndroid APP

Specifications

POWER SUPPLY Wireless GREY SCALE 2
DISPLAY COLOR Black / White REFRESH TIME 6s (data transfer time is not included)
DOT PITCH 0.217 × 0.217mm DISPLAY SIZE 57.29 × 38.19mm
RESOLUTION 264 × 176pixels OUTLINE DIMENSION 84.5 × 47.50mm
VIEWING ANGLE >170°


Wireless NFC-Powered Display Refreshing

Passive NFC Solution, No Battery Required, No Messy Wiring

How It Works

Wireless Powering & Data Transfer

To Refresh The Display Content, Use A Smart Phone With NFC Function, Or An NFC Reader, Close To The E-Paper, It'll Be Done In A Few Seconds

Refreshing Example

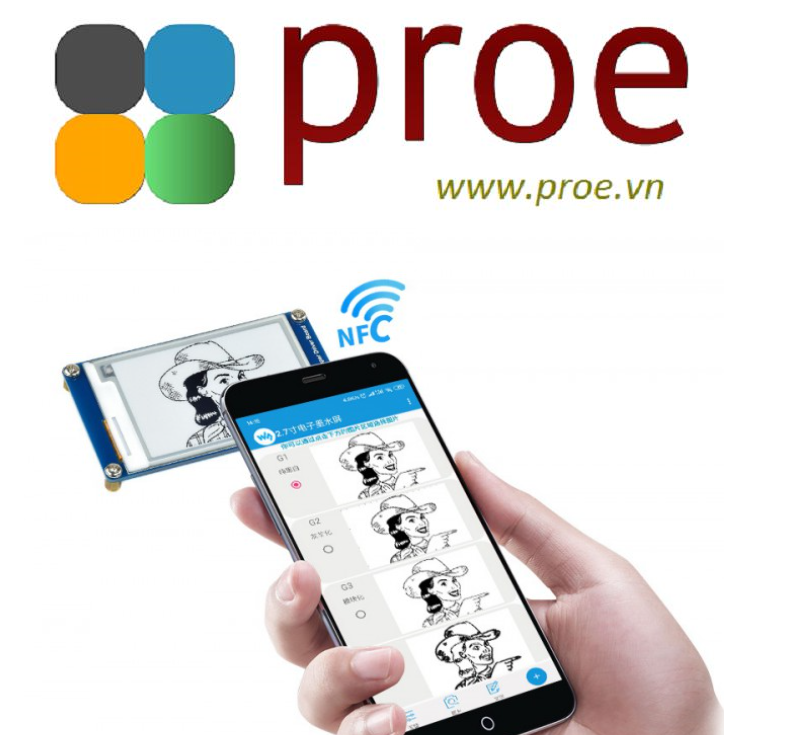

Refreshed By Smartphone, Comes With Android APP

Refreshed By NFC Reader

Recommended: ST25R3911B NFC Board

NFC smartphone or ST25R3911B NFC Board in the examples is NOT included.

Applications

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/2.7inch_NFC-Powered_e-Paper_Module

PACKAGE CONTENT

Weight: 0.021 kg

  1. 2.7inch NFC-Powered e-Paper Module x1
