2.13inch Touch E-Paper E-Ink Display for Raspberry Pi Zero, 250×122, ABS Case

PACKAGE CONTENT

Weight: 0.043 kg

1. 2.13inch Touch e-Paper HAT x1
2. ABS case x1
3. Screwdriver x1
4. Thermal tape x1
5. rubber feet 4PCS x1
6. Screws x2

2.13inch Touch E-Paper E-Ink Display For Raspberry Pi Zero, 250×122 Pixels, ABS Protection Case

2.13" TOUCH E-PAPER WITH CASE

Partial Refresh Support, Low Power, Wide Viewing Angle, Paper-Like Effect

Specialized for Raspberry Pi Zero / Zero W

• Size2.13"
• Resolution250×122
• Viewing Angle>170°
• Display ColorBlack and White
• Grey Scale2
• Touch TypeCapacitive
• Touch Points5-Points
• Touch PortI2C
• Touch PanelToughened Glass
• CommunicationSPI
• Power ConsumptionUltra Low
• Display DurationPersists without Power
• Display PanelE-paper
• ExperiencePaper-like
• Comfortably ReadingEye Care, No Bluelight
• EnvironmentAmbient Light Required
• Display TypePassively Reflective
• RefreshingPartial Refresh Support
• EnclosureABS Dull Polish

Features At A Glance

• 2.13" capacitive touch e-Paper display, 5-point touch, 250×122 pixels
• Supports waken up by user-defined gesture
• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi Zero / Zero W
• Comes with development resources and manual (examples for Raspberry Pi)

Specifications

Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

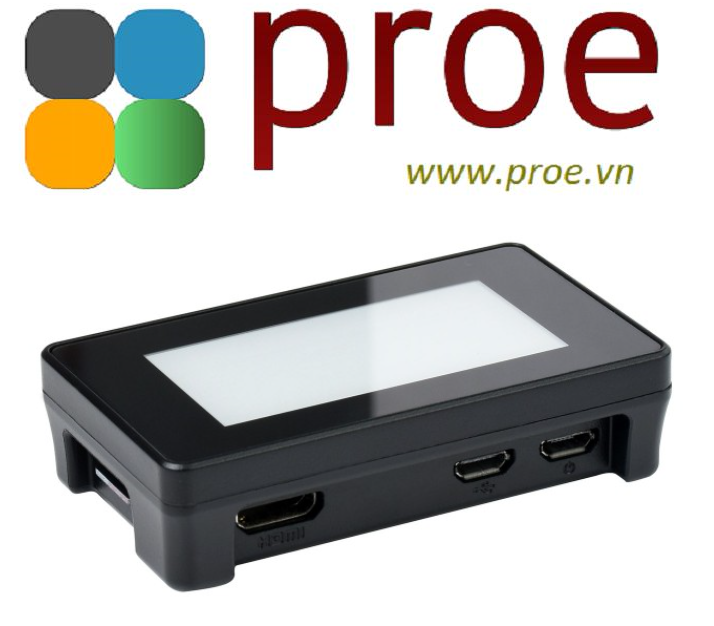

Fine Design, Precise Cut-Out

Highly Aligned Connectors, Rounded Corner Design, Slant Sides For Easily Standing

Heat Dissipation Holes On The Back

Combined With Thermal Tape, Effective Heat Dissipation

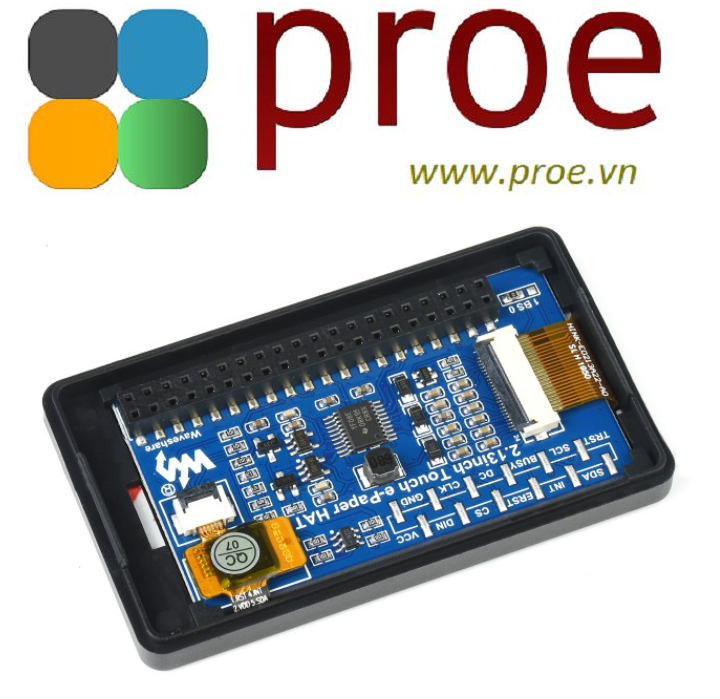

Standard Raspberry Pi 40PIN GPIO Header

Compatible With Raspberry Zero / Zero W

Raspberry Pi in the photo is NOT included.

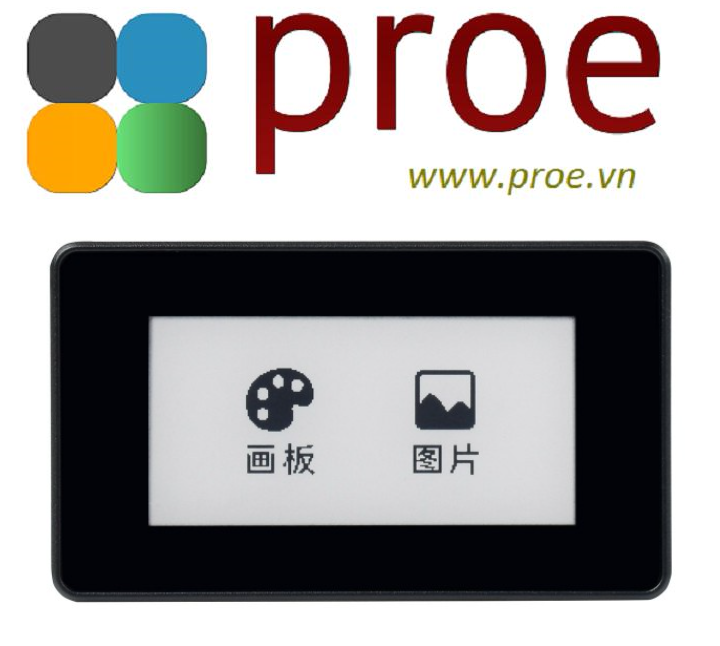

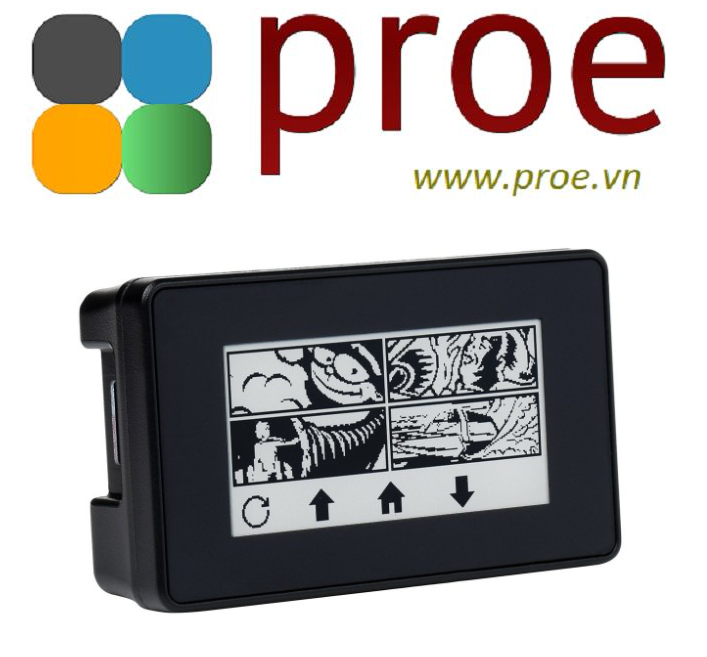

Demonstration

Pinout Definition

Outline Dimensions

How To Install

Resources & Services

WIKI: 2.13inch_Touch_e-Paper_HAT
