2.13inch e-Paper HAT (B)

  • Mã sản phẩm: 2.13inch e-Paper HAT (B)
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
650.000₫

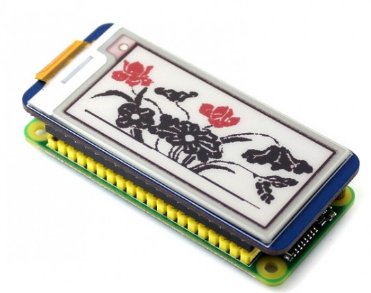

212x104, 2.13inch E-Ink display HAT for Raspberry Pi, three-color, SPI interface

Overview

This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 212x104 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

2.13inch e-Paper HAT (B) Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing

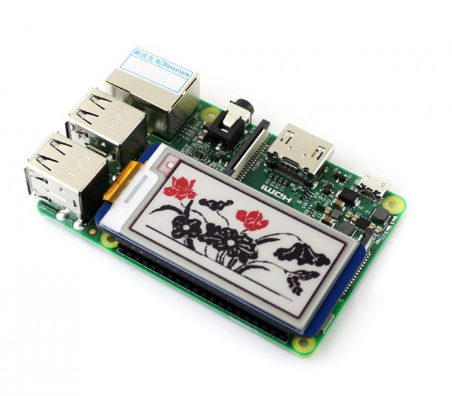

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.
  • Onboard voltage translator, compatible with 3.3V/5V MCUs
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

2.13inch e-Paper HAT (B) Specifications

  • Operating voltage: 3.3V/5V
  • Interface: 3-wire SPI, 4-wire SPI
  • Outline dimension: 65mm × 30.2mm
  • Display size: 23.71mm × 48.55mm
  • Dot pitch: 0.229 × 0.228
  • Resolution: 212 × 104
  • Display color: red, black, white
  • Grey level: 2
  • Full refresh time: 15s
  • Refresh power: 26.4mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°

Interface

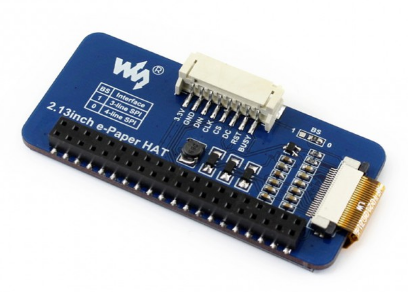

SYMBOL DESCRIPTION
VCC 3.3V/5V
GND Ground
NC NC
DIN SPI MOSI pin
CLK SPI SCK pin
CS SPI chip selection, low active
DC Data/Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output, low active

Dimensions

2.13inch e-Paper HAT (B) dimensions

Development Resources

Wiki : www.waveshare.com/wiki/2.13inch_e-Paper_HAT_(B)



PACKAGE CONTENT

Weight: 0.021 kg

  1. 2.13inch e-Paper HAT (B) x1
  2. RPi screws pack (2pcs) x1
  3. PH2.0 20cm 8Pin x1
