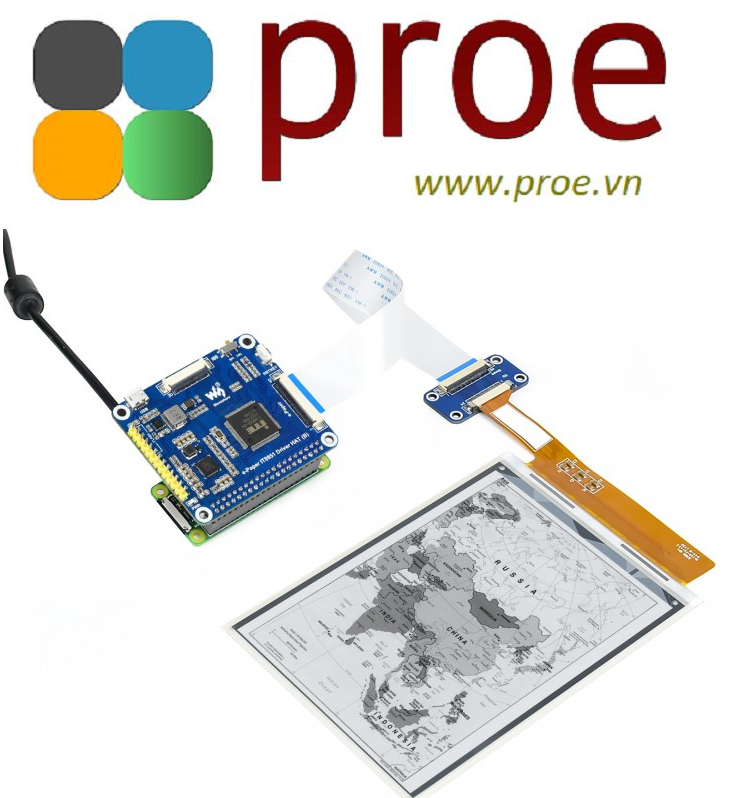

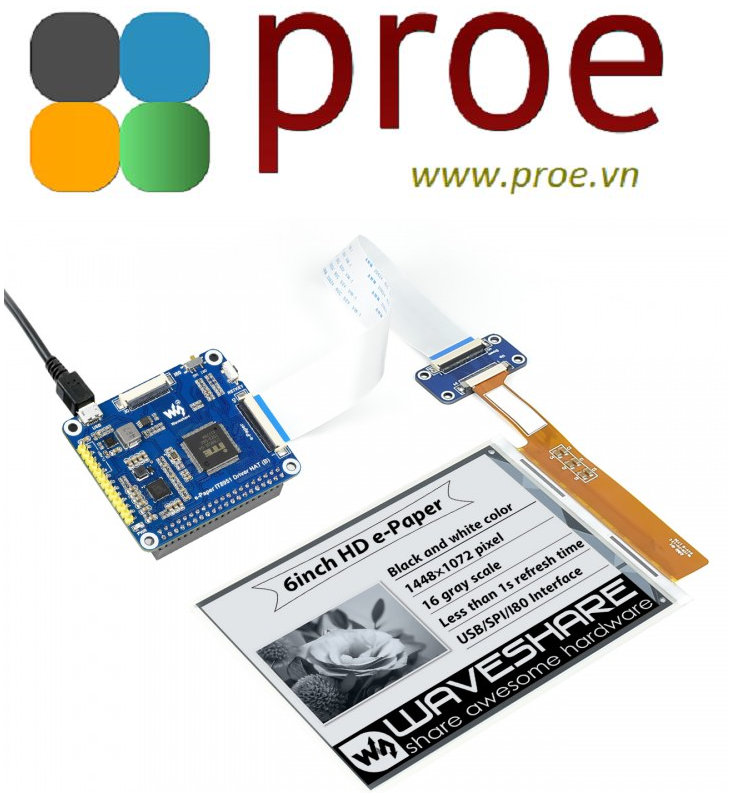

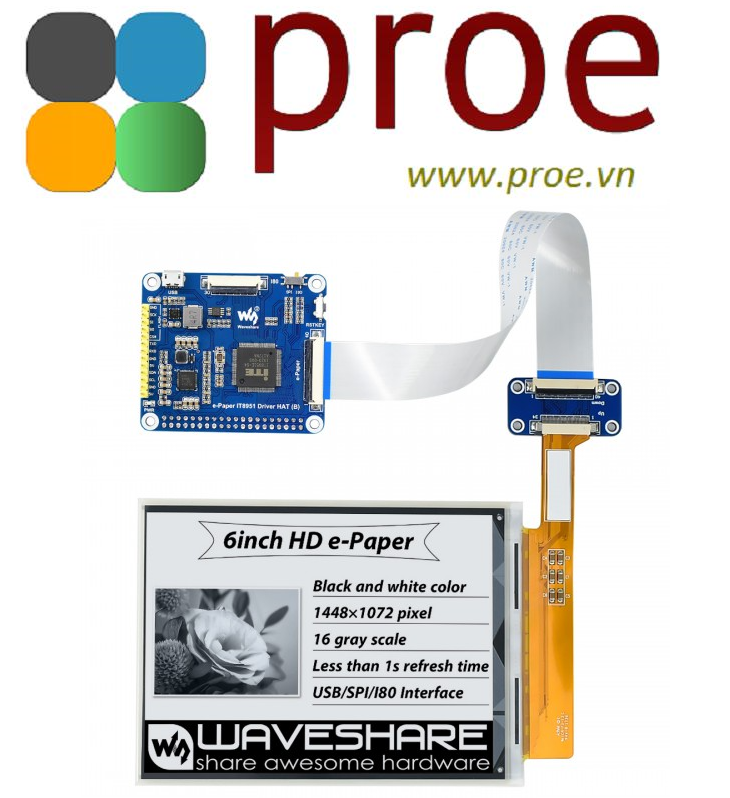

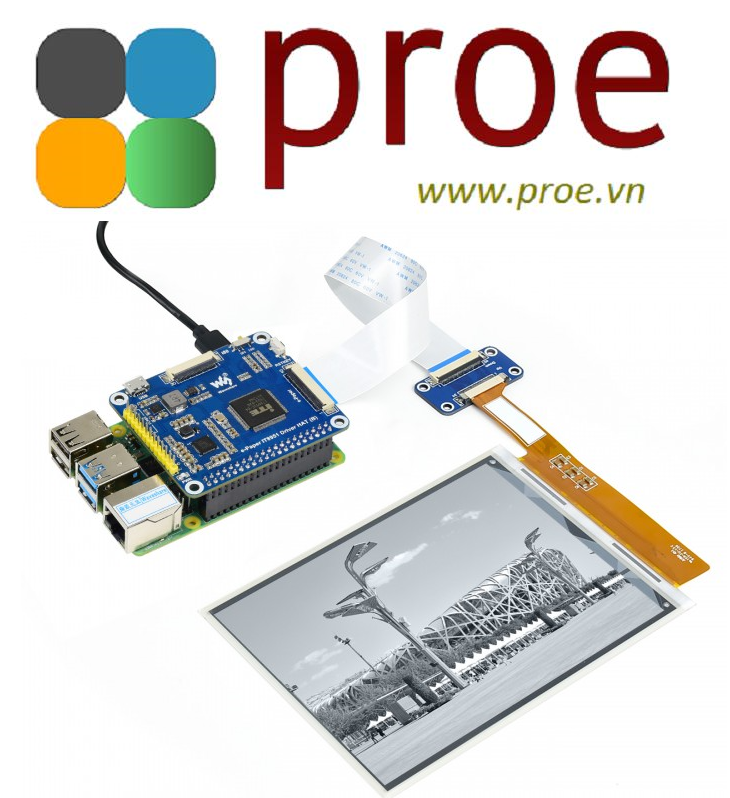

1448×1072 high definition, 6inch E-Ink display HAT for Raspberry Pi

PACKAGE CONTENT

Weight: 0.117 kg

Note: the Raspberry Pi is NOT included.

1. 6inch HD e-Paper x1
2. e-Paper IT8951 Driver HAT (B) x1
3. 6inch e-Paper Adapter (B) x1
4. 40PIN FFC (same side contact) x1
5. USB type A plug to micro B plug cable x1
6. PH2.0 20cm 8Pin x1
7. RPi screws pack (2pcs) x1

1

2+3+4

5

6

7



1448×1072 High Definition, 6inch E-Ink Display HAT For Raspberry Pi, Black/White, 16 Gray Scale

Overview

This is an E-Ink display HAT for Raspberry Pi, 6inch, 1448×1072 high definition, with embedded controller IT8951, communicating via USB/SPI/I80 interface, supports partial refresh.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

• No backlight, keeps displaying last content for a long time even when power down
• Low power consumption, basically power is only required for refreshing
• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
• USB/SPI/I80 interface, for connecting with host boards like Raspberry Pi/Nucleo, etc.
• Comes with development resources and manual (examples for Raspberry Pi/STM32)

Specifications

• Operating voltage: 5V
• Interface: USB/SPI/I80
• Outline dimension: 138.4mm × 101.8mm × 1.01mm
• Display size: 122.4mm × 90.6mm
• Dot pitch: 0.0845mm × 0.0845mm
• Resolution: 1448 × 1072
• Display color: black, white
• Gray scale: 2-16 (1-4 bit)
• Full refresh time: <1s
• Total refresh power: 0.88W(typ.)
• Total standby power: 0.3W(typ.)
• Viewing angle: >170°

SPI Pinouts

Example

e-Paper IT8951 Driver HAT (B) Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/6inch_HD_e-Paper_HAT
