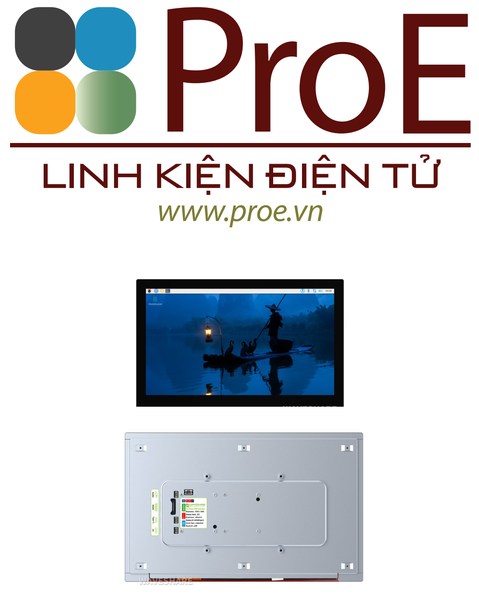

13.3inch FHD Monitor (US)

Wiki: www.waveshare.com/wiki/13.3inch-FHD-Monitor

13.3inch High Resolution HDMI Capacitive Touch Display, 10-Point Touch, 1920 × 1080, Toughened Glass Panel, Type-C/HDMI Display Interface, Full Metal Back Cover

13.3inch FHD Monitor

High Resolution | Multi-Point Touch | Full Color

• Size13.3″
• Resolution1920 × 1080
• Display InterfaceHDMI / Type-C
• Display PanelIPS
• Viewing Angle178°
• Touch TypeCapacitive
• Touch Points10-Point
• Touch PortUSB Type-C
• Touch PanelToughened Glass
• OSD MenuBrightness/Contrast
• Audio Output 13.5mm Jack
• Audio Output 2Speaker Header
• BrightnessDDC/CI Control
• EnclosureFull Metal Back Cover
• GamingXbox360 / SWITCH
• SmartphoneHuawei/Samsung/OPPO...

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Series

Supports Ubuntu, single point touch, driver free

Supports Jetson Nano / TX2 / Xavier NX / Orin series boards

PC

Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free

Smartphone

Huawei, Samsung...(wired projection)

Game Console

Xbox360, Switch...

Connection Examples

Working with Full-Featured Type-C PC

Working with Full-Featured Type-C Smartphone

Working with Raspberry Pi 5 / 4B

Working with Raspberry Pi 3B+

Working with Jetson series board

• Please make sure that the smartphone or PC itself features a full-featured Type-C interface
• For reference only, the above controller boards or hosts are NOT included

How to Install

Prepare the accessories as shown above, here we take Raspberry Pi 5 as an example.

Step 1:
Connect the cables ①, ④, and ⑤ to the connectors on the back side of LCD display, shown in the picture above.

Step 2:
Install the Raspberry Pi 5 on the back cover via the screws included in the package.

Step 3:
Connect the HDMI adapter ② to the cable ① first (choose HDMI adapter ② or ③ according to your Raspberry Pi model), then insert it into the Raspberry Pi Micro HDMI port; Connect the cable ④ to the USB port of the Pi and connect the cable ⑤ to the GPIO 5V, 5V, GND pin header as shown above.

Step 4:
Complete the assembly as shown in the picture and ensure all connections are correct, then connect to a 5V power supply and power on.

* for reference only, the Raspberry Pi 5 is not included.

Full-featured Type-C interface

Supports audio and video transmission, plug and play. One cable is just enough for either computer dual-screen OR Smartphone wired projection

Computer Dual Screens For Collaborative Processing

One screen for work, one screen for study, without interfering with each other

* for reference only, please refer to the Package Content for detailed part list

IPS Wide Viewing Angle

IPS panel enhances the display and color performance of the monitor. 178° wide viewing angle, whether it is viewed vertically or horizontally, the display effect is still clear

Supports DDC/CI backlight adjustment

Smooth Gaming Experience

A good partner for the game consoles, play video games with a wider and clearer vision. Supports Xbox360 / PS4 / SWITCH etc. (Display and Sound Only)

10-Point Capacitive Touch

1. up to 10-point touch, depending on the operating system
2. up to 6H hardness toughened glass panel

Interface Introduction

1. 5V Type-C power supply
2. Full-featured Type-C port
3. Standard HDMI port
4. 3.5mm audio jack
5. 3PIN PH2.0 power connector
6. 4PIN PH1.25 speaker header

7. HDMI FPC connector
8. OSD button board header
9. 4pin PH1.25 touch header
10. Raspberry Pi mounting holes
11. 100×100mm M4 VESA mounting holes

Outline Dimensions

Support touch screen customization

Support the following ways to customize the touch screen display in bulk order

Weight: 1.591 kg

1. 13.3inch FHD Monitor × 1
2. OPTIONS 5V 3A Type-C power supply × 1
3. Type-C dual-plug cable ~1m × 1
4. HDMI flat cable ~1m × 1
5. USB Type-A to USB Type-C cable ~1m × 1
6. Cleaning cloth × 1
7. Micro HDMI adapter × 1
8. HDMI adapter × 1
9. Button board × 1
10. 3PIN cable × 1
11. HDMI to Micro HDMI adapter × 1
12. HDMI-Cable-200mm (2PCS) × 1
13. 1.27H 4PIN button board cable × 1
14. USB Type-A to PH1.25 4P cable × 1
15. Screws pack × 1
