12.3inch HDMI LCD

Package Content

Weight: 1.223 kg

1. 12.3inch HDMI LCD x1
2. HDMI cable x1
3. USB-A to micro-B cable x1
4. HDMI Adapter (B) x1
5. USB Adapter (B) x1
6. HDMI Adapter (C) x1
7. USB Adapter (C) x1
8. 4PIN wire ~9CM x1
9. Button board x1
10. 12V 3A power adapter x1
11. Screws pack x1

1

2

3

4

5

6

7

8

9

10

11

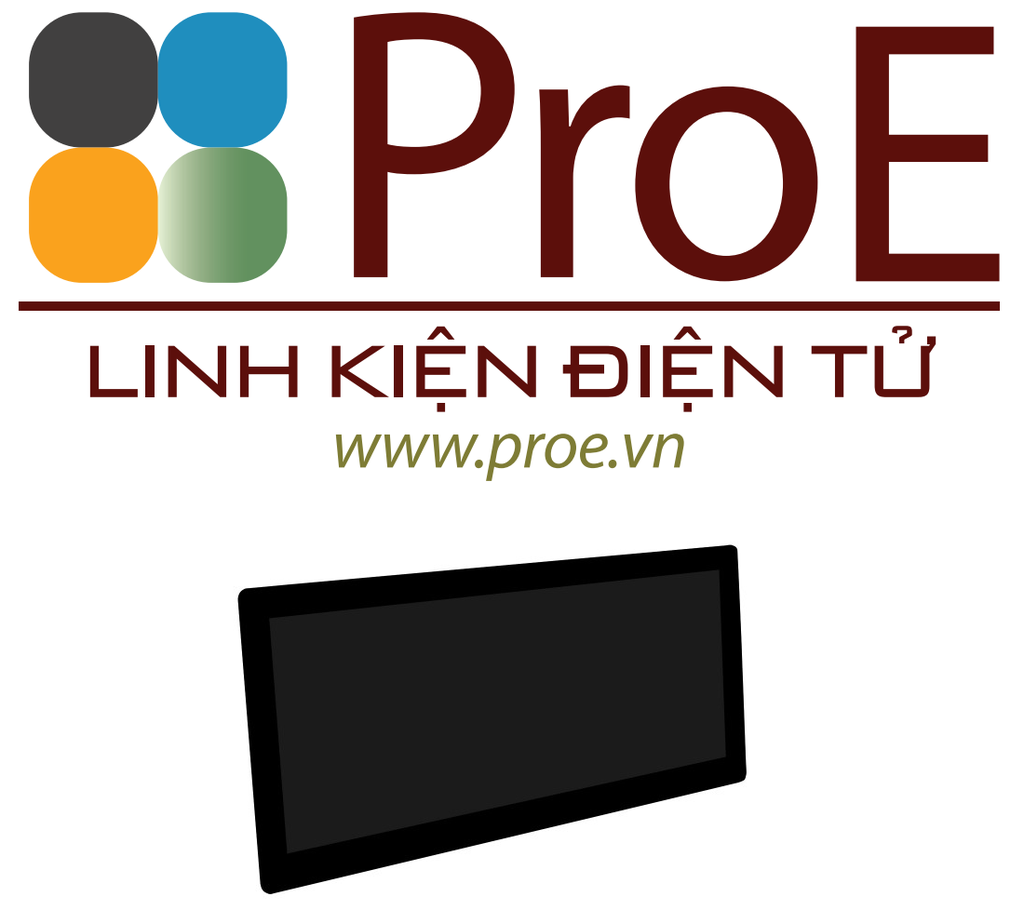

12.3inch Capacitive Touch Screen LCD, 600 cd/m², 1920×720, HDMI, IPS, Toughened Glass Panel

12.3″ HDMI Touch Display

• Size12.3″
• Resolution1920×720
• Display InterfaceHDMI
• Display PanelIPS
• Viewing Angle178°
• Touch TypeCapacitive
• Touch Points10-point
• Touch PortUSB
• Touch PanelToughened Glass
• OSD MenuBrightness/Contrast
• Audio Output13.5mm Jack
• Audio Output24PIN Header
• Brightness600 cd/m²
• Touch Panel TechOptical Bonding
• Temperature Range-20~70°C

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Series

Supports Jetson Nano / TX2 / Xavier NX / Orin series boards

Supports Ubuntu, single point touch, driver free

PC

Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free

Connection Examples

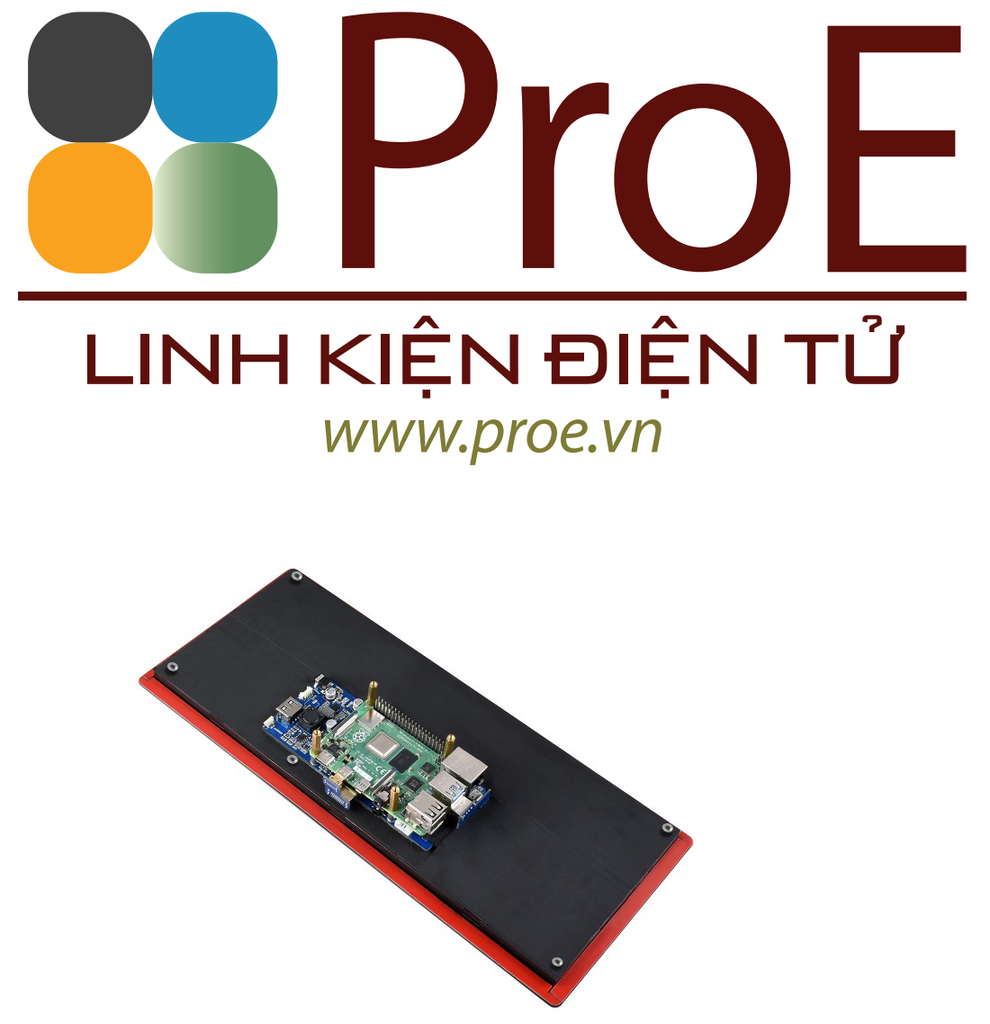

Working with Raspberry Pi 5

Working with Raspberry Pi 4

Working with Raspberry Pi Pi 3B+

Working with AI Computer Jetson Nano

Working with mini PC

Working with Tinker Board 2

Display

IPS Panel

Touch Control

1) up to 10-point touch, depending on the operating system. 2) up to 6H hardness toughened glass panel. 3) optical bonding, display well and dustproof

Application examples

Design features

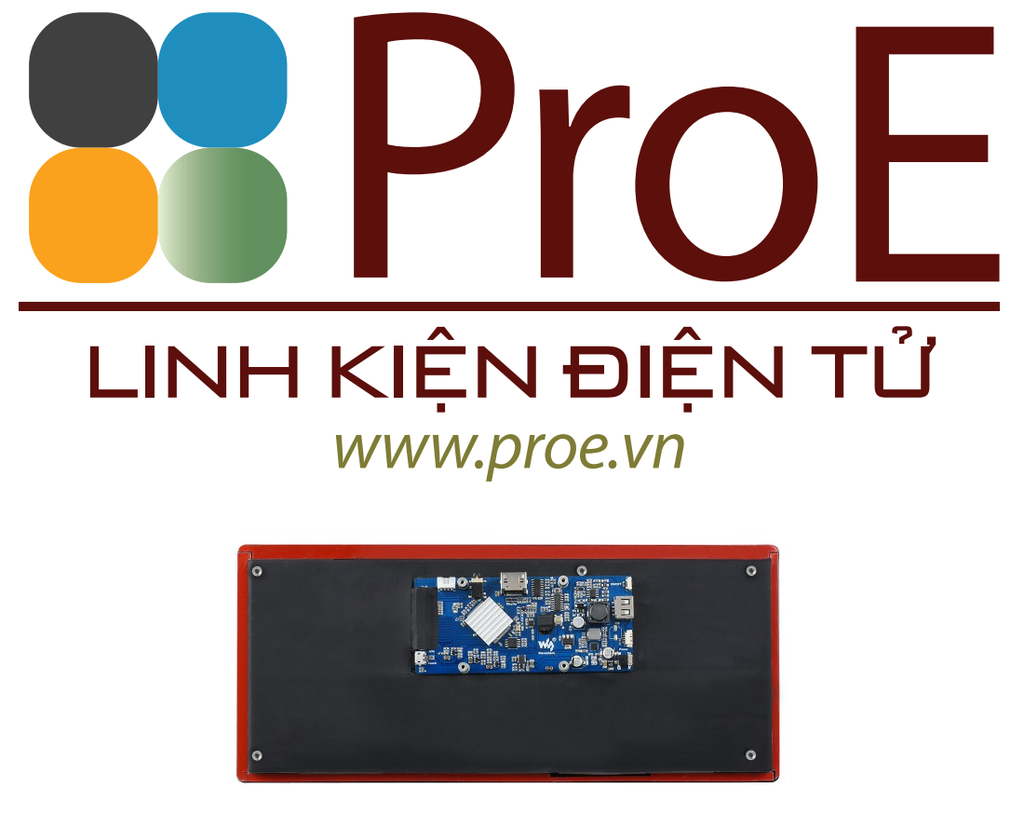

Appearance and Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/12.3inch_HDMI_LCD
