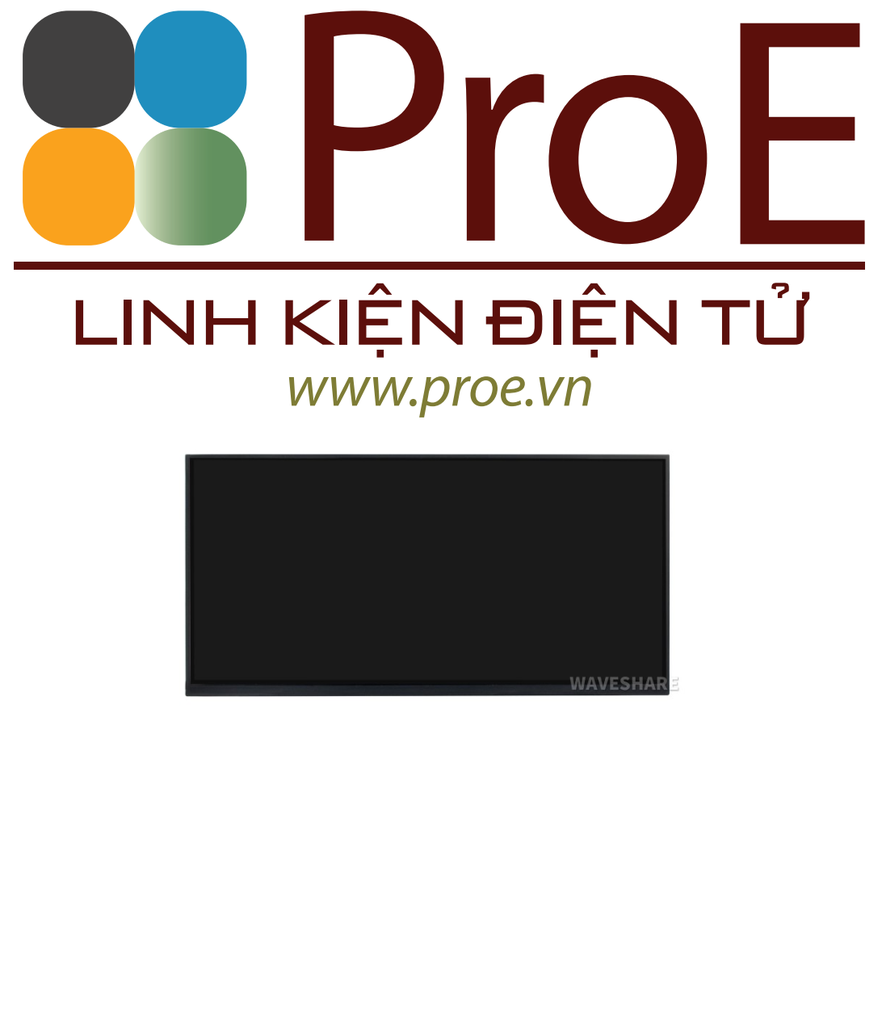

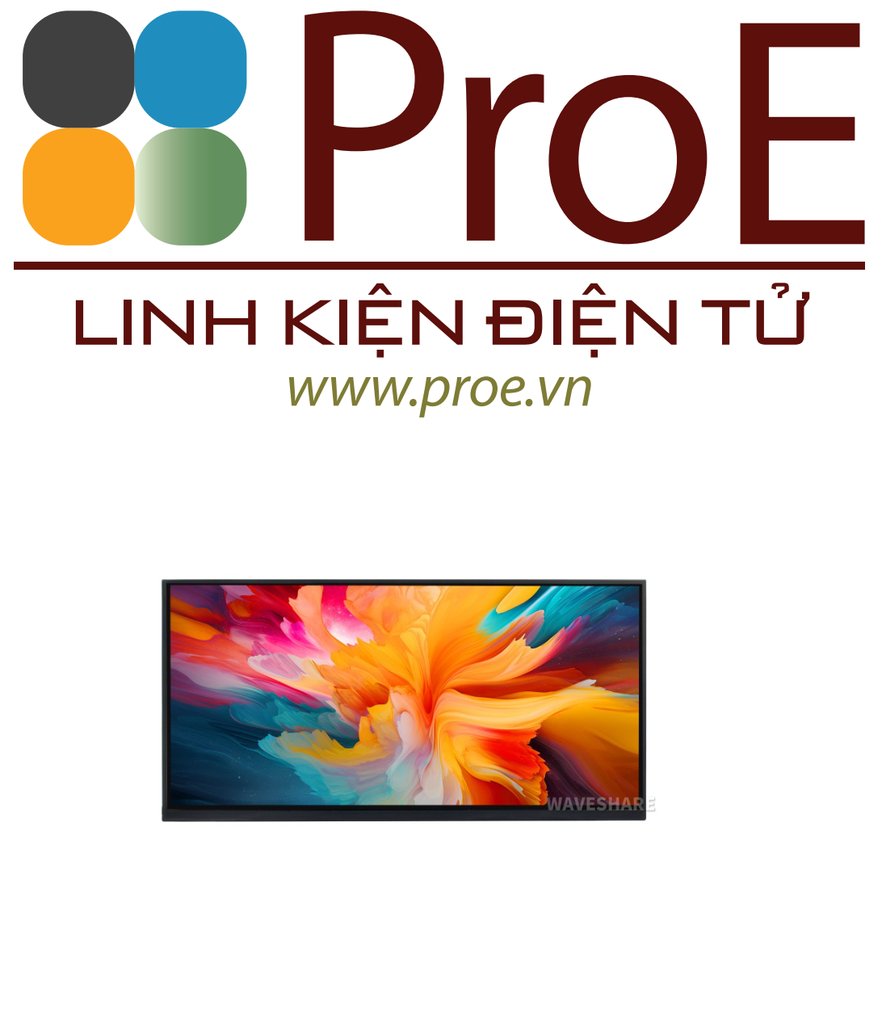

11.6inch 1768x828 LCD

Package Content

Weight: 0.847 kg

1. 11.6inch 1768×828 LCD x1
2. HDMI flat cable ~1m x1
3. USB-A to Type-C cable ~1m x1
4. Type-C dual-plug cable x1
5. Triangular stand x1
6. HDMI to Micro HDMI adapter x1
7. Cleaning cloth x1
8. Button board x1
9. 1.27H 4PIN button board cable x1
10. Capacitive touch pen x1

11.6inch Capacitive Touch Display, In-Cell Technology, 1768×828, 178° Wide Viewing Angle, HDMI/Type-C Display Interface, IPS Panel, 10-Point Touch

11.6″ Capacitive Touch Display

High Resolution | Multi-Point Touch | Full Color

• Size11.6″
• Resolution1768×828
• Display InterfaceHDMI/Type-C
• Display PanelIPS
• Viewing Angle178°
• Touch TypeCapacitive
• Touch Points10-Point
• Touch PortUSB Type-C
• Touch PanelIn-Cell
• OSD MenuBrightness/Contrast
• BrightnessSupports DDC/CI control
• Brightness300cd/m²
• Audio Output 13.5mm Jack
• Audio Output 24PIN Header
• SmartphoneWired Projection

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Series

Supports Jetson Nano / TX2 / Xavier NX / Orin series boards

Supports Ubuntu, single point touch, driver free

PC

Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free

Smartphone

Huawei, Samsung, OPPO...(wired projection)

Connection Examples

Working with Raspberry Pi 5

Working with Jetson Series Board

Working with mini PC

Working with laptop

Working With Full-Featured Type-C Smartphone

• Please make sure that the laptop or smartphone itself features a full-featured Type-C interface
• For reference only, the above controller boards or hosts are NOT included

IPS Display Panel

Excellent Display Performance With 178° Wide Viewing Angle

Capacitive 10-Point Touch

1. up to 10-point touch, depending on the operating system
2. In-Cell touch technology, built-in touch sensor for a lighter and thinner design

In-Cell Touch Panel Technology

Featuring a simplified structure with Ultra-narrow bezel and Slim thickness, while offering rapid response. Supports customization of glass cover shape and Logo

Normal Display

In-Cell Touch Display

Supports DDC/CI backlight adjustment

Full-featured Type-C interface

Support audio and video transmission, plug and play,
instantly zoom in the smartphone screen
(For supported mobile phone models, please contact customer service)

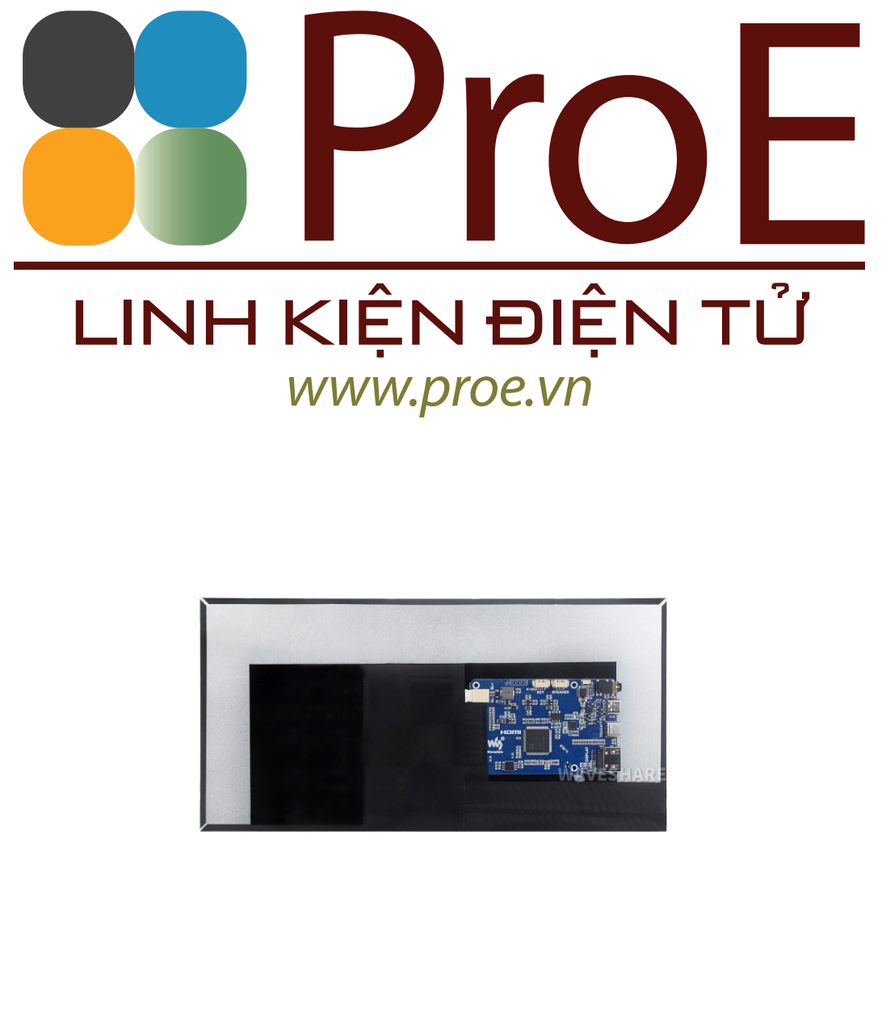

Interface Introduction

Dimensions

Support touch screen customization

Support the following ways to customize the touch screen display in bulk order

Over a decade
Waveshare grows with display

* Waveshare has been focusing on display design for over 10 years.

Resources & Services

Wiki: www.waveshare.com/wiki/11.6inch_1768×828_LCD
