10.1inch Capacitive Touch Display, Wide Color Gamut, 1280×800, Optical Bonding Toughened Glass Panel, HDMI/Type-C Display Interface

10.1inch Capacitive Touch Display, Wide Color Gamut, 1280×800, Optical Bonding Toughened Glass Panel, HDMI/Type-C Display Interface, 10-Point Touch, Aluminum Alloy Case

10.1″ Wide Color Gamut Touch Display

High Resolution | Multi-Point Touch | Full Color

• Size10.1″
• Resolution1280×800
• Display InterfaceHDMI/Type-C
• Display PanelIPS
• Viewing Angle178°
• Touch TypeCapacitive
• Touch Points10-Point
• Touch PortUSB Type-C
• Touch PanelToughened Glass
• Touch Panel TechOptical Bonding
• OSD MenuBrightness/Contrast
• BrightnessSupports DCC/CI
  control
• Audio Output3.5mm Jack
• SoundHi-Fi Speaker
• EnclosureAluminum Alloy
• SmartphoneHuawei/Samsung/OPPO...
• VESA Wall Mount75 × 75mm

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali/ WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu, single point touch, driver free

VisionFive2

Supports Debian, single point touch, driver free

PC

Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free

Smartphone

Huawei, Samsung, OPPO, LG...(wired projection)

Connection Examples

Working With Raspberry Pi 4B

Working With Raspberry Pi 3B+

Working With Raspberry Pi Zero 2 W

You need to prepare additional mini HDMI adapter and USB cable

Working With Jetson Nano

Working With PC *

Working With Smartphone *

• Please make sure that the smartphone or PC itself features full-featured Type-C interface
• For reference only, the above controller boards or hosts are NOT included

IPS Display Panel

Excellent Display Performance With 178° Wide Viewing Angle

Wide Color Gamut LED Technology

Wider Color Gamut, More Pure Chroma

Color Gamut Of This Display Is Up To NTSC 82%, Chroma Increases 58.3%, Makes The Color More Pure, More Vivid

Capacitive 10-Point Touch

1. up to 10-point touch, depending on the operating system
2. up to 6H hardness toughened glass panel
3. Optical Bonding, display well and dustproof

Supports DDC/CI Brightness Adjustment

Full-Featured Type-C Interface

Audio And Video Transmission In One Connection, Plug And Play,
Instantly Zoom In The Smartphone Screen
(For Supported Mobile Phone Models, Please Contact Customer Service)

Computer Dual Screen For Collaborative Processing

One Screen For Work, One Screen For Entertainment, Without Interfering With Each Other

Dual-Track Speaker

Ferrite Hi-Fi Speaker, Larger Volume, Wider Sound Range, Better Sound Quality

Comes With Triangular Stand

VESA Mounting Support

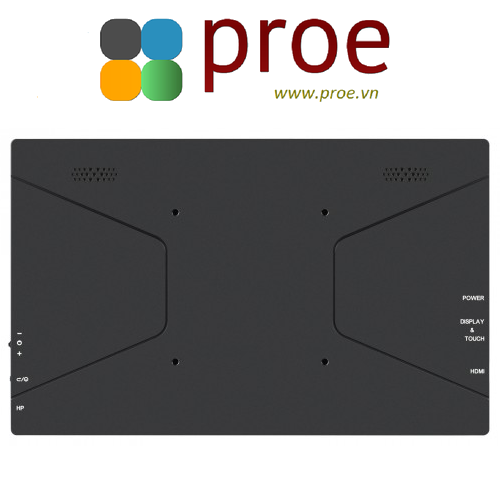

Interface Introduction

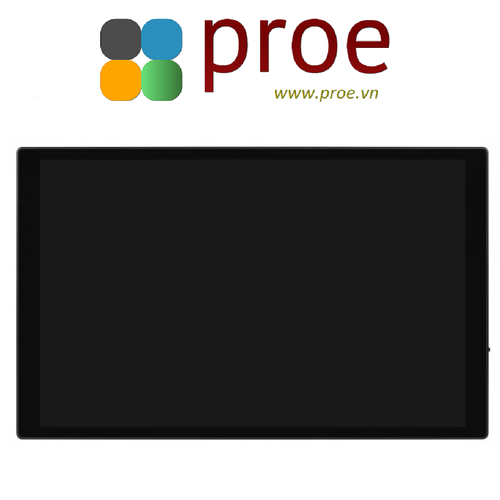

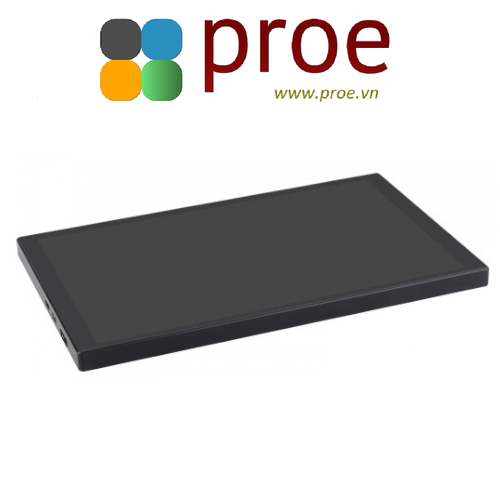

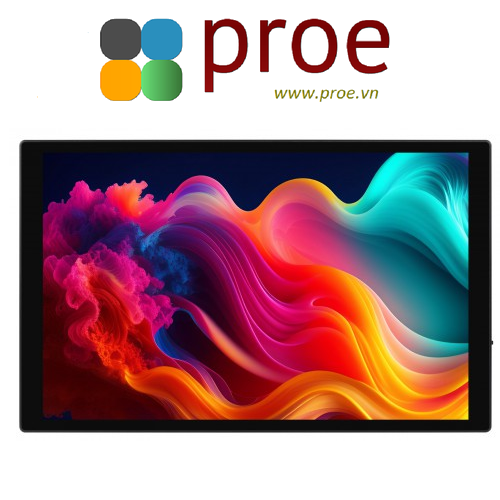

Product Show

Dimensions

Support Touch Screen Customization

Support The Following Ways To Customize The Touch Screen Display In Bulk Order

Over A Decade
Waveshare Grows With Display

Wiki: www.waveshare.com/wiki/10.1HP-CAPLCD_Monitor

PACKAGE CONTENT
Weight: 0.809 kg

1. 10.1HP-CAPLCD Monitor ×1
2. HDMI flat cable ~1m ×1
3. HDMI to Micro HDMI Adapter ~1m ×1
4. USB-A to USB-C cable ~1m ×1
5. USB-C to USB-C cable ×1
6. Triangular stand ×1
