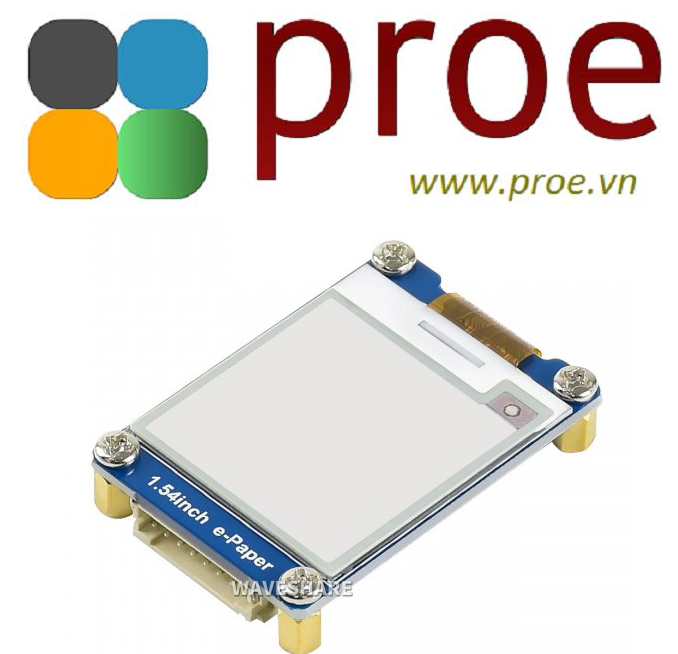

1.54inch e-Paper Module (B)

  • Mã sản phẩm: 1.54inch e-Paper Module (B)
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
450.000₫
DESCRIPTION


200x200, 1.54inch E-Ink Display Module, Three-Color, SPI Interface

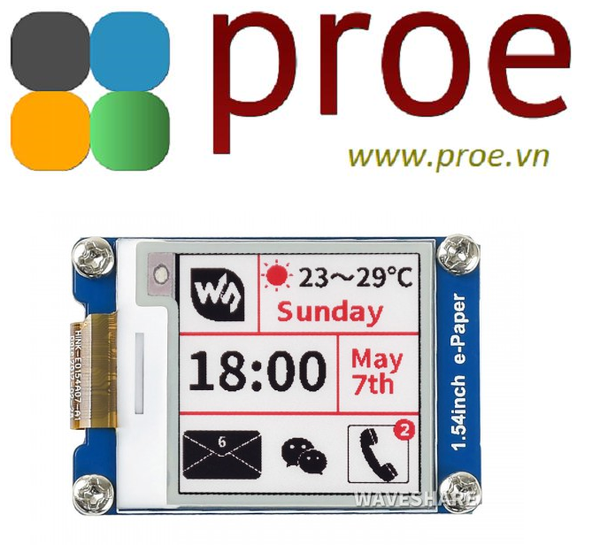

Overview

This is an E-Ink display module, 1.54inch, 200x200 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • SPI interface, for connecting with controller boards like Raspberry Pi/Nucleo, etc.
  • Onboard voltage translator, compatible with 3.3V/5V MCUs
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/STM32)

Specifications

  • Operating voltage: 3.3V/5V
  • Interface: 3-wire SPI, 4-wire SPI
  • Outline dimension: 48mm × 33mm
  • Display size: 27.6mm × 27.6mm
  • Dot pitch: 0.138 × 0.138
  • Resolution: 200 × 200
  • Display color: red, black, white
  • Grey level: 2
  • Full refresh time: 8s
  • Refresh power: 26.4mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°

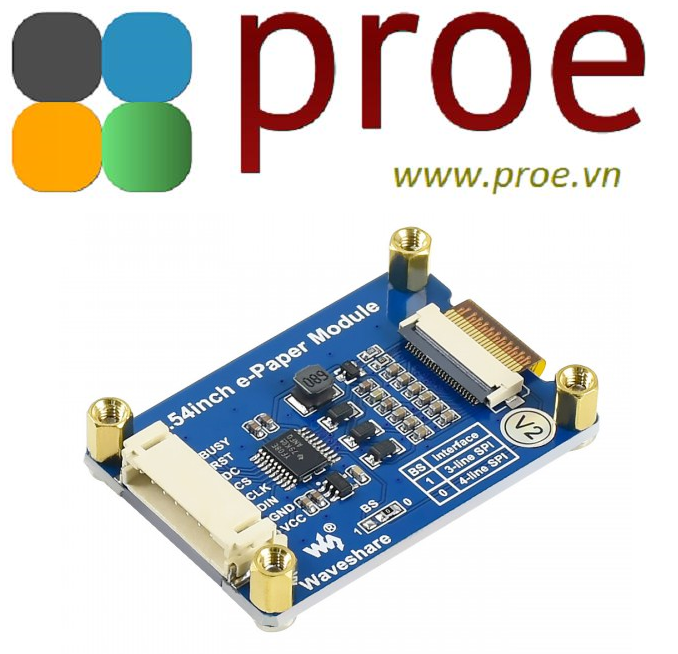

Interface

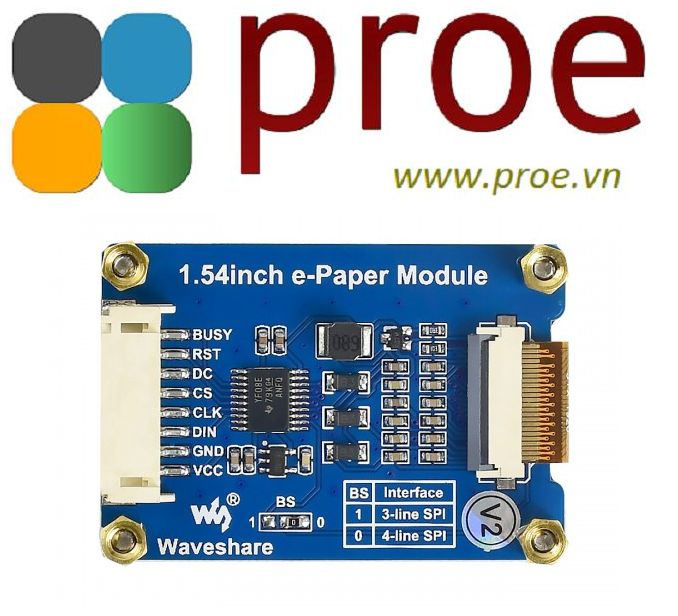

SYMBOL DESCRIPTION
VCC 3.3V/5V
GND Ground
DIN SPI MOSI pin
CLK SPI SCK pin
CS SPI chip selection, low active
DC Data/Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output, low active

Dimensions

1.54inch e-Paper Module dimensions

Development Resources

Wiki : www.waveshare.com/wiki/1.54inch_e-Paper_Module_(B)

PACKAGE CONTENT

Weight: 0.024 kg

  1. 1.54inch e-Paper Module (B) x1
  2. PH2.0 20cm 8Pin x1
