VOXL 2

VOXL® 2 Next Generation Blue UAS 2.0 Autonomous AI Autopilot

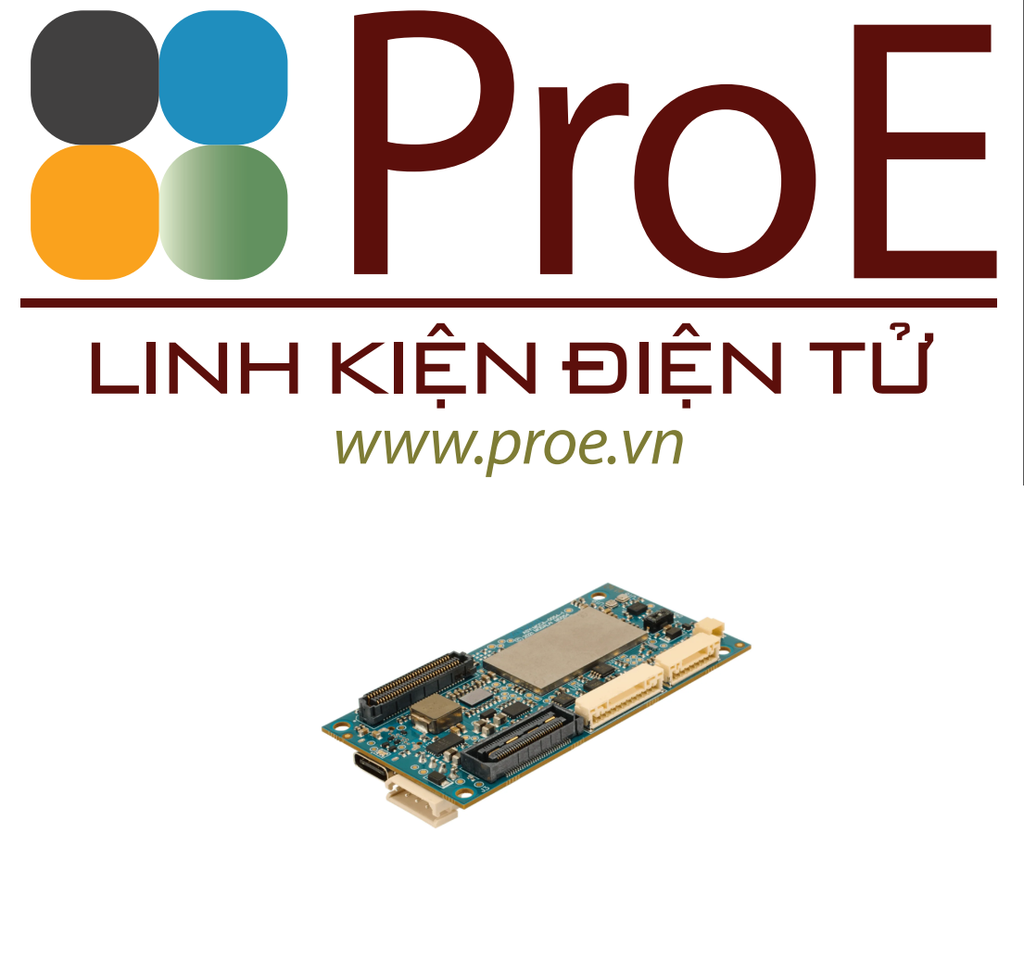

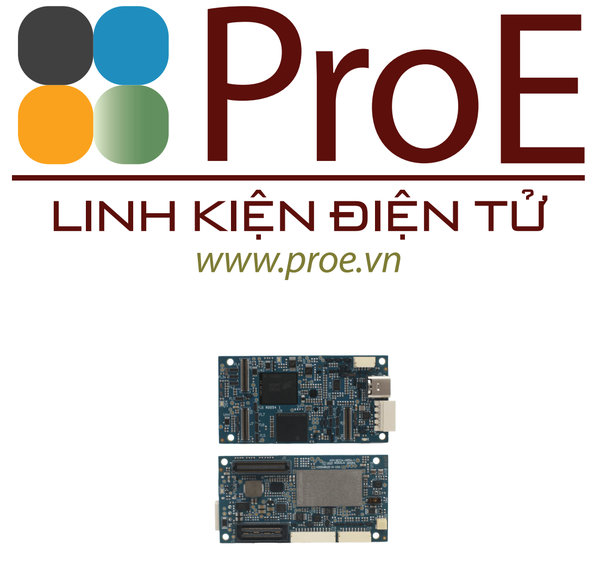

VOXL 2 is the next generation Blue UAS Framework integrated AI Companion Computer and Flight Controller powered by Qualcomm Flight™ RB5. At only 16g, VOXL 2 is the smallest single-board AI autopilot to date with premium tier processing from the Qualcomm QRB5165, a PX4 flight controller, advanced onboard AI up to 15+ TOPS and 5G connectivity. VOXL 2 has a robust ecosystem of pre-integrated image sensor modules and modems.

Ready to Use Development Tools

VOXL 2 Features

• 16 grams, 70x36mm SWAP-optimized design
• Powered by Qualcomm® QRB5165: 8 cores up to 3.091 GHz, 8GB LPDDR5
• 15 TOPS AI embedded Neural Processing Unit (NPU)
• Integrated flight controller on DSP with TDK® ICM-42688 IMU and ICP-10111 Barometer
• 5G, 4G/LTE, WiFi, Microhard add-on connectivity

Software Features

• PX4, ArduPilot, ROS 1 / 2, Debian 9 (buster), OpenCV 4.4, MAVROS, MAVSDK
• Open Source Linux kernel, cross-compilers
• Docker build environment for CPU, GPU (OpenCL) and DSP (Hexagon SDK) heterogeneous computer vision and deep learning processing

Technical Details

Documentation

Product Brief + System Architecture

Feature Matrix

Compatible Accessories

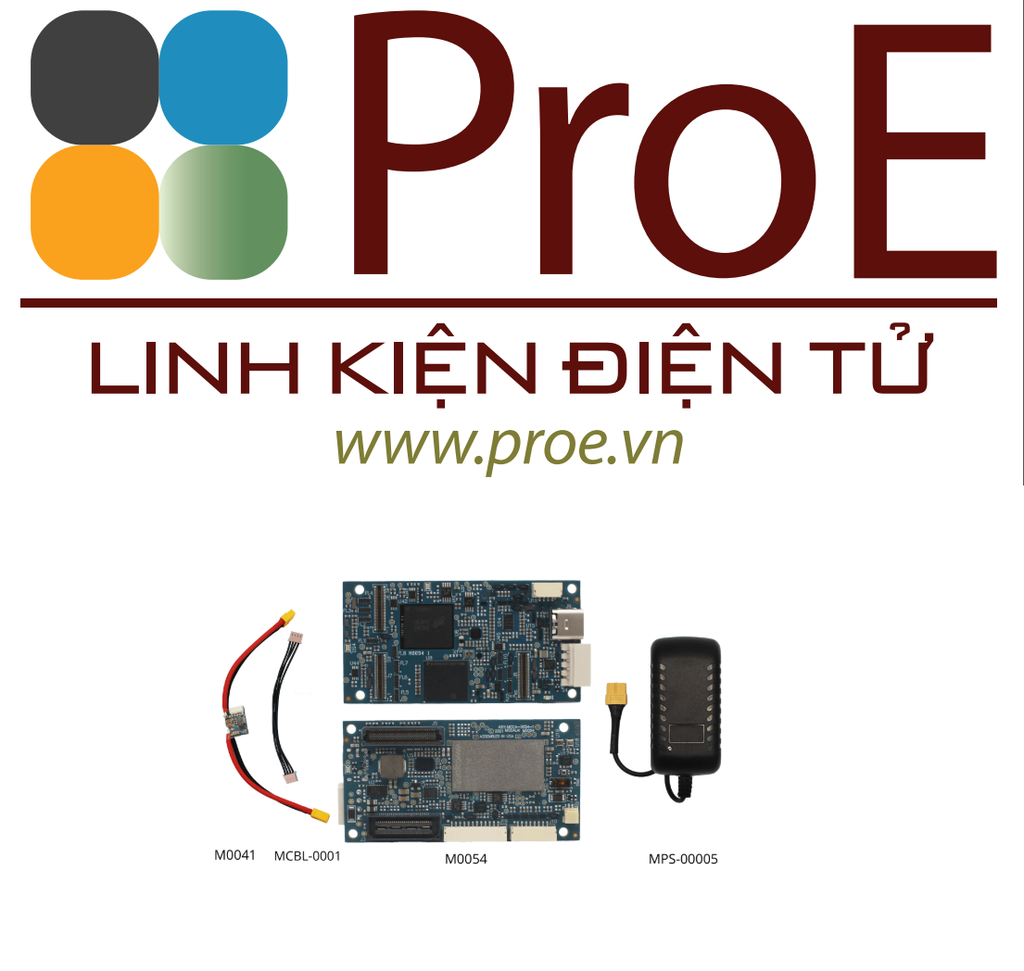

VOXL 2 Development Kit Details

MDK-M0154-1-00 VOXL 2 Dev Kit, Board Only

What is Included:

MDK-M0154-1-01 VOXL 2 Dev Kit, No Image Sensors

What is Included:

Please see our handling instructions for best practices on handling your device.

VOXL 2 Reference Drones

• Starling 2
• Starling 2 Max

Export Information
