WIKI: www.waveshare.com/wiki/USB_TO_RS485/422
PACKAGE CONTENT
DESCRIPTION
USB To RS485/422 Industrial Grade Isolated Converter, Onboard Original FT232RL And SP485EEN, Multiple Protection, Wall-Mount And Rail-Mount Support
USB TO RS485/422
Industrial Grade Isolated Converter
Adopts original FT232RNL and SP485EEN chip solution, provids stable communication with built-in galvanic isolation, lightningproof and anti-electrostatic protection and so on, it is an ideal choice for industrial control equipments and/or applications with high communication requirement.
Features At A Glance
Specifications
PRODUCT TYPE | Industrial grade isolated USB to RS485/422 converter | |
---|---|---|
BAUD RATE | FT232RNL | 300bps ~ 3Mbps |
HOST PORT | USB | |
DEVICE PORT | RS485/422 | |
USB | Operating voltage | 5V |
Connector | USB-B | |
Protection | 200mA self-recovery fuse, ESD protection | |
Transmission distance | About 5m | |
RS485/422 | Connector | Screw terminal |
Pins | A+, B-, PE | |
Direction control | Hardware automatic control | |
Protection | 600W lightningproof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor) | |
Transmission distance | About 1.2km(low rate) | |
Transmission mode | Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more) | |
LED INDICATORS | PWR | Red power indicator, light up when there is USB connection and voltage is detected |
TXD | Green TX indicator, light up when the USB port sends data | |
RXD | Blue RX indicator, light up when the device ports send data back | |
OPERATING ENVIRONMENT | Temperature | -15℃ ~ 70℃ |
Humidity | 5%RH ~ 95%RH | |
OPERATING SYSTEM | Mac, Linux, Android, WinCE, Windows 10 / 8.1 / 8 / 7 / XP | |
APPEARANCE | Enclosure | Rail-mount ABS case, suitable for 35mm DIN rail |
Dimensions | 81.9 × 54.0 × 32.0mm |
Onboard Original Chips
Onboard Original FT232RL And SP485EEN Chips, Providing Better Stability And Compatibility
Galvanic Isolated Design
Multiple Protection, Safe And Stable
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance.
Transmission Distance Up To 1.2km
The USB Signal Can Be Converted Into A Balanced Differential RS485/422 Signal And The Transmission Rate Is Stable. The Transmission Distance Is About 1.2km For RS485/422, And About 5 Meters For USB.
Multi System Support
Supports Mac, Linux, Android, WinCE, Win11/10/8.1/8/7/XP, Etc.

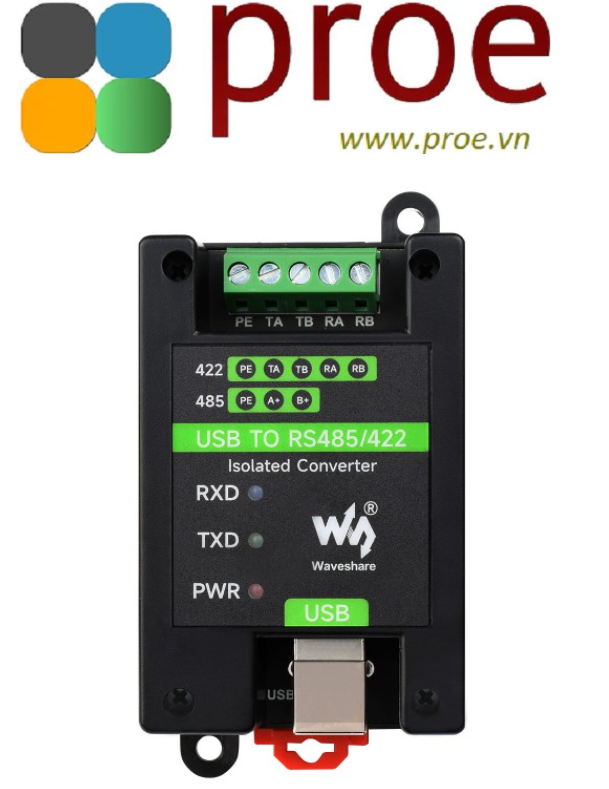

Interface Introduction
INTERFACE | PE | TA | TB | RA | RB |
---|---|---|---|---|---|
RS422 | Signal Ground | Send Differential Signal Positive T+ | Send Differential Signal Negative T- | Receive Differential Signal Positive R+ | Receive Differential Signal negative R- |
RS485 | Signal Ground | Differential signal Positive A+ | Differential Signal Negative B- | NC | NC |

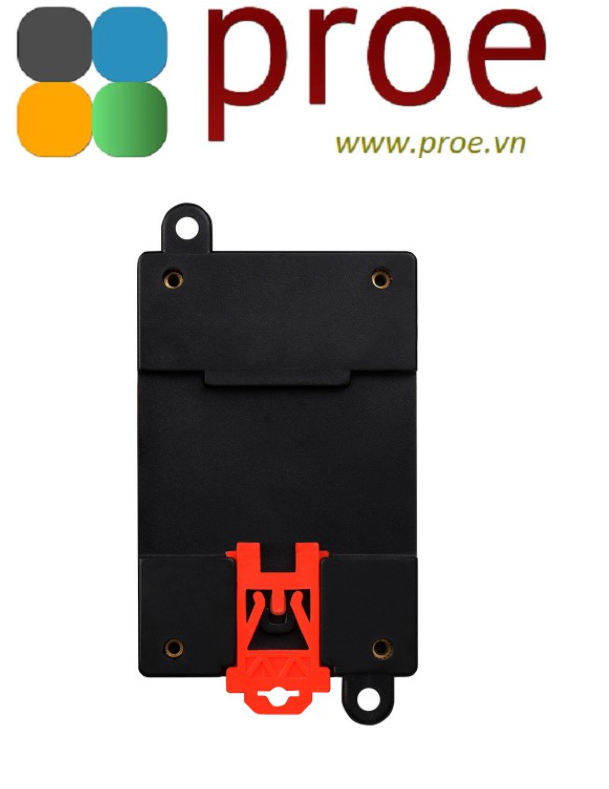

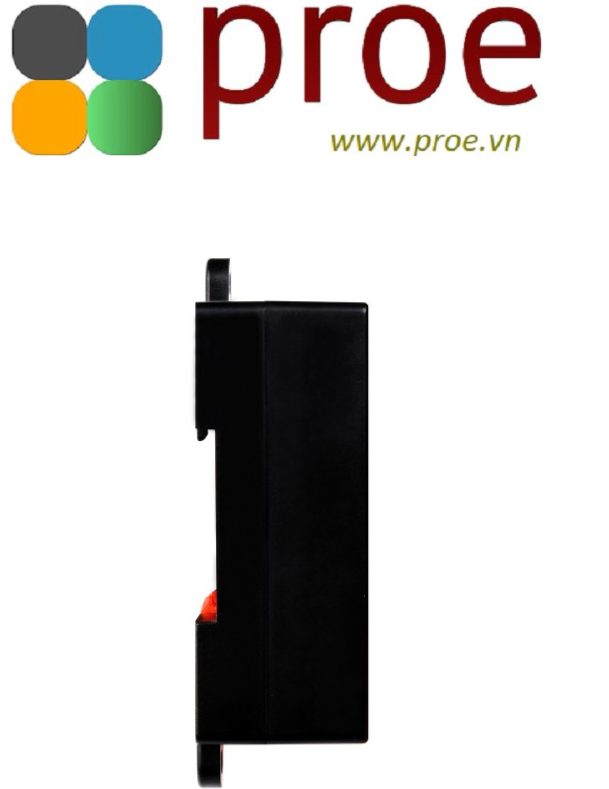

Wall-Mount And Rail-Mount Support

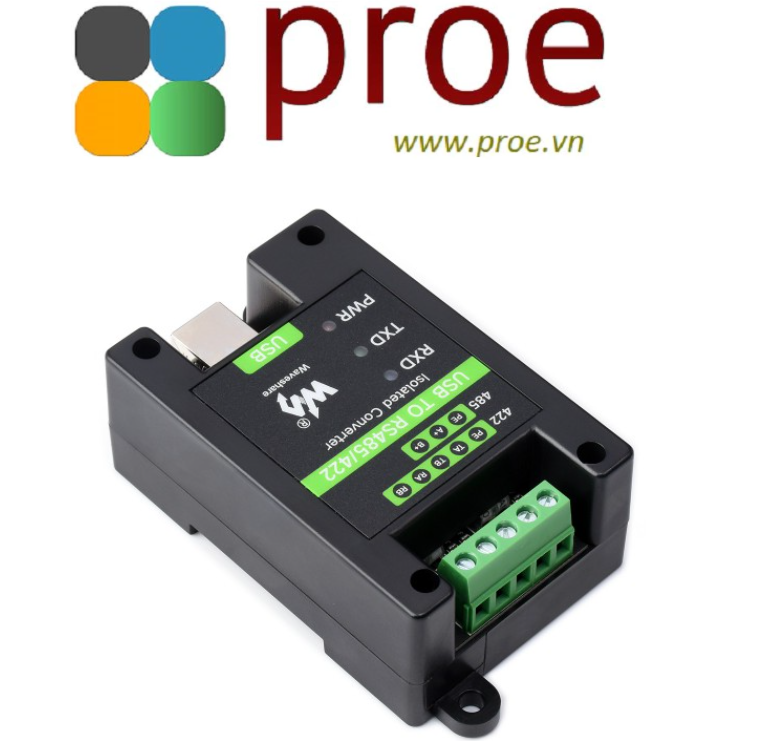

Product Show
Outline Dimensions
