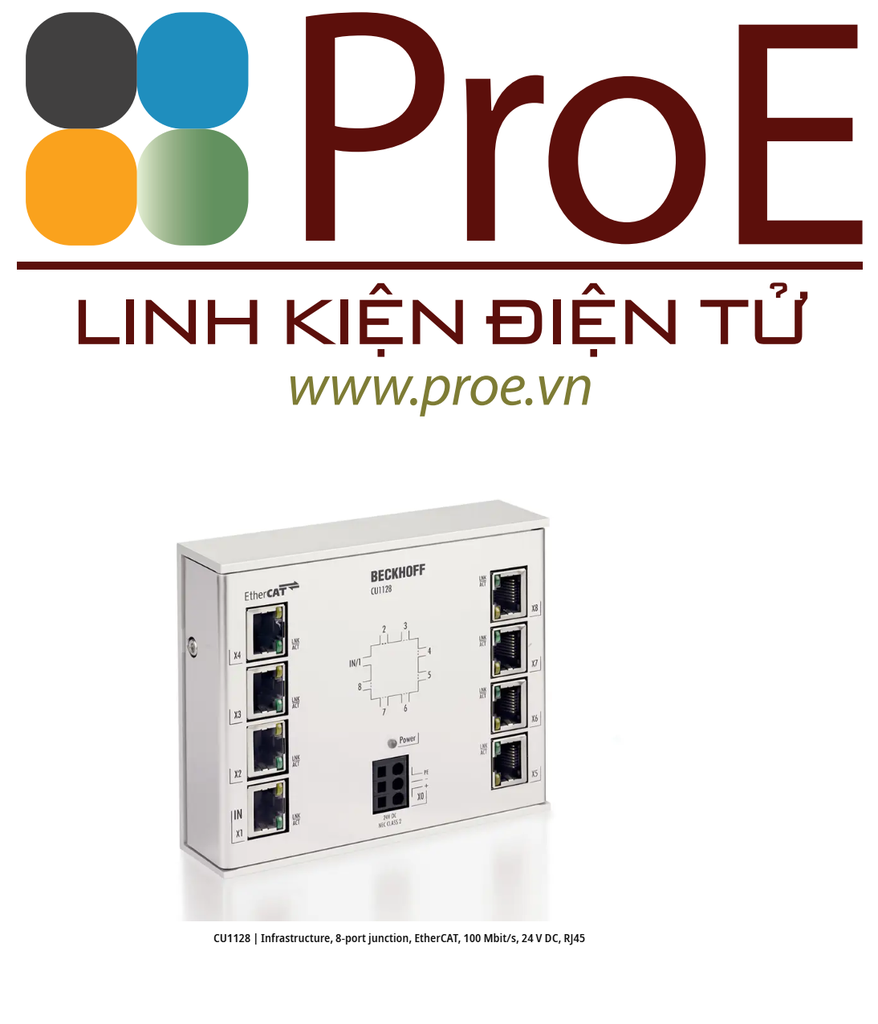

CU1128 EtherCAT
- Mã sản phẩm: CU1128 EtherCAT
- Nhà sản xuất: beckhoff
- Website hỗ trợ: https://www.proe.vn
Liên hệ
Line, tree or star: EtherCAT supports almost any topology. If a star topology requires several branches at a particular point, the 8-way CU1128 EtherCAT junction can be used instead of several EK1122 devices. Port 1 is the input port for the network. Further EK1100 or EtherCAT Box modules can be connected at ports 2 to 8. The EtherCAT junctions are connected via RJ45 sockets with direct display of link and activity status.
In conjunction with TwinCAT or other suitable EtherCAT masters the CU1128 also supports coupling and uncoupling of EtherCAT strands during operation (Hot Connect). The device cannot be used as a standard Ethernet switch.
| Technical data | CU1128 |
|---|---|
| Task within EtherCAT system | coupling of EtherCAT junctions |
| Data transfer medium | Ethernet/EtherCAT cable (min. Cat.5), shielded |
| Bus interface | 8 x RJ45 |
| Distance between stations | max. 100 m (100BASE-TX) |
| Protocol | EtherCAT |
| Delay | approx. 1 µs per port |
| Data transfer rates | 100 Mbit/s |
| Configuration | not required |
| Power supply | 24 (18…30) V DC, 3-pin connection (+, -, PE) |
| Current consumption 24 V DC | typ. 185 mA |
| Dimensions (W x H x D) | 122 mm x 100 mm x 38 mm |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE, UL |
