USB-HUB-4U Industrial Grade USB HUB, Extending 4x USB 2.0 Ports

PACKAGE CONTENT

Weight: 0.244 kg

1. USB-HUB-4U x1
2. USB cable ~1.2m x1
3. OPTIONS 5V 2A power adapter x1

1

2

3

Industrial Grade USB HUB, Extending 4x USB 2.0 Ports

Industrial 4U USB HUB

Suitable For Industrial/Office Environments With Higher Level Device Requirements

Features At A Glance

• 4x extended USB ports, compatible with USB 2.0 / 1.1
• Industrial grade HUB chip, adopting MTT technology, allows stable and smooth 4x concurrent USB connections
• ESD protection for each USB port, preventing electric surge damage and data loss
• Over-voltage protection, effectively preventing other high voltage power input from damaging the connected devices
• Multiple protection circuits: over-voltage, over-current, short circuit, over-temperature, reverse current, under voltage lock-out, 8KV ESD protection, filtering protection, etc.
• LED indicators for monitoring operating statuses of power supply and USB ports
• Industrial grade metal case, rugged & durable, with mounting holes for easy installation

Specifications

① up to 1.2A Max output current for each USB ports, when there's enough power input
② comes with 5V 2A power supply, it is recommended to use another 5V 4A or above power supply for higher USB loads

Industrial Grade HUB Chip

MTT Technology, 4x Concurrent USB Connections, Stable And Smooth

Multiple Protections, More Safe

Over-Voltage, Over-Current, Short Circuit, Over-Temperature, Reverse Current, Under Voltage Lock-Out, 8KV ESD Protection, Filtering Protection...

Multiple OS Support, Plug & Play

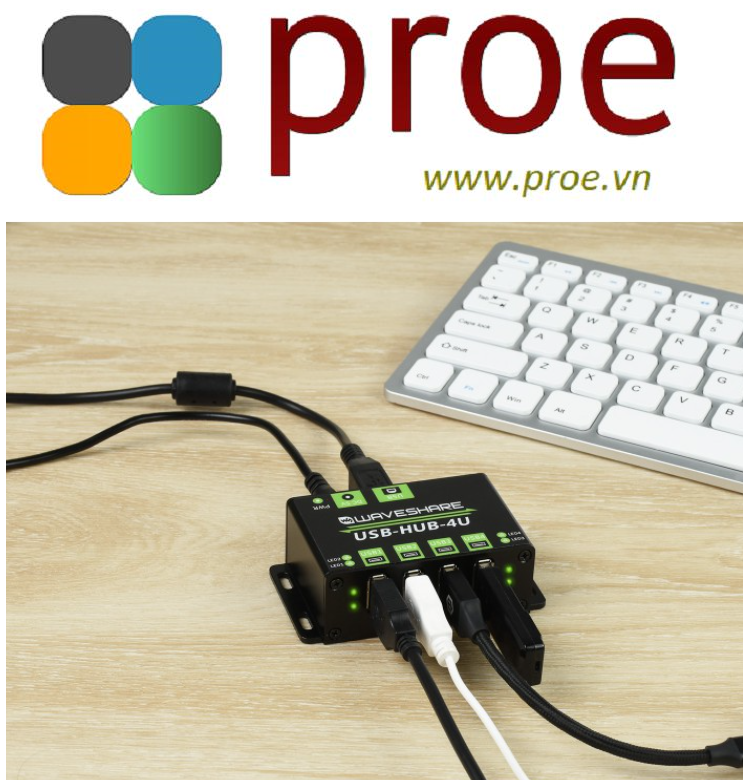

Application Environments

Suitable For Industrial/Office Environments With Higher Level Device Requirements

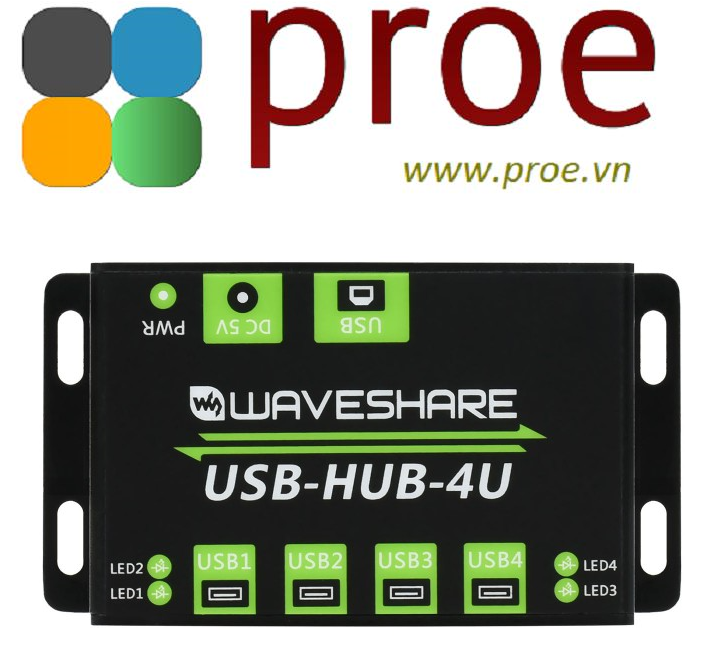

Interface Introduction

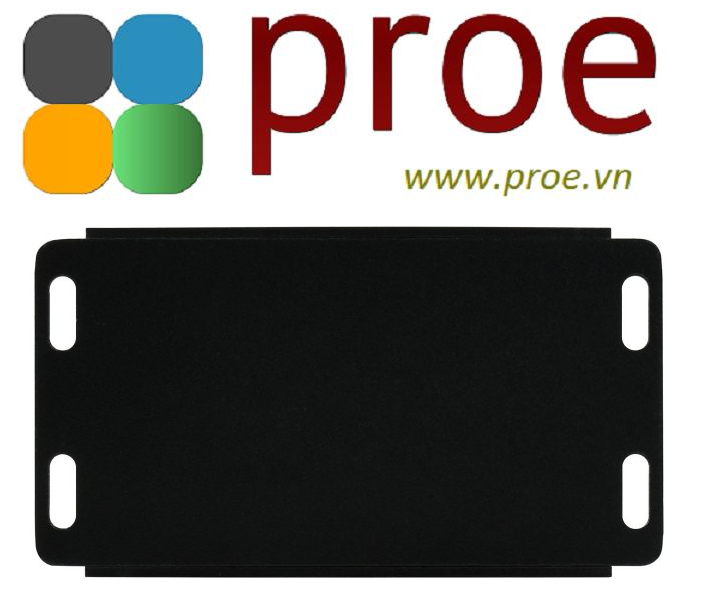

Outline Dimensions

Resources & Services

Wiki: USB-HUB-4U
