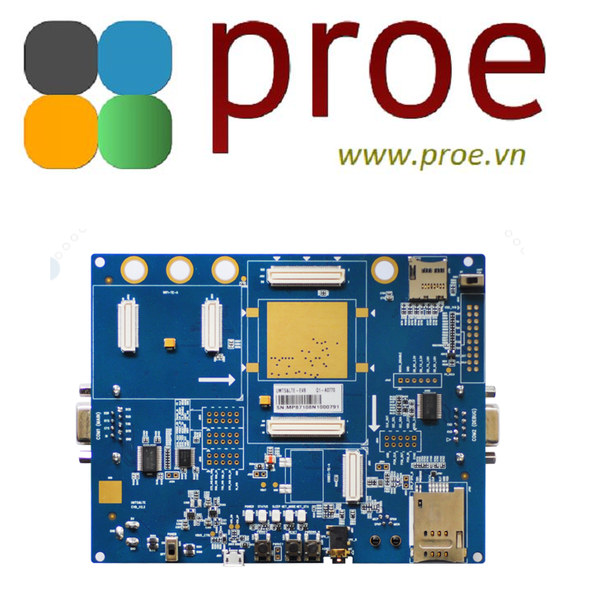

UMTS & LTE EVB Kit

Tham khảo mua kèm BG95M3-TEA

UMTS & LTE EVB Kit

Quectel supplies UMTS & LTE EVB for designers to develop applications based on Quectel UMTS & LTE modules and Wi-Fi modules. This EVB can test basic functionalities of these modules.

Overview

Applicable Modules

UMTS&LTE Modules:

● UC20
● UGxx (UG96/UG95)
● EC2x (EC25/EC21/EC20/EC20 R2.0/EC20 R2.1)
● EG9x (EG91/EG95)
● AG35
● BG96

Wi-Fi Modules:

● FC20 Series (FC20/FC20-N)
● AF20

EVB Kit Includes

● USB to UART converter cable X 1
● USB cable  X 1
● RF cables X 4
● Main Antennas X 2
● GNSS Antenna (passive) X 1
● Wi-Fi Antenna  X 1
● Earphone X 1
● USB 2.0 to RS232 driver and USB driver disk X 1
● ALC5616 and TLV320AIC3104 codec boards X 2
● Bolts and nuts for assembling EVB X 1 (4 for each type)
● Instruction sheet of giving instructions for EVB connection, details of EVB accessories, etc. X 1
