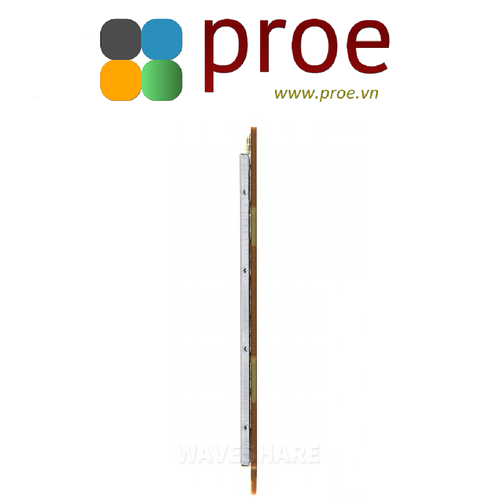

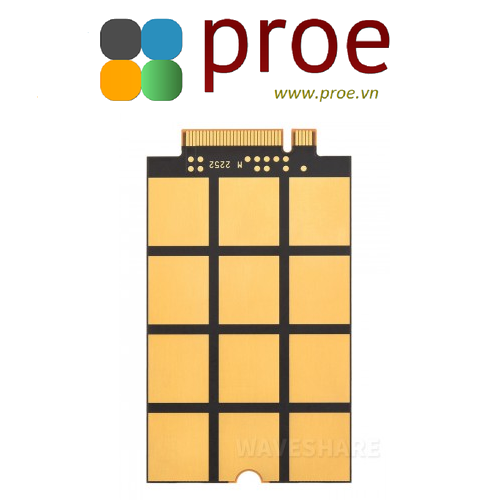

Quectel EM060K-GL Module, LTE-A Cat 6 module with M.2 form factor, Global Multi-band GNSS Positioning
- Mã sản phẩm: EM060K-GL
- Nhà sản xuất: Quectel
- Website hỗ trợ: https://www.proe.vn
2.100.000₫
Quectel EM060K-GL Module, LTE-A Cat 6 Module With M.2 Form Factor, Global Multi-Band GNSS Positioning
Quectel EM060K-GL Module
LTE-A Cat 6 M.2 Module
Industrial-Grade Module For Industrial And Commercial Applications
Features At A Glance
- LTE-A Cat 6 module with M.2 form factor
- Supports DL 2 Carrier Aggregation and 64QAM
- Worldwide LTE-A and UMTS/HSPA+ coverage
- Low power mode, more power saving
- Integrated multi-constellation GNSS receiver to meet the requirement of fast and accurate positioning in different environments
- MIMO technology meets demands for data rate and link reliability in modem wireless communication systems
M.2 Form Factor
EM060K-GL adopts the 3GPP Release 12 specification and M.2 form factor, compatible with Quectel's LTE-A Cat 6 module EM06, LTE-A Cat 12 modules EM12-G/EM121R-GL/EM120R-GL, LTE-A Cat 16 module EM160R-GL and 5G modules RM50xQ series, which facilitate the migration between different modules.
Worldwide Mainstream Carriers Coverage
The EM060K-GL nearly covers all the mainstream carriers worldwide. The integrated multi-constellation high-precision GNSS receiver (supports GPS, GLONASS, BDS and Galileo) greatly simplifies the product design and provides quicker, more accurate positioning capability.
Built-In Rich Network Protocols
Integrates multiple industry-standard interfaces and supports multiple drivers and software functions (USB drivers for Windows, Linux, and Android), which greatly expands the range of applications including Industrial Routers, Home Gateways, Set Top Box, industrial laptops, consumer laptops, Industrial PDAs, Rugged Industrial Tablet PCs and Digital Signage.
Specifications
| LTE CAT 6 | EM06-E | EM060K-GL |
|---|---|---|
| Region / Provider | EMEA/APAC①/Brazil | Global |
| Operating temperature | -30 °C ~ +70 °C | |
| Extension temperature | -40 °C ~ +85 °C | |
| Dimensions | 42.0 × 30.0 × 2.3 (mm) | |
| Power supply | 3.135~4.4 V, typical 3.7 V | |
| Power consumption | 50 μA @ shutdown 4.1 mA @ hibernate, typical 22.1mA @ idle |
62 μA @ shutdown 2.71 mA @ hibernate, typical 16.57mA @ idle |
| FREQUENCY BAND | ||
| LTE-FDD | B1, B3, B5, B7, B8, B20, B28, B32② | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29③, B30, B32③, B66, B71 |
| LTE-TDD | B38, B40, B41 | B34, B38, B39, B40, B41, B42, B43, B46③ (LAA), B48 (CBRS) |
| 2xCA | B1+B1, B5, B8, B20, B28; B3+B3, B5, B7, B8, B20, B28; B7+B5, B7, B8, B20, B28; B20+B32②; B38+B38; B40+B40; B41+B41 |
Intra-band, Inter-band |
| WCDMA | B1, B3, B5, B8 | B1, B2, B3, B4, B5, B6, B8, B19 |
| GNSS | GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS(optional) | GPS/GLONASS/BDS/Galileo |
| DATA RATE | ||
| LTE-FDD | 300Mbps (DL); 50Mbps (UL) | 300Mbps (DL); 50Mbps (UL) |
| LTE-TDD | 226Mbps (DL); 28Mbps (UL) | |
| DC-HSPA+ | 42Mbps (DL); 5.76Mbps (UL) | |
| WCDMA | 384kbps (DL); 384kbps (UL) | |
| Note | ① Japan and CMCC are NOT included. ② For EM06-E, B32 is only used for receiving in LTE-FDD, and is only for secondary component carrier in 2×CA. ③ For EM060K-GL, LTE-FDD B29/B32 and LTE-TDD B46 are used for receiving only, and are only for secondary component carrier. |
|
Application Scenarios
Industrial Routers, Home Gateways, Set Top Boxes, Industrial Laptops, Consumer Laptops, Industrial PDAs, Rugged Industrial Tablet PCs, And Digital Signage...
Dimensions
