Ultraleap 3Di

Description

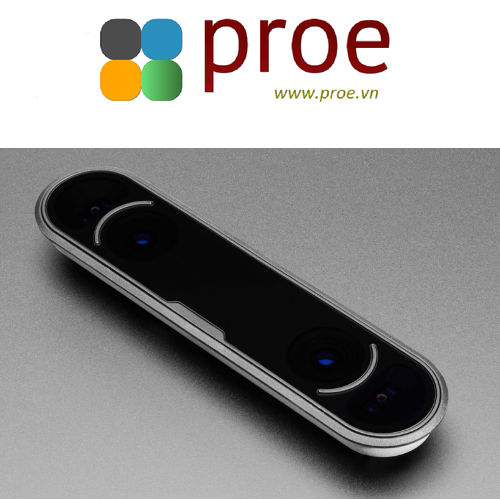

The Ultraleap 3Di Stereo Hand Tracking Camera is designed to be connected to an interactive screen. Together with Ultraleap's world-leading
software, it transforms displays into touchless, three-dimensional, immersive surfaces. Ultraleap 3Di allows easy integration of Ultraleap hand
tracking in a form factor ruggedized for use in permanent settings — such as self-serve kiosks, digital out-of-home installations, interactive
displays in retail, museums, and theme parks, or medical/industrial uses.
Ultraleap 3Di is part of Ultraleap's TouchFree end-to-end solution — camera hardware, reliable hand tracking software, and developer tooling.
The camera uses Ultraleap's patented stereo infrared technology and world-leading Gemini hand tracking software. It is robust even in
challenging lighting conditions, and reliably tracks a wide variety of hand sizes and shapes.
Ultraleap also provides a suite of developer tools for the development of touchless experiences:
TouchFree Application: Detects a user's hand in mid-air and converts it to an on-screen cursor. Retrofit existing touchscreen interfaces
with touchless gesture control or evaluate using your desktop monitor.
TouchFree Tooling for Web or Unity: Add touchless cursor control into kiosk applications in minutes, and have total control over how your
application reacts to users' hand movements.
The Ultraleap 3Di camera is part of the TouchFree end-to-end solution for quick and easy development of touchless experiences.
• Ultraleap 3Di Camera: Patented stereo infrared camera designed for connection to public interactive screens.
• TouchFree Application: Reliably track a wide variety of hand sizes and shapes and convert hand movements to an on-screen cursor.
• TouchFree Tooling: Integrate touchless as a native feature into Web or Unity applications in minutes.
• Mounting solutions: Available as CAD files by contacting support@ultraleap.com.
• Minimum system requirements: Windowse 10, 64-bit, Intel@ CoreTM i3 processor 5th Gen (must support AVX instructions), 2 GB RAM,
USB 2.0 port. Note: Ultraleap 3Di is currently Windows compatible only.

Technical Details
Revision History:

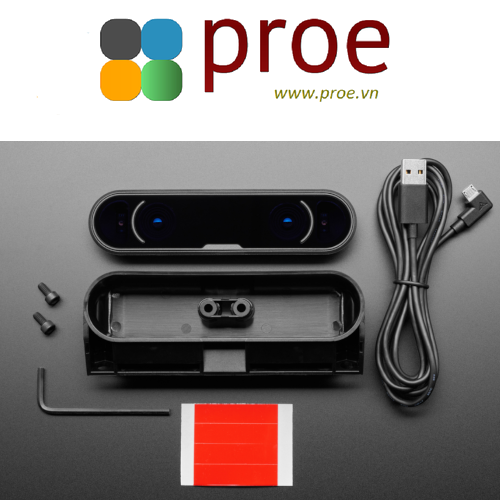

• As of Sep 11, 2023 - this kit no longer comes with a mini tripod it now includes a nice slick multi-mount.
Specifications:
• Power: 5VDC via USB connector / 500 mA max / 250 mA typical
• Data connection: USB 2.0 via USB type-b connector
• Tracking range and field of view: Depth of between 10 cm (4") to 75 cm (29.5") preferred, up to 1 m (39") maximum; typical field
of view minimum). Ultraleap 3Di can provide touchscreen emulation for screens up to 42" (portrait or landscape). Larger screens
can also be controlled through interaction at a distance.
• Camera framerate: 90 fps

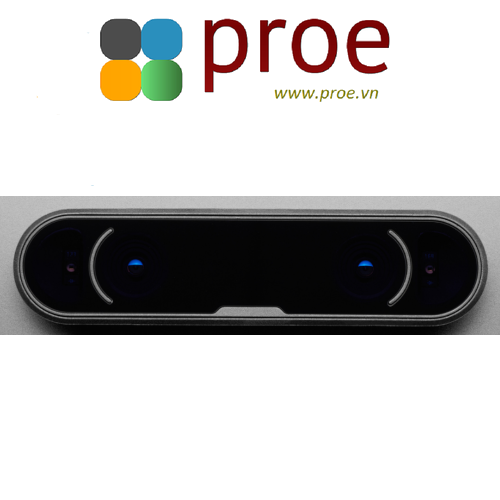

• Operating wavelength: 850 nm. Provides its own illumination via two IR LEDs spaced on either side of the cameras.
• Temperature rating: OOC to 400C (320F to 1040F)
• Ingress protection: IP54 when mounted using Panel Mount Kit (available from Ultraleap)
• Certification: UKCA, CE, FCC
• Minimum system requirements: Windows@ 10, 64-bit, Intel@ Core"' i3 processor 5th Gen (must support AVX instructions), 2 GB RAM, USB
2.0 port. Note: Ultraleap 3Di is currently Windows compatible only.
