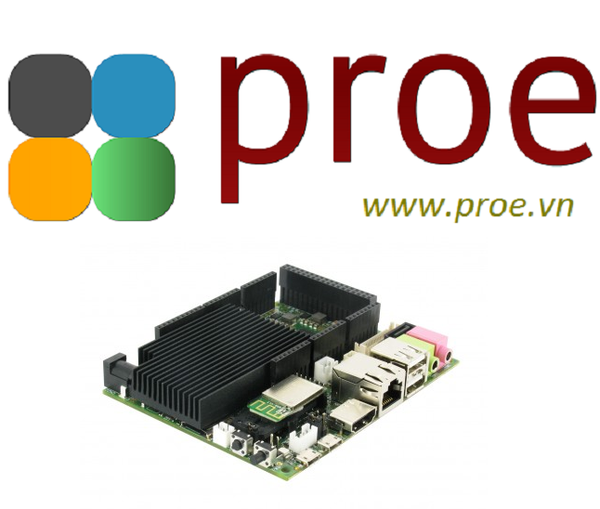

UDOO QUAD Development Boards & Kits - ARM UDOO Quad

  • Mã sản phẩm: UDOO QUAD
  • Nhà sản xuất: UDOO
  • Website hỗ trợ: https://www.proe.vn
5.250.000₫

SUMMARY

UDOO QUAD and UDOO DUAL help you move your first step in the world of makers with the reliability of a powerful open source, open hardware Arduino-powered Android / Linux Mini PC.

Launched and funded in 2013 on Kickstarter with the name of UDOO, UDOO DUAL and UDOO QUAD are the first single board computers of the UDOO family. Both the boards follow the same concept of an agile yet powerful next-generation computer, equipped with Linux or Android OS and enhanced by the simplicity of Arduino.

Born for educational applications, the project has sparked many interest in the world of makers and inventors, that have used the platform for the widest range of scopes, including Lunar Rovers, self-driving rovers, 3D printers and Electronic Control Units for cars. Although it is now a 3 years old baby, UDOO QUAD stays indeed among the most powerful maker boards in the market, ensuring a smooth user experience thanks to an i.MX6 processor by NXP (Quad Core for UDOO QUAD, Dual Core for UDOO DUAL), combining together an Arduino DUE-compatible platform based on a SAM3X8E and a Linux / Android computer based on a Cortex-A9.

The board can also be used as a computer for everyday use, but you’ll take the most out of it if you exploit it as an ARM dev board and/or as an Arduino-compatible board. UDOO QUAD finally is designed to be the cornerstone of an embedded Linux development kit, counting on a useful SATA port to attach an external hard disk, as well as Wi-Fi to be ready for the IoT environment.



Warning: UDOO QUAD and UDOO DUAL I/O pins are 3.3V only compliant. Providing shields with higher voltage, like 5V, could damage the board. Use only shields Arduino DUE-compatible (3.3V).


Download the Schematics here.

Download the UDOO Pinout here.

Download the UDOO QUAD/DUAL datasheet here.



Full Specs

  • NXP® i.MX 6 ARM Cortex-A9 CPU Dual/Quad core 1GHz
  • Integrated graphics, each processor provides 3 separated accelerators for 2D, OpenGL® ES2.0 3D and OpenVG™
  • Atmel SAM3X8E ARM Cortex-M3 CPU (same as Arduino Due)
  • RAM DDR3 1GB
  • 76 fully available GPIO
  • Arduino-compatible R3 1.0 pinout
  • HDMI and LVDS + Touch (I2C signals)
  • Ethernet RJ45 (10/100/1000 MBit)
  • WiFi Module
  • Mini USB and Mini USB OTG
  • USB type A (x2) and USB connector (requires a specific wire)
  • Analog Audio and Mic
  • SATA (Only Quad-Core version)
  • Camera connection
  • Micro SD (boot device)
  • Power Supply 12V and External Battery connector

arm development board

Size

riga-01

Very small sized board 4.33 inch x 3.35 inch (11cm x 8.5cm)

i.MX6/SAM3X8E

processori-01
Double processor ARM i.MX6 CPU Quad/Dual core 1GHz + ARM SAM3X8E Atmel

Gigabit Ethernet

UDOO_connections_view
Fast ethernet technology: Gigabit Ethernet at 1.000 Mbit/s



UDOO QUAD & DUAL



UDOObuntu_udoo

UDOObuntu 2

UDOObuntu 2, the official Operating System for UDOO, has been designed with 2 goals in mind: speed and user friendly. This new OS is armHF which means it has hard floats hardware support out of the box, even for the Arduino libraries.

Download UDOObuntu here.

Specs

  • Based on Ubuntu 14.04 LTS with LXDE
  • Arduino IDE v1.6.x
  • UDOO Configuration Tool
  • Serial library Examples for C, Java, Python, PHP and NodeJS
  • Remote Desktop service (VNC), Remote Terminal service(SSH)
  • Open CV with Examples for C, Java, Python
  • Development IDEs: Scratch, Code Blocks, Bluefish
  • Audio Dev Tools: Pure Data, JackControl



android_udoo

Android 6.0.1 MARSHMALLOW

UDOO runs Android 6.0.1 MARSHMALLOW including all the features of an Android device. With Arduino-compatible Embedded you have the possibility to use the Accessory Development Kit (ADK) 2012 and connect digital and analog sensors and actuators to Android.

Download Android 6.0.1 MARSHMALLOW here.!

Specs

  • Based on AOSP distro
  • Root permission (Powered by SuperSu)
  • TSCalibration App
  • Bluetooth (kickstarter dongle)
  • Internal usbotg managment
  • Ethernet manager app
  • File Manager, Terminal
  • Audio HDMI or onboard
  • GAPPs installation allowed
  • ADB wireless app
