UART TO ETH (B)

PACKAGE CONTENT

Weight: 0.008 kg

1. UART TO ETH (B) x1
2. 10PIN Black pinheader (2PCS) x1

TTL UART To Ethernet Mini Module, Castellated Holes With Immersion Gold Design, Highly Integrated Packaging

TTL UART To Ethernet Mini Module

Compact size | Easy to integrate | Low power consumption

Faster To Be Integrated Into Industrial, IoT, And Security Applications

Compact And Easy Integration

Castellated Holes With Immersion Gold Design, Highly Integrated Packaging
Supports Multiple Ways To Be Embedded Into Various Product Applications

* This product is without pre-soldered header by default, please contact the Waveshare service team if you need mass customization.

Multi Communication Modes

Supports TCP Server / TCP Client / UDP Multicast / UDP Mode

Modbus Gateway Support

Suitable For Modbus Gridding Upgrade, Can Be Used With Specific Configuration Software

User-Defined Heartbeat/Registration Packet

Easy For Cloud Communication And Device Identification

NTP Protocol Support

Getting Network Time Info For Serial Output Or Data Upload

Supports Web And Host Computer
Configuration

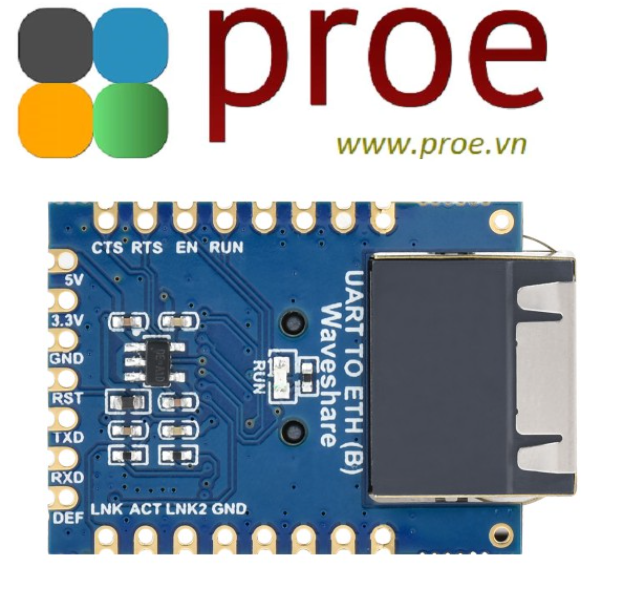

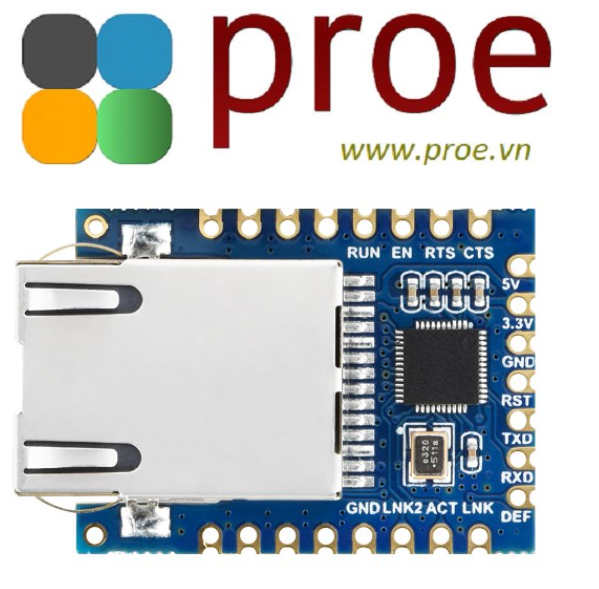

Interfaces And Indicators

Adapting Control Pins For Easy Embedding Or Connecting To User Devices And Various MCU Master Devices. With Multiple Indicators, Easy To Monitor The Operating Status Of The Module

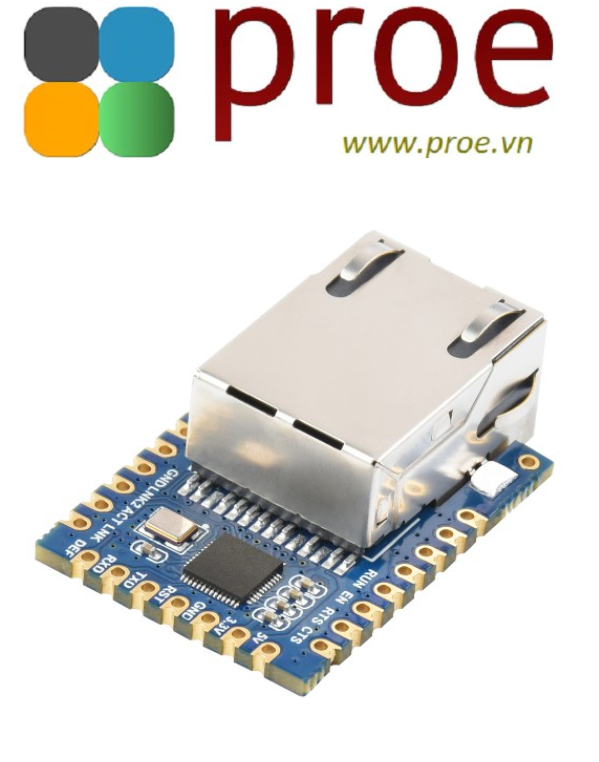

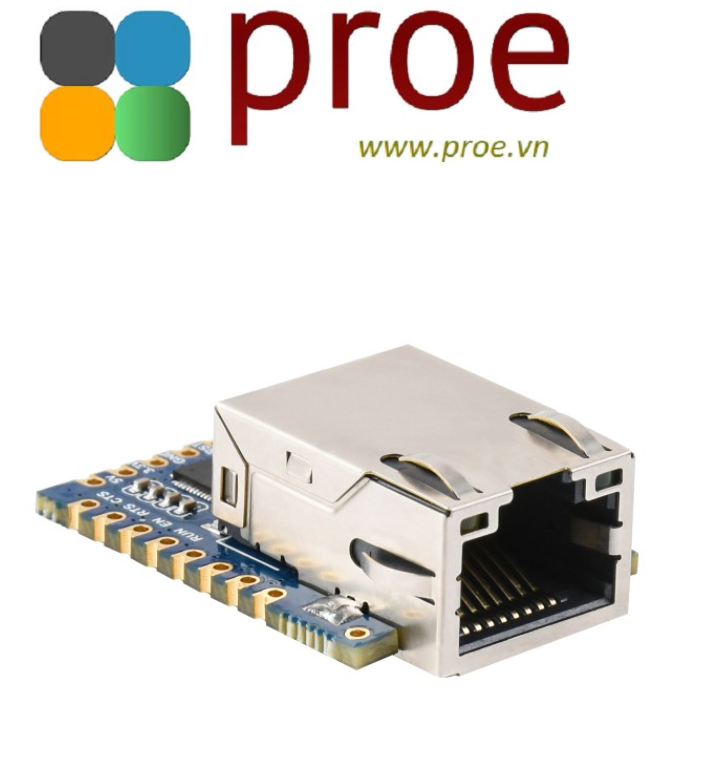

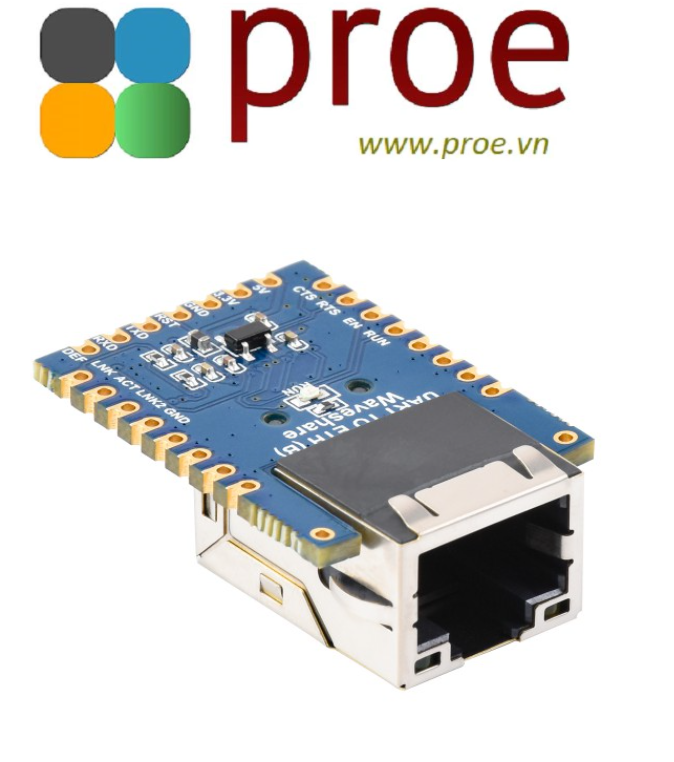

Product Show

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/UART_TO_ETH_(B)
