Triple LCD HAT For Raspberry Pi, Onboard 1.3inch IPS LCD Main Screen and Dual 0.96inch IPS LCD Secondary Screens

PACKAGE CONTENT

Weight: 0.017 kg

1. Zero LCD HAT (A) x1
2. Standoffs pack x1

1

2

DESCRIPTION

Triple LCD HAT For Raspberry Pi, Onboard 1.3inch IPS LCD Main Screen And Dual 0.96inch IPS LCD Secondary Screens, With 40PIN GPIO Header, Compatible With Raspberry Pi Series Boards

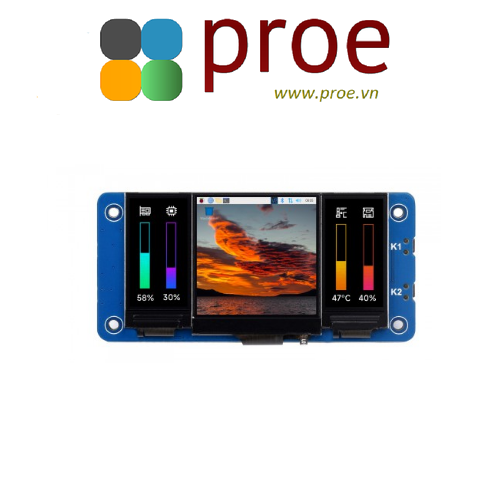

Dual 0.96inch LCD Secondary Screens

Using SPI Communication, Supports 65K Color Display, Can Be Used To Display Key
Information, Status Indicator Messages Or Small Graphics

Features At A Glance

• Standard Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards
• 1.3inch IPS LCD Main Screen with built in ST7789 driver chip, SPI interface communication, wide viewing angle, supports 65K color display, 240×240 resolution
• Dual 0.96inch LCD secondary screens with built in ST7735S driver chip, SPI interface communication, supports 65K color display, 160×80 resolution, can be used to display key informations, status indicator messages or small graphics
• Onboard 2x user-defined keys for extended applications
• Comes with online development resources and manual (Raspberry Pi/VisionFive2/Arduino/STM32, etc.)

Onboard 2x User-Defined Keys

Supports Customizing The Key Function, Easy To Use

Application Scenarios

Pin Definition

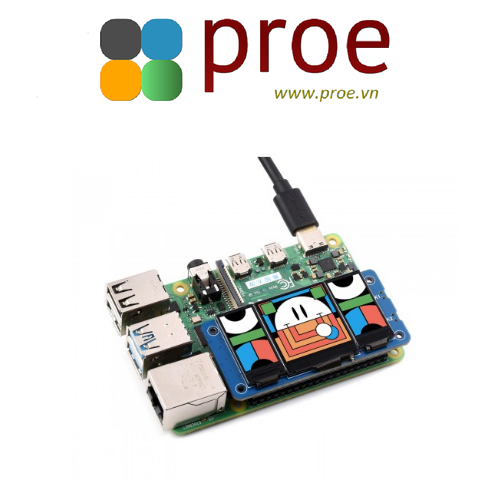

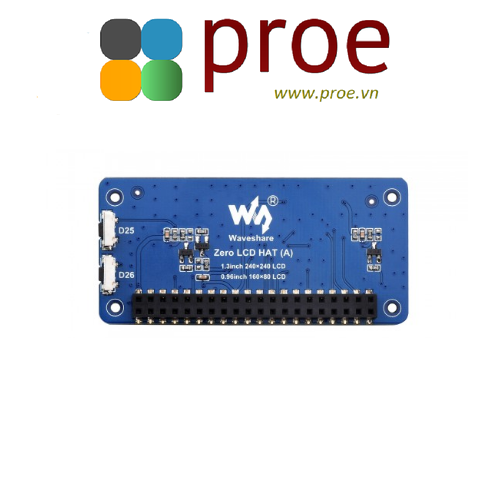

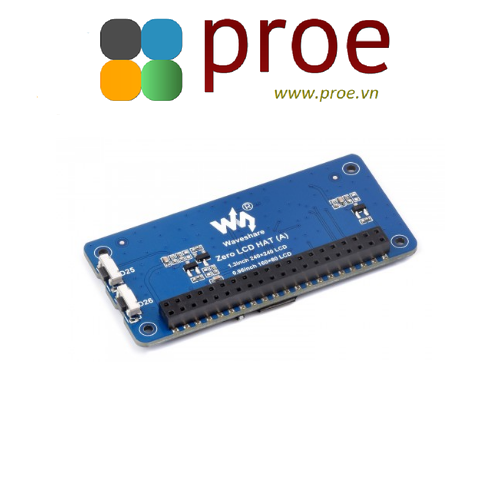

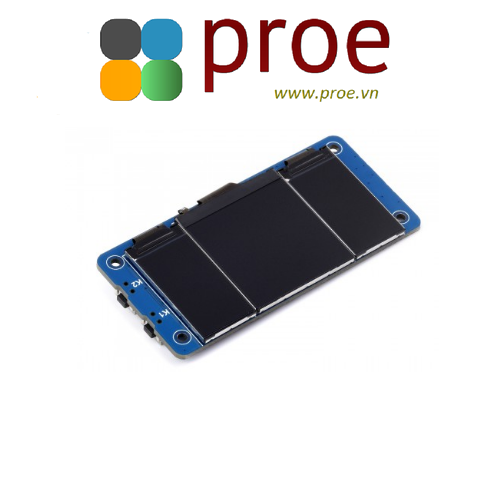

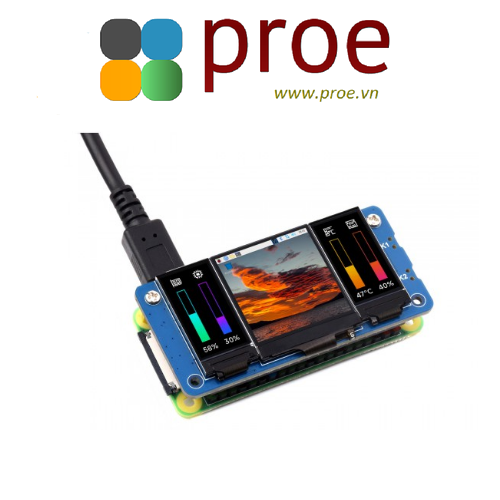

Product Show

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/OLED/Zero_LCD_HAT_(A)
