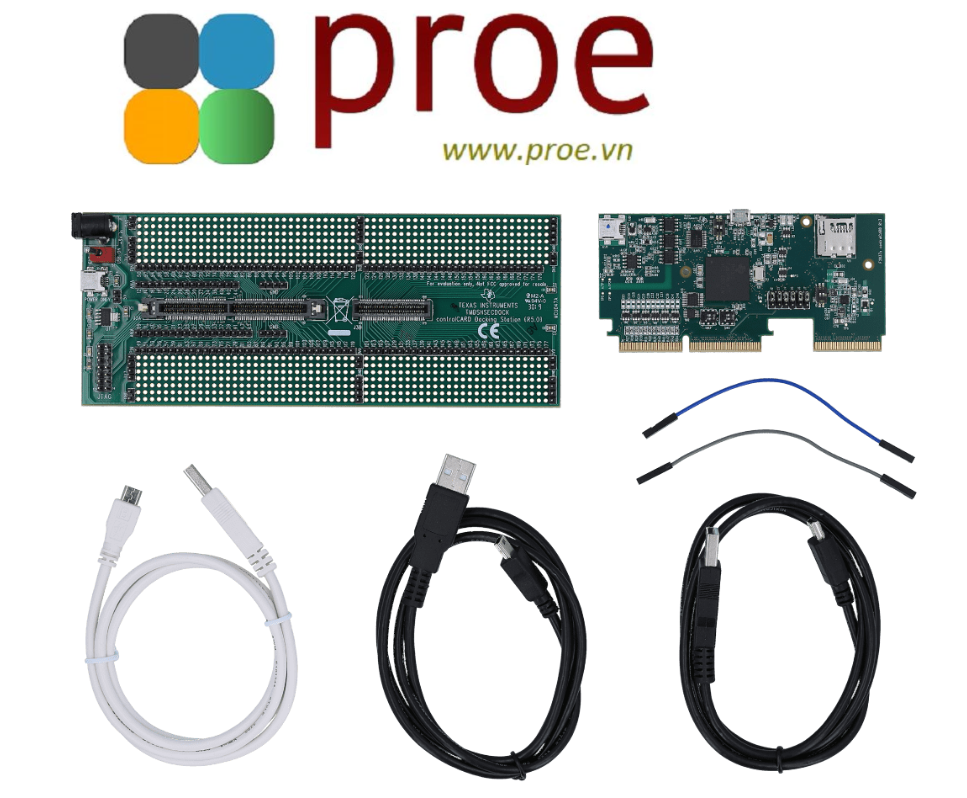

TMDSDOCK28379D F28379D Delfino Experimenter Kit

TMDSDOCK28379D is a HSEC180 controlCARD based evaluation and development tool for the C2000™ Delfino™ F2837x and Piccolo F2807x series of microcontroller products. The Docking Station provides power to the controlCARD and has a bread-board area for prototyping. Access to the key device signals are available using a series of header pins.

Features

Hardware Features

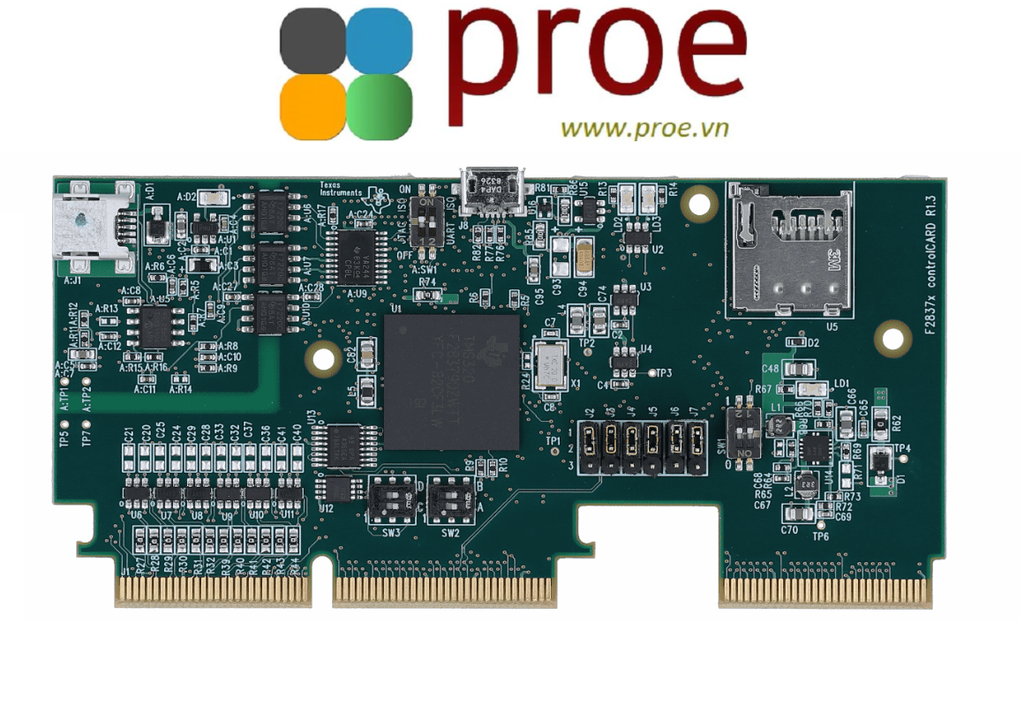

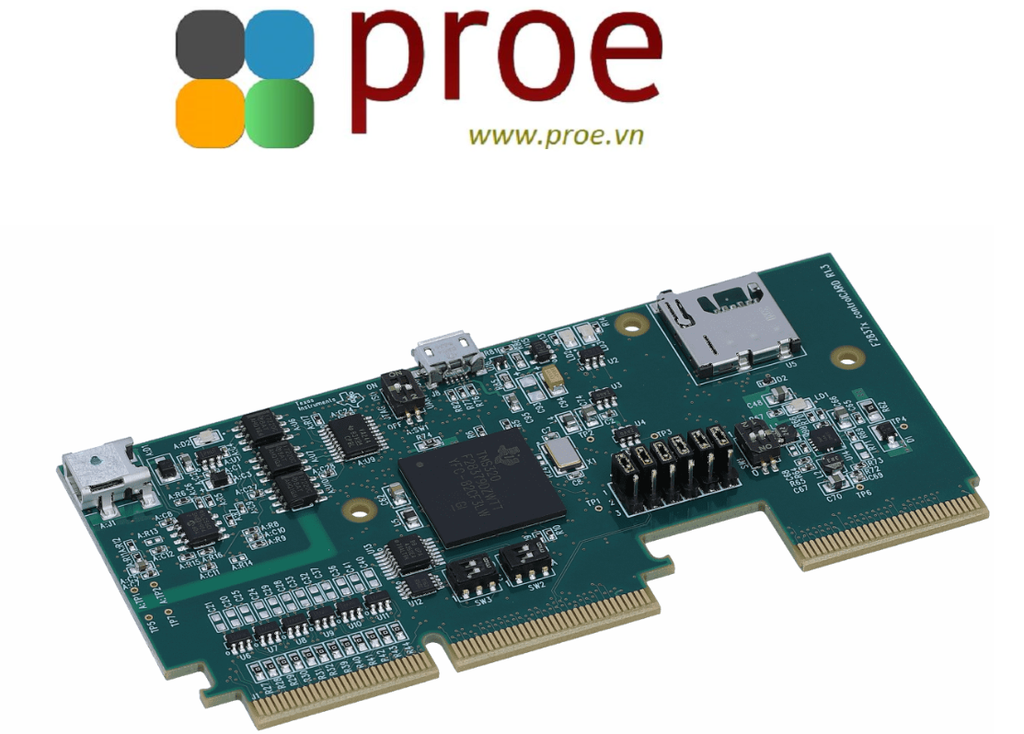

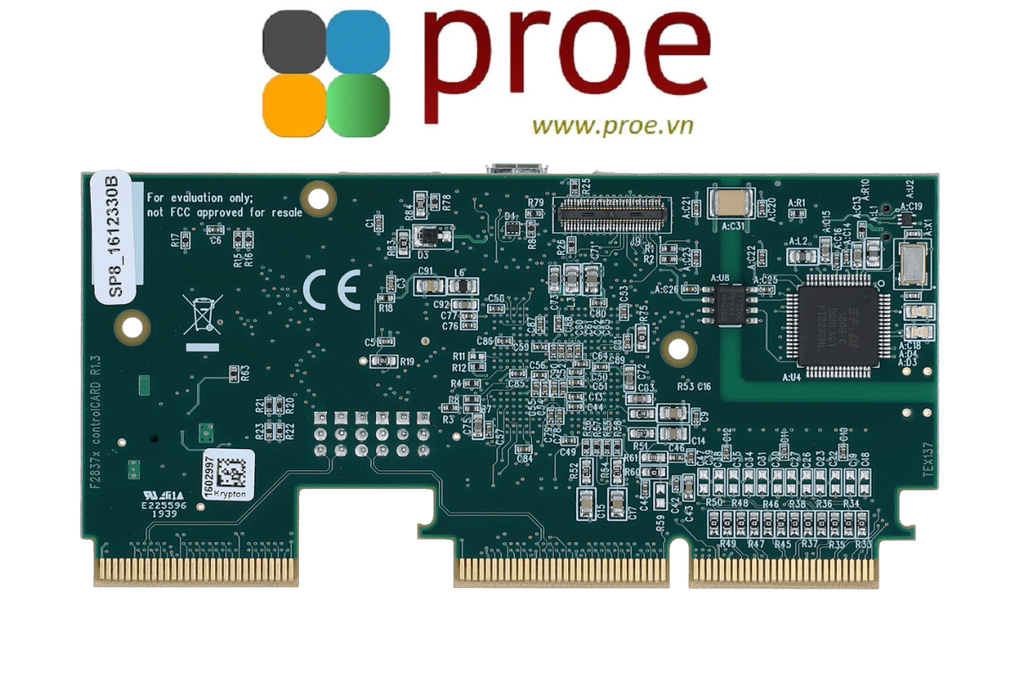

• TMDSCNCD28379D: TMS320F28379D HSEC180 based controlCARD
  • Isolated XDS100v2 USB-to-JTAG Debug Probe enables real-time in-system programming and debugging
• Bread-board like baseboard with HSEC180 controlCARD female connector
  • Header pin access to key MCU signals
  • Breadboard area for customizable routing/prototyping
  • Board power can be provided by the provided USB cable or a 5V barrel supply
• Hardware Files are in C2000Ware at boards\controlCARDs\TMDSCNCD28379D

Software Features

• Free download of Code Composer Studio IDE
• Free download of C2000Ware for device drivers and example projects
• DesignDRIVE and Position Manager capable
• MathWorks Embedded Target Support
• solidThinking Embed Support

Get Started

• Install controlSUITE
• Install Code Composer Studio IDE
• Open the Quick Start guide: Delfino TMS320F28379D controlCARD R1.3
• View and run the 1-day On-Line Workshop
• View and run the Multi-day On-Line Workshop
• Ask questions on the TI C2000 e2e forum
