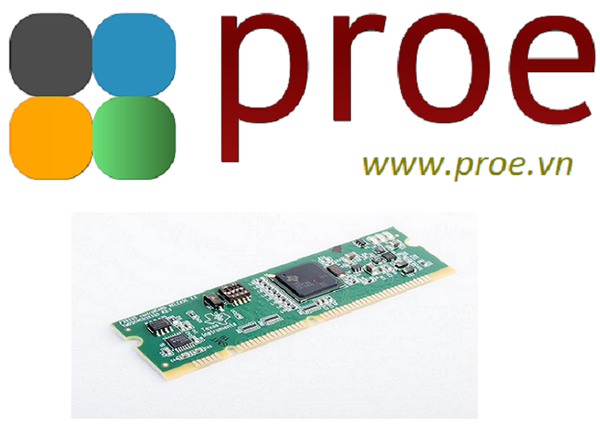

TMDSCNCD28335 TMS320F28335 controlCARD

 Description

Step 1: Buy the controlCARD
Step 2: Follow the get started section below

TMDSCNCD28335 is a DIMM100 controlCARD based evaluation and development tool for the F2833x series. controlCARDs are ideal to use for initial evaluation and system prototyping.  controlCARDs are complete board-level modules that utilize one of two standard form factors (100-pin DIMM or 180-pin HSEC ) to provide a low-profile single-board controller solution. For first evaluation, controlCARDs are typically purchased bundled with a baseboard, a Peripheral Explorer Kit, or an application kit. The TMDSCNCD28335 control card requires a baseboard to function.

Features

Hardware Features

    TMDSCNCD28335: TMS320F28335 DIMM100 based controlCARD
    Small form factor
    F28x analog I/O, digital I/O and JTAG signals to DIMM interface
    Isolated RS-232 interface
    5V power and JTAG debug probe required (provided with baseboard bundles)
    Hardware Files are in C2000Ware at boards\controlCARDs\TMDSCNCD28335

Software Features

    Free download of Code Composer Studio IDE
    Free download of controlSUITE for device drivers and example projects
    Several C2000 workshops were created to help teach users about the F2833x family of devices.
    The 2010 C2000 Teaching ROM was built around the similar TMDSPREX28335 kit and can serve as a good reference.
    MathWorks Embedded Target Support
    solidThinking Embed Support

Get Started

    Install controlSUITE
    Install Code Composer Studio IDE
    Ask questions on the TI C2000 e2e forum

What's Included

    Delfino F28335 controlCARD
