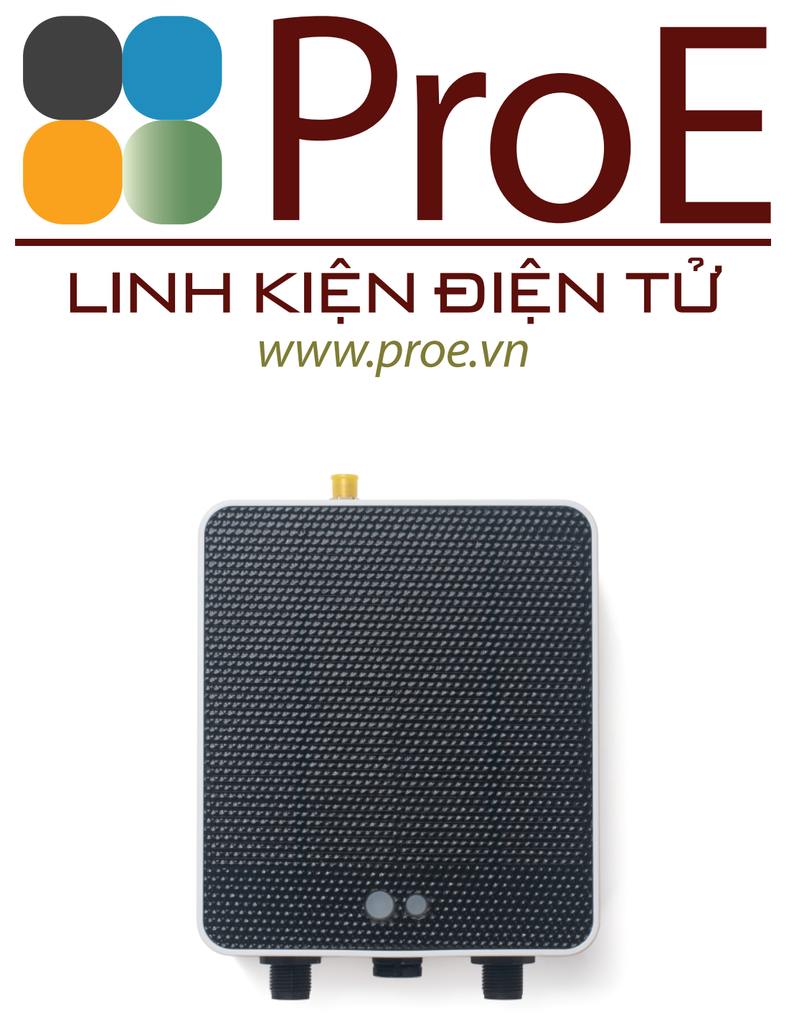

SVC01-LS2 LoRaWAN Solenoid Valve Controller

• User Manual -- Online Latest

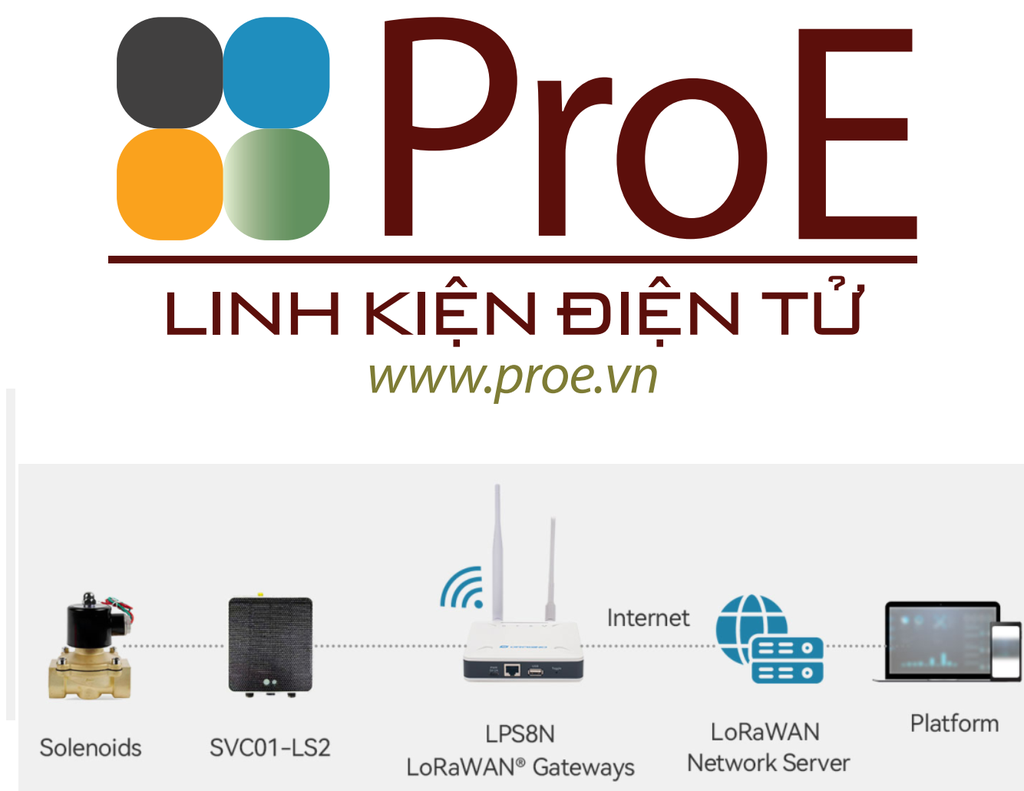

SVC01-LS2 is a LoRaWAN Solenoid Valve Controller designed for smart irrigation. SVC01-LS2 has the capability to control 2 of Solenoid Valve and able to get pulse count from water flow sensor. With these two features, SVC01-LS2 is suitable to be used in the remote water monitoring and controlling.

Features:

• LoRaWAN: Version 1.0.3
• Valve Control: 2-channel solenoid valve control
• Valve Drive Capability: Supports DC 9V-12V latching pulse solenoid valves
• Maximum Drive Current: 1.5A
• Compatibility: TORO P150, PGV101 (9V DC), and other irrigation pulse valves
• Water Measurement: 2-channel pulse counting for water volume measurement
• Irrigation Scheduling: Configurable timed irrigation
• Battery: 10,000 mAh Li-ion rechargeable battery
• Solar Panel: 1.2 W
• Ingress Protection: IP67 rated
• Durability Feature: Air pressure balance to sustain operation in tough environments

Package Includes:

• SVC01-LS2 -- LoRaWAN Solenoid Valve Controller x 1
