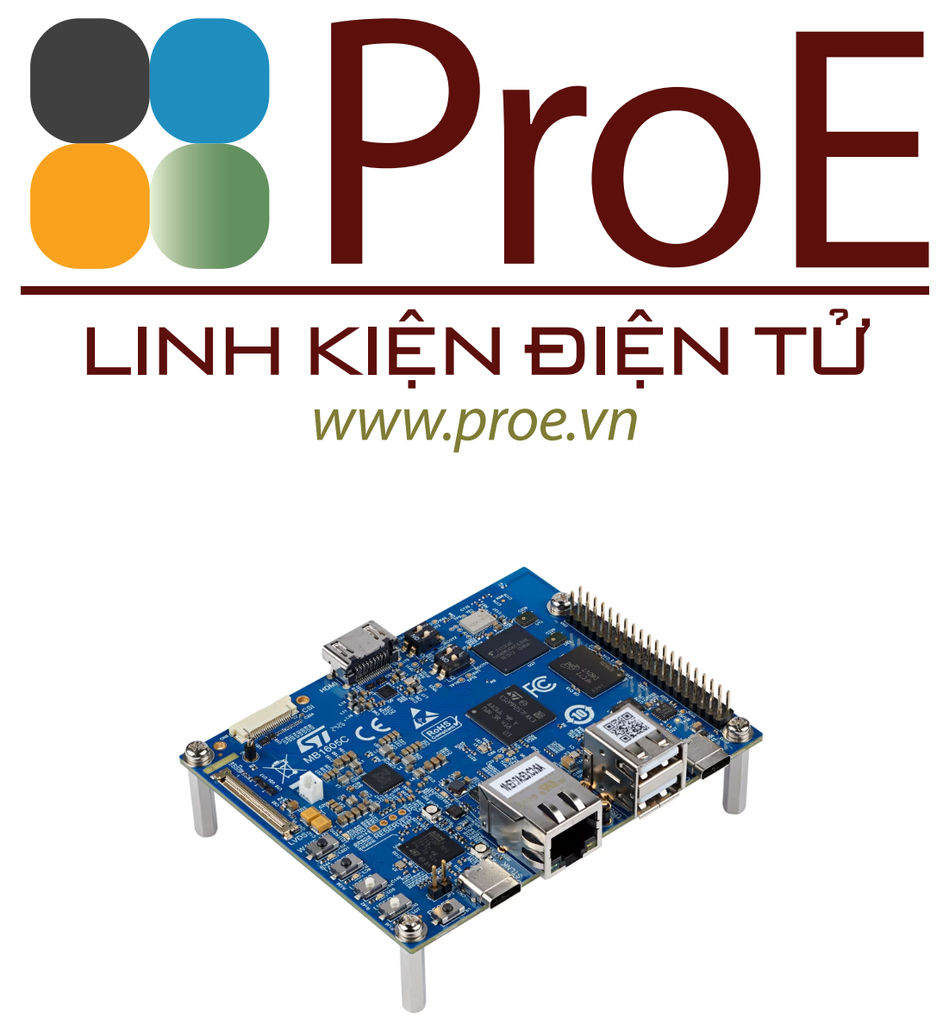

STM32MP257F-DK Discovery kit with STM32MP257F MPU

Description

The STM32MP257F-DK Discovery kit is designed as a complete demonstration and development platform for the STMicroelectronics STM32MP257FAK3 based on the Arm^® Cortex^® A35 and M33.

The product leverages the capabilities of STM32MP2 series microprocessors to allow users to develop applications using STM32 MPU OpenSTLinux Distribution software for the main processor (Arm^® dual core Cortex^®‑A35) and STM32CubeMP2 software for the coprocessor (Arm^® Cortex^®‑M33).

The product includes an ST-LINK embedded debug tool, LEDs, push-buttons, 1 Gbit/s Ethernet, one USB3 USB Type-C^® PD, two stacked USB 2.0 HS Type-A, one LCD LVDS display connector, one HDMI connector, one camera connector, microSD™ card, Wi‑Fi^® 802.11b/g/n, Bluetooth^® Low Energy v4.1, and eMMC. To expand the functionality of STM32MP257F-DK, one GPIO expansion connector is also available for Raspberry Pi^® shields.

• All features

  • STM32MP257FAK3 microprocessor based on the Arm^® dual‑core Cortex^®‑A35 at 1.5 GHz and Cortex^®‑M33 at 400 MHz in a VFBGA424 package
  • STMicroelectronics power management STPMIC25
  • 32‑Gbit LPDDR4 DRAM
  • 64-Gbit eMMC v5.1
  • 1‑Gbit/s Ethernet (RGMII)
  • Two USB 2.0 high speed
  • USB 3.0 SuperSpeed PD (DRP/DRD)
  • Wi‑Fi^® 802.11b/g/n
  • Bluetooth^® Low Energy v4.1
  • Four user LEDs
  • Two user, one tamper, and one reset push-buttons
  • Wake-up button
  • Four boot pin switches
  • Board connectors:
    • Ethernet RJ45
    • Two stacked USB 2.0 HS Type-A
    • USB 3.0 USB Type-C^® PD
    • microSD™ card holder
    • Dual-lane MIPI CSI-2^® camera module expansion connector
    • HDMI^®
    • LVDS
    • GPIO expansion connector
    • VBAT for power backup
  • On-board STLINK-V3EC:
    • Debugger with USB re-enumeration capability: Virtual COM port and debug port
    • Board power source through USB Type-C^® (recommended to connect to 5 V/3 A USB host port)
  • Mainlined open-source Linux^® STM32 MPU OpenSTLinux Distribution and STM32CubeMP2 software with examples
  • Linux^® Yocto Project^®, Buildroot, and STM32CubeIDE as development environments
