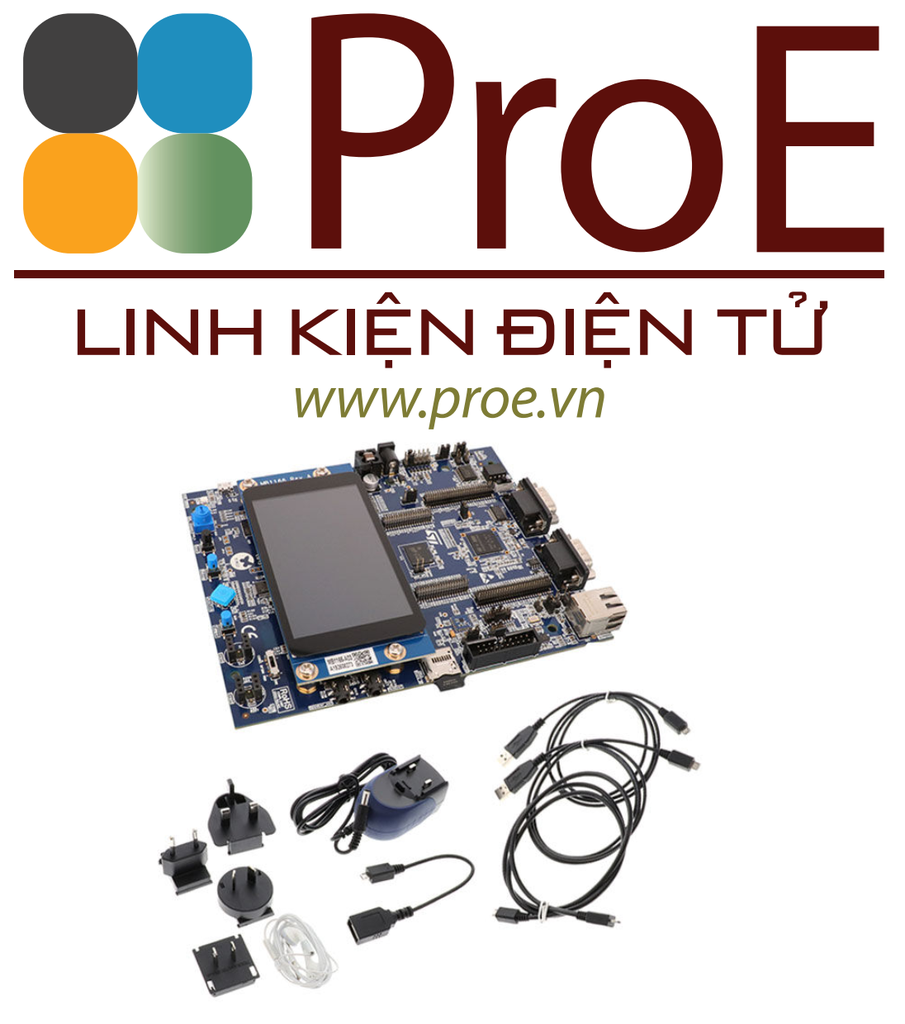

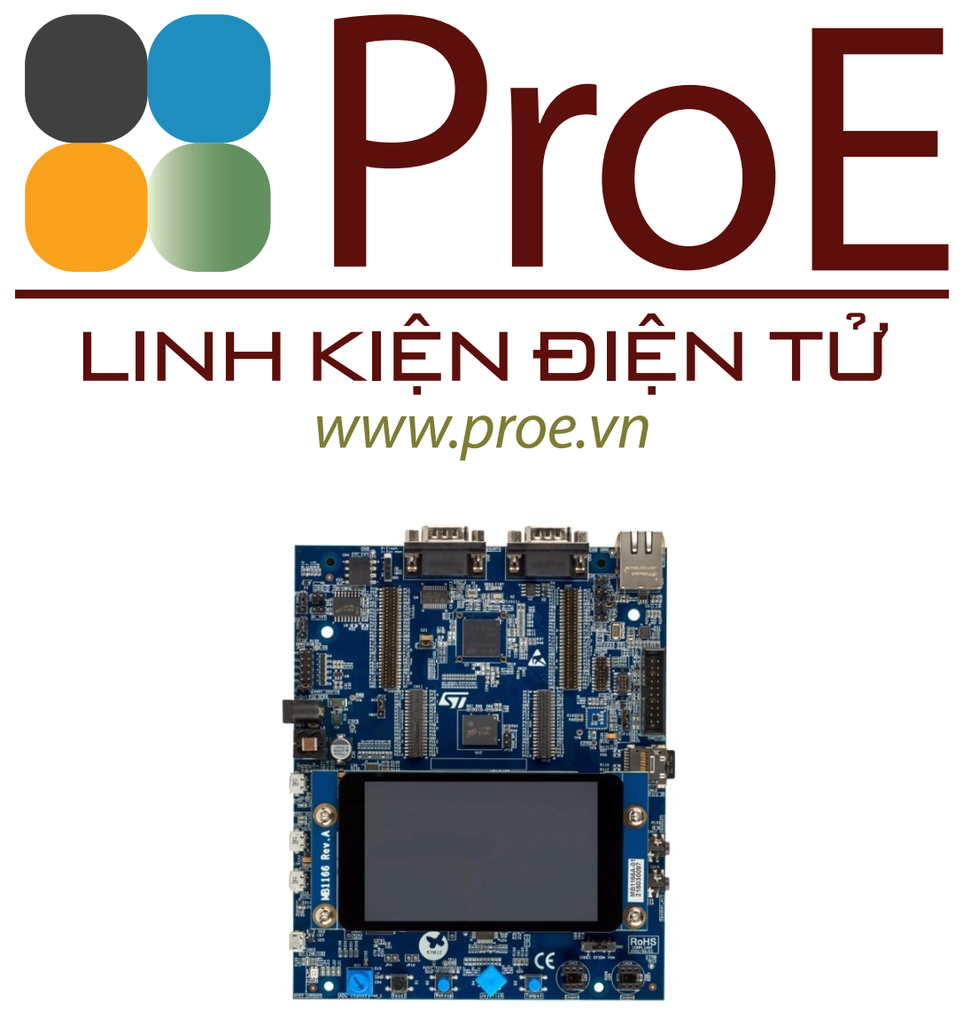

STM32H757I-EVAL Evaluation board with STM32H757XI MCU

The STM32H747I-EVAL and STM32H757I-EVAL Evaluation boards (STM32H7x7I-EVAL) are high-end development platforms for the STM32H747XI and STM32H757XI microcontrollers, respectively. They are based on the high-performance Arm^® Cortex^®-M4 and Cortex^®-M7 cores. The STM32H7x7I-EVAL Evaluation boards provide access to all the STM32 peripherals for user applications, and include an embedded STLINK-V3E debugger/programmer.
The full range of the STM32H7x7I-EVAL hardware features helps develop applications and evaluate all peripherals: USB OTG HS and FS, Ethernet, FD-CAN, USART, Audio DAC and ADC, digital microphone, SRAM, SDRAM, NOR Flash memory, Twin Quad-SPI Flash memory, microSD™ 3.0 card, 4" 480×800 TFT color LCD with MIPI DSI^® interface and capacitive touchpanel, and cryptographic hardware accelerator (available only on STM32H757XI devices) .
The expansion connectors provide an easy way to add specialized features, while ETM trace is supported through external probes.

All features

• STM32H747XIH6 and STM32H757XIH6 microcontrollers with 2 Mbytes of Flash memory and 1 Mbyte of RAM in TFBGA240+25 package
• 4” 480×800 TFT color LCD with MIPI DSI^® interface and capacitive touchpanel
• Ethernet compliant with IEEE-802.3-2002
• USB OTG_HS and OTG_FS
• I²C compatible serial interface
• RTC with rechargeable backup battery
• SAI audio DAC
• ST-MEMS digital microphones
• 8-Gbyte (or more) SDIO3.0 interface microSD™ card
• 8 M×32bit SDRAM, 1 M×16bit SRAM and 8 M×16bit NOR Flash memory

• 1-Gbit Twin Quad-SPI NOR Flash memory or two 512-Mbit Quad-SPI NOR Flash memories
• Potentiometer
• 4 color user LEDs
• Reset, wakeup, tamper or key buttons
• Joystick with 4-direction control and selector
• Board connectors
  • Power jack
  • 3 USB interfaces with Micro-AB connector
  • RS-232 communications
  • Ethernet RJ45
  • FDCAN compliant connection
  • Stereo headset jack including analog microphone input
  • 2 audio jacks for external speakers
  • microSD™ card
  • JTAG/SWD and ETM trace
  • Extension connectors and memory connectors for daughterboard or wire-wrap board
• Flexible power-supply options: ST-LINK USB V_BUS or external sources
• On-board STLINK-V3E debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
• Comprehensive free software libraries and examples available with the STM32Cube MCU Package
• Support of a wide choice of Integrated Development Environments (IDEs) including IAR™, Keil^®, GCC-based IDEs
