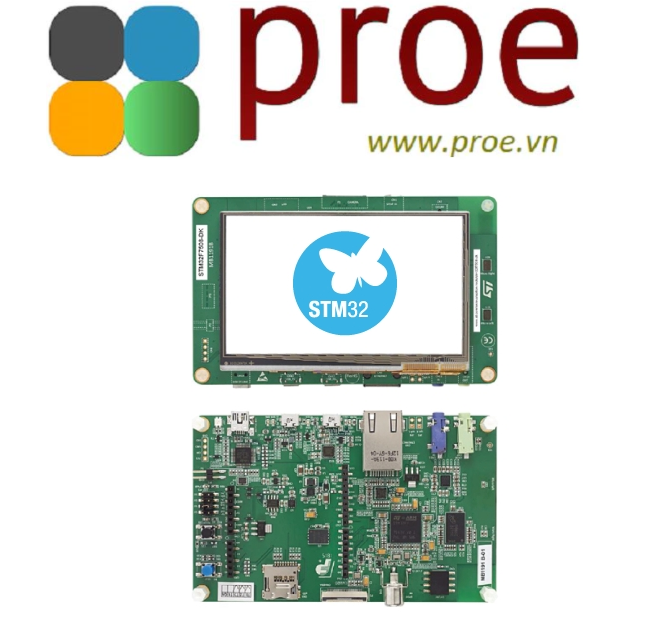

STM32F7508-DK Discovery kit with STM32F750N8 MCU

Description

The STM32F7508-DK Discovery kit allows users to develop and share applications with the STM32F7 Series microcontrollers based on the Arm^® Cortex^®-M7 core.

The Discovery kit enables a wide diversity of applications taking benefit from audio, multi-sensor support, graphics, security, video, and high-speed connectivity features.
The ARDUINO^® connectivity support provides unlimited expansion capabilities with a large choice of specialized add-on boards.

• All features

  • STM32F750N8H6 microcontroller featuring 64 Kbytes of Flash memory and 340 Kbytes of RAM, in BGA216 package
  • 4.3-inch 480x272 color LCD-TFT with capacitive touch screen
  • Ethernet connector compliant with IEEE-802.3-2002
  • USB OTG HS FS
  • SAI audio codec
  • 2 ST-MEMS digital microphones
  • 128-Mbit Quad-SPI Flash memory
  • 128-Mbit SDRAM (64 Mbits accessible)
  • 1 user and reset push-button
  • Board connectors:
    • Camera 8 bit
    • USB with Micro-AB
    • Ethernet RJ45
    • SPDIF RCA input
    • Audio jack for external speakers and microphone
    • microSD™ card
    • ARDUINO^® Uno V3 expansion connectors
    • RF-EEPROM daughterboard expansion connectors
  • Flexible power supply options:
    • ST-LINK USB V_BUS or external sources
  • Power supply output for external applications: 3.3 V or 5 V
  • On-board ST-LINK/V2-1 debugger/programmer with USBre-enumeration capability: mass storage, Virtual COM port and debug port
  • Comprehensive free software libraries and examples available with the STM32Cube MCU Package
  • Support of by a wide choice of Integrated Development Environments (IDEs) including IAR™, Keil^® and STM32CubeIDE
