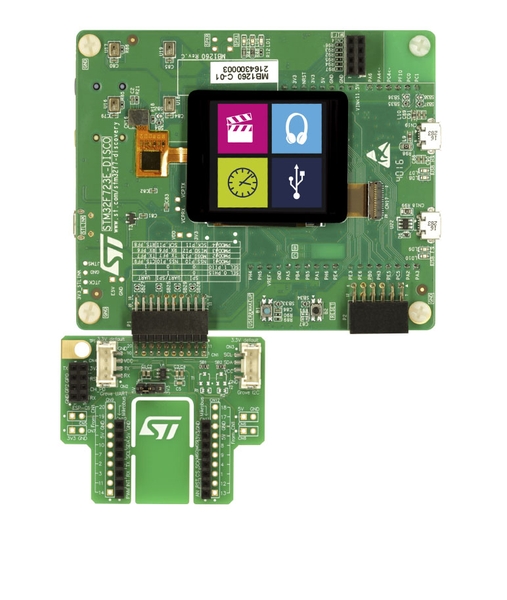

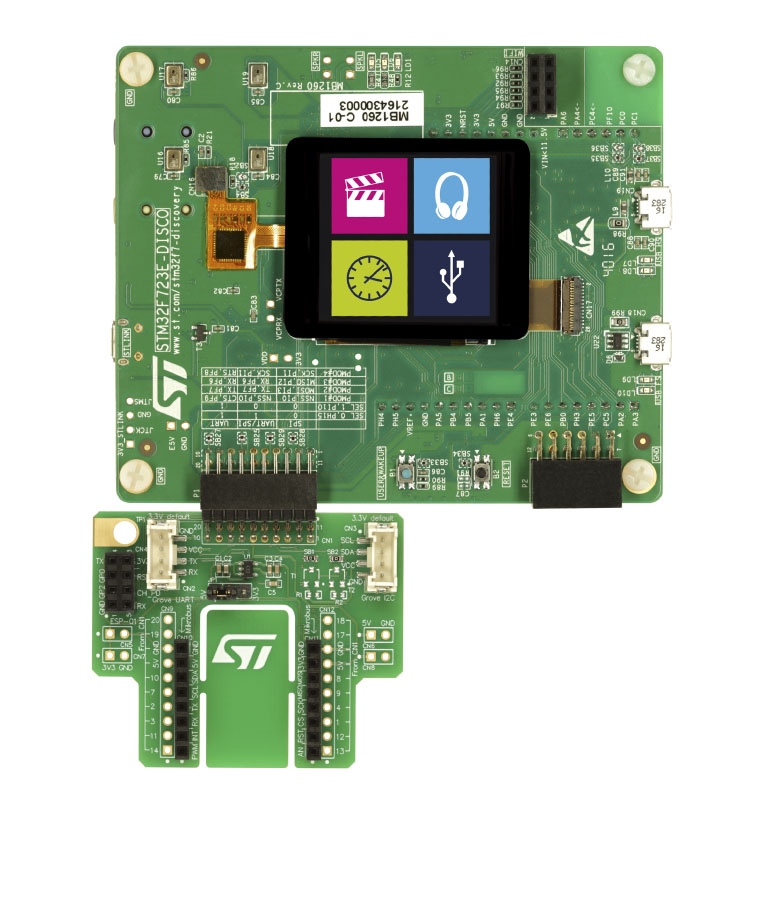

STM32F723E DISCOVERY

The 32F723EDISCOVERY Discovery kit allows users to develop applications with the microcontrollers of the STM32F7 Series, based on ARM^®Cortex^®-M7 core.

The 32F723EDISCOVERY Discovery kit enables a wide diversity of applications, taking benefit from audio, multi-sensor support, graphics, security, video and high-speed connectivity features.

The PMOD, STMod+ and Arduino^™Uno V3 connectivity support provides unlimited expansion capabilities with a large choice of specialized add-on boards.

Key Features

• STM32F723IEK6 microcontroller featuring 512 Kbytes of Flash memory and 176+16 Kbytes of RAM, in BGA176 package
• On-board ST-LINK/V2-1 supporting USB re-enumeration capability
• USB ST-LINK functions:
• TFT LCD 240x240 pixels with touch panel
• SAI audio codec
• Stereo 3.5mm jack connector for audio line input
• Stereo 3.5mm jack connector for headphone
• Stereo speaker outputs
• Four ST-MEMS microphones
• Two push-buttons (user and reset)
• 512-Mbit Quad-SPI Flash memory
• 8-Mbit external PSRAM
• USB OTG HS with Micro-AB connector
• USB OTG FS with Micro-AB connector
• Five power supply options:
• Power supply output for external applications: 3.3V or 5V
• ESP-01 Wi-Fi module connector
• Arduino^™ Uno V3 connectors
• PMOD connector
• STMod+ connector
• Fanout board (included inside the board package) compatible with MikroElektronika Click boards, ESP-01 and Seeed Studio^™ Grove modules. Provision for headers for direct breadboard plug-in.
• Comprehensive free software including a variety of examples, part of the STM32Cube package
• Support of a wide choice of integrated development environments
