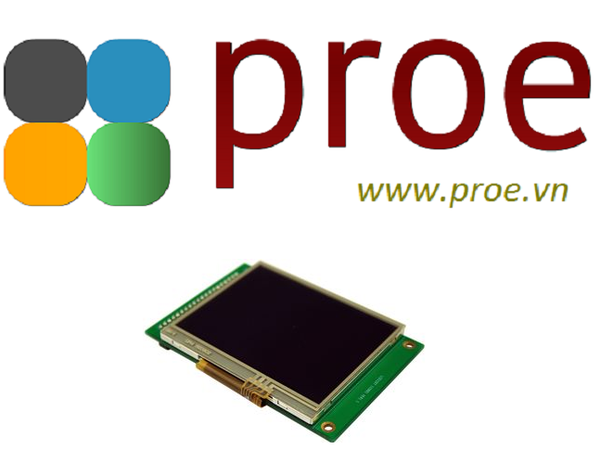

STM32F4DIS-LCD - Daughter Board, LCD Module, 3.5Inch Touch LCD Module, SSD2119 Driver IC, 320x240 Resolution

Development Kits and Tool Detail

• Dev Kit Description

  This set of 3 boards expands the functionality of the STM32F4 Discovery kit. A base board, connected to the STM32 F4 Discovery provides Ethernet connectivity, a micro SD Card™ slot and extension connectors for the 2 other boards, and provides easy access to features such as UART, SPI, CAN and so on. A digital camera board featuring a 1.3 Megapixel CMOS sensor, and a 3"5 LCD board with touch screen capability connect to the base board to form a complete system.

• Dev Kit Features

  • Base boardMicro SD Card™ slot10/100 Ethernet with IEEE 1588v2 (RJ45 connector)Connector for camera boardConnector for LCD boardConnector with UART, I2C, SPI, CAN, PWM and GPIOs
  • 3"5 LCD boardDriving IC: SSD2119Display format: 320 * 240Color: 262K colorsBacklight: PWM controlInterface: 16-bit 8080 parallel system interfaceTouch screen: 4-wire resistive touch screen
  • Camera boardSignal system: CMOS 1.3 MegapixelResolution: Up to 1280 * 1024Supports still photosFrame rate: 15 fps for SXGA, 30 fps for VGA and CIF.

• Dev Kit Additional Information

  Technical Documentation:

  http://www.st.com/st-web-ui/static/active/en/resource/technical/document/data_brief/DM00072107.pdf

  User Manual:

  http://www.st.com/st-web-ui/static/active/en/resource/technical/document/user_manual/CD00046665.pdf

  http://www.st.com/st-web-ui/static/active/en/resource/technical/document/user_manual/CD00047489.pdf

  http://www.st.com/st-web-ui/static/active/en/resource/technical/document/user_manual/CD00047495.pdf

  http://www.st.com/st-web-ui/static/active/en/resource/technical/document/user_manual/CD00050624.pdf

  http://www.st.com/st-web-ui/static/active/en/resource/technical/document/user_manual/CD00053882.pdf
