Dev Kit Description
This set of 3 boards expands the functionality of the STM32F4 Discovery kit. A base board, connected to the STM32 F4 Discovery provides Ethernet connectivity, a micro SD Card™ slot and extension connectors for the 2 other boards, and provides easy access to features such as UART, SPI, CAN and so on. A digital camera board featuring a 1.3 Megapixel CMOS sensor, and a 3"5 LCD board with touch screen capability connect to the base board to form a complete system.
Dev Kit Features
- Base boardMicro SD Card™ slot10/100 Ethernet with IEEE 1588v2 (RJ45 connector)Connector for camera boardConnector for LCD boardConnector with UART, I2C, SPI, CAN, PWM and GPIOs
- 3"5 LCD boardDriving IC: SSD2119Display format: 320 * 240Color: 262K colorsBacklight: PWM controlInterface: 16-bit 8080 parallel system interfaceTouch screen: 4-wire resistive touch screen

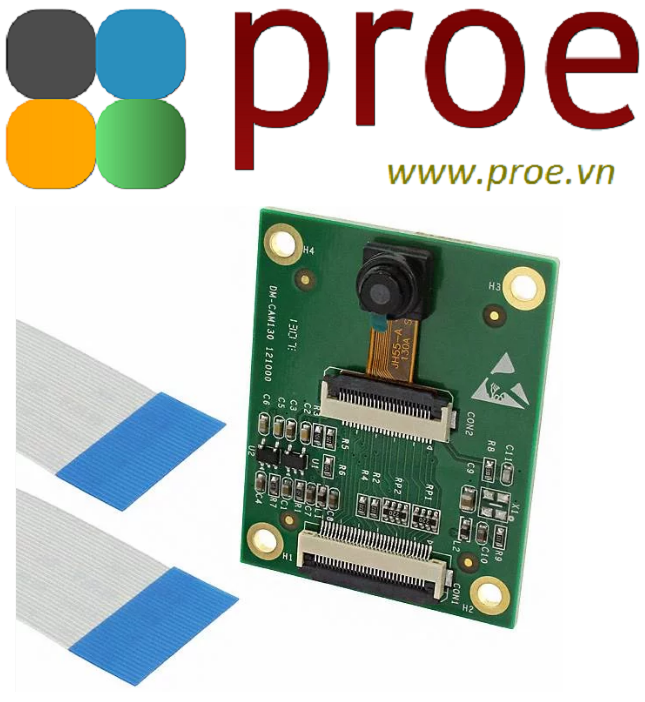

- Camera boardSignal system: CMOS 1.3 MegapixelResolution: Up to 1280 * 1024Supports still photosFrame rate: 15 fps for SXGA, 30 fps for VGA and CIF.
Dev Kit Additional Information
