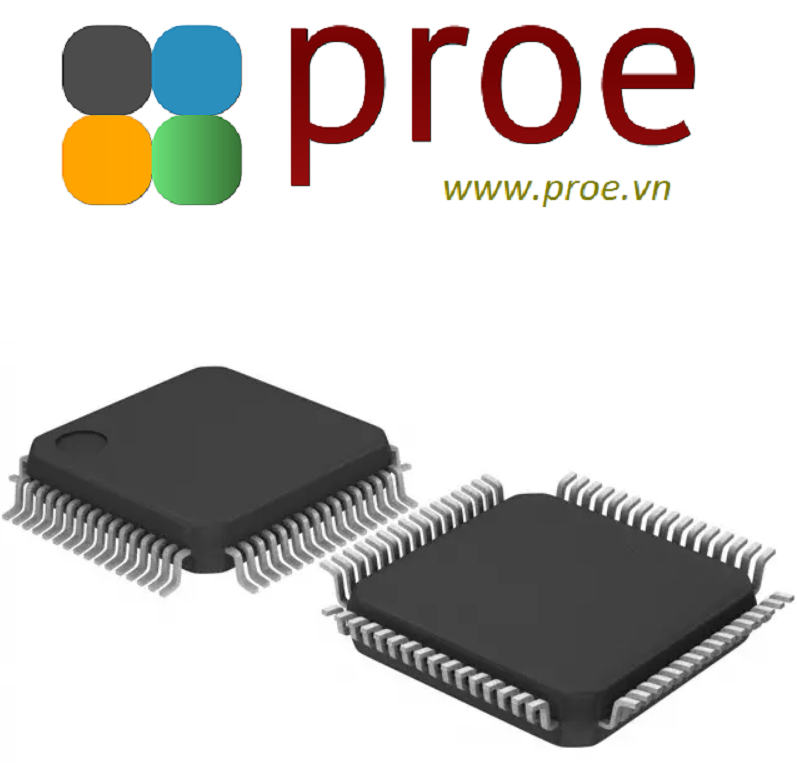

STM32F103RGT6 MCU 32-bit ARM Cortex M3 RISC 1MB Flash 2.5V/3.3V 64-Pin LQFP Tray
- Mã sản phẩm: STM32F103RGT6
- Nhà sản xuất: STMicroelectronics
- Website hỗ trợ: https://www.proe.vn
250.000₫
STM32F103RGT6 MCU 32-bit ARM Cortex M3 RISC 1MB Flash 2.5V/3.3V 64-Pin LQFP Tray
This STM32F103RGT6 microcontroller from STMicroelectronics is perfect for users that want a fast CPU. This microcontroller has an operating temperature range of -40 °C to 85 °C. It has a maximum clock speed of 72 MHz. This device is based on the ARM Cortex M3 core architecture. This device has a typical operating supply voltage of 2.5|3.3 V. Its minimum operating supply voltage of 2 V, while its maximum is 3.6 V. Its flash program memory is 1024KB. This is a 32 bit processor. Its ADC resolution is 12/12/12, while its DAC resolution is 12/12.
Product Technical Specifications
| EU RoHS | Compliant |
| ECCN (US) | 3A991.a.2 |
| Part Status | Active |
| HTS | 8542.31.00.01 |
| Family Name | STM32F |
| Instruction Set Architecture | RISC |
| Device Core | ARM Cortex M3 |
| Core Architecture | ARM |
| Maximum CPU Frequency (MHz) | 72 |
| Maximum Clock Rate (MHz) | 72 |
| Data Bus Width (bit) | 32 |
| Program Memory Type | Flash |
| Program Memory Size | 1MB |
| RAM Size | 96KB |
| Programmability | Yes |
| Interface Type | CAN/I2C/I2S/SPI/USART/USB |
| Number of I/Os | 51 |
| No. of Timers | 14 |
| PWM | 2 |
| Number of ADCs | Triple |
| ADC Channels | 16/16/16 |
| ADC Resolution (bit) | 12/12/12 |
| Number of DACs | Dual |
| DAC Channels | 2/2 |
| DAC Resolution (bit) | 12/12 |
| USART | 5 |
| UART | 0 |
| USB | 1 |
| SPI | 3 |
| I2C | 2 |
| I2S | 2 |
| CAN | 1 |
| Ethernet | 0 |
| Watchdog | 2 |
| Special Features | CAN Controller |
| Minimum Operating Supply Voltage (V) | 2 |
| Typical Operating Supply Voltage (V) | 3.3|2.5 |
| Maximum Operating Supply Voltage (V) | 3.6 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Supplier Temperature Grade | Industrial |
| Packaging | Tray |
| CECC Qualified | No |
| Pin Count | 64 |
| Supplier Package | LQFP |
| Standard Package Name | QFP |
| Mounting | Surface Mount |
| Package Height | 1.4 |
| Package Length | 10 |
| Package Width | 10 |
| PCB changed | 64 |
| Lead Shape | Gull-wing |
