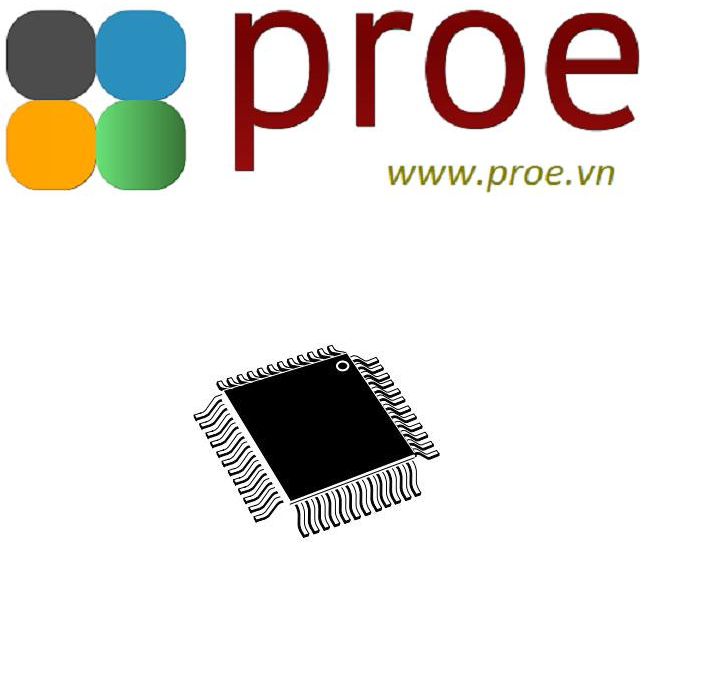

STM32F103CBT6 MCU 32-bit ARM Cortex M3 RISC 128KB Flash 2.5V/3.3V 48-Pin LQFP Tray
- Mã sản phẩm: STM32F103CBT6
- Nhà sản xuất: STMicroelectronics
- Website hỗ trợ: https://www.proe.vn
145.000₫
STM32F103CBT6 MCU 32-bit ARM Cortex M3 RISC 128KB Flash 2.5V/3.3V 48-Pin LQFP Tray
A microcontroller is used in modern day control systems, this STM32F103CBT6 microcontroller from STMicroelectronics is ideal for you. This microcontroller has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a maximum clock speed of 72 MHz. This device has a typical operating supply voltage of 2.5|3.3 V. Its minimum operating supply voltage of 2 V, while its maximum is 3.6 V. Its ADC resolution is 12/12. This device is based on the ARM Cortex M3 core architecture. Its flash program memory is 128KB. This is a 32 bit processor.
Product Technical Specifications
| EU RoHS | Compliant |
| ECCN (US) | 3A991.a.2 |
| Part Status | Active |
| HTS | 8542.31.00.01 |
| PCB changed | 48 |
| Mounting | Surface Mount |
| Package Height | 1.4 |
| Package Width | 7 |
| Package Length | 7 |
| Lead Shape | Gull-wing |
| Family Name | STM32F |
| Instruction Set Architecture | RISC |
| Device Core | ARM Cortex M3 |
| Core Architecture | ARM |
| Maximum CPU Frequency (MHz) | 72 |
| Maximum Clock Rate (MHz) | 72 |
| Data Bus Width (bit) | 32 |
| Program Memory Type | Flash |
| Program Memory Size | 128KB |
| RAM Size | 20KB |
| Programmability | Yes |
| Interface Type | CAN/I2C/SPI/USART/USB |
| Number of I/Os | 37 |
| No. of Timers | 4 |
| PWM | 1 |
| Number of ADCs | Dual |
| ADC Channels | 10/10 |
| ADC Resolution (bit) | 12/12 |
| USART | 3 |
| UART | 0 |
| USB | 1 |
| SPI | 2 |
| I2C | 2 |
| I2S | 0 |
| CAN | 1 |
| Ethernet | 0 |
| Watchdog | 2 |
| Parallel Master Port | No |
| Real Time Clock | Yes |
| Special Features | CAN Controller |
| Minimum Operating Supply Voltage (V) | 2 |
| Typical Operating Supply Voltage (V) | 2.5|3.3 |
| Maximum Operating Supply Voltage (V) | 3.6 |
| Maximum Power Dissipation (mW) | 363 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Supplier Temperature Grade | Industrial |
| Packaging | Tray |
| CECC Qualified | No |
| Pin Count | 48 |
| Standard Package Name | QFP |
| Supplier Package | LQFP |
