STM32 MCU core board, STM32F407IGT6, IO expander, USB HS/FS, Ethernet, NandFlash

  • Mã sản phẩm: XCore407I
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
1.150.000₫
DESCRIPTION

STM32 MCU core board, STM32F407IGT6, IO expander, USB HS/FS, Ethernet, NandFlash

Overview

XCore407I is an STM32 MCU core board that features the STM32F407IGT6 on board.

  • Clock circuit, USB power management
  • Onboard devices: USB HS PHY、Ethernet PHY、1G Bit NandFlash
  • Connectors:USB HS (mini / type A), USB FS (mini), Ethernet (RJ45)
  • All the idle I/O ports are accessible on the pin headers
  • 2.0mm pin header pitch, smaller size, easier to integrate into user system

Note : please consider the EVK407I, which supports easily programing/debugging.


What's On Board

STM32F407IGT6 development board on board resource

  1. STM32F407IGT6:the high performance STM32 MCU which features:
    • Core: Cortex-M4 32-bit RISC
    • Feature: a full set of single-cycle DSP instructions
    • Operating Frequency: 168MHz, 210 DMIPS/1.25 DMIPS/MHz
    • Operating Voltage: 1.8V-3.6V
    • Package: LQFP176
    • Memories: 1024kB Flash, 192+4kB SRAM
    • MCU communication Interfaces:
      • 3 x SPI, 4 x USART, 2 x UART, 2 x I2S, 3 x I2C
      • 1 x FSMC, 1 x SDIO, 2 x CAN
      • 1 x USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, ULPI and on-chip full-speed PHY
      • 1 x 10/100 Ethernet MAC
      • 1 x 8 to 14-bit parallel camera interface
    • AD & DA converters: 3 x AD (12-bit, 1μs, shares 24 channels); 2 x DA (12-bit)
    • Debugging/Programming: supports JTAG/SWD (serial wire debug) interfaces, supports IAP
  2. MIC2075-2, onboard USB FS power management device
  3. AMS1117-3.3, 3.3V voltage regulator
  4. K9F1G08U0E, 1G Bit NandFlash
  5. DP83848, Ethernet PHY
  6. MIC2075-1, onboard USB HS power management device
  7. USB3300, USB HS PHY
  8. Power supply switch, powered from 5Vin or USB connection
  9. Boot mode switch, for configuring BOOT0 pin
  10. Power indicator
  11. USB FS LED
  12. USB HS LED
  13. Reset button
  14. 8M crystal, MCU clock, enables the MCU run at higher speed by frequency multiplication
  15. 24M crystal, USB3300 clock
  16. 50M crystal, DP83848 clock
  17. 32.768K crystal, for internal RTC with calibration
  18. Ethernet connector
  19. USB FS mini connector
  20. USB HS mini connector
  21. USB HS type A connector
  22. MCU pins expander, VCC, GND and all the idle I/O ports are accessible on expansion connectors for further expansion
  23. USB OTG/HOST jumper
  24. VREF/VBAT jumper
  25. Ethernet I/O selection solder joint
  26. USB HS I/O selection solder joint
  27. PDR selection solder joint: 1.8-3.6V, -40~105℃ OR 1.7-3.6V, 0~70℃

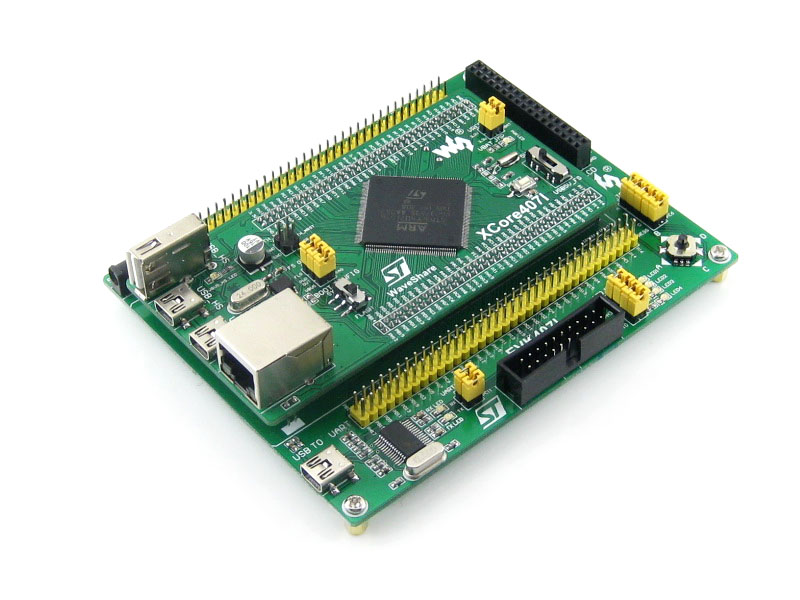

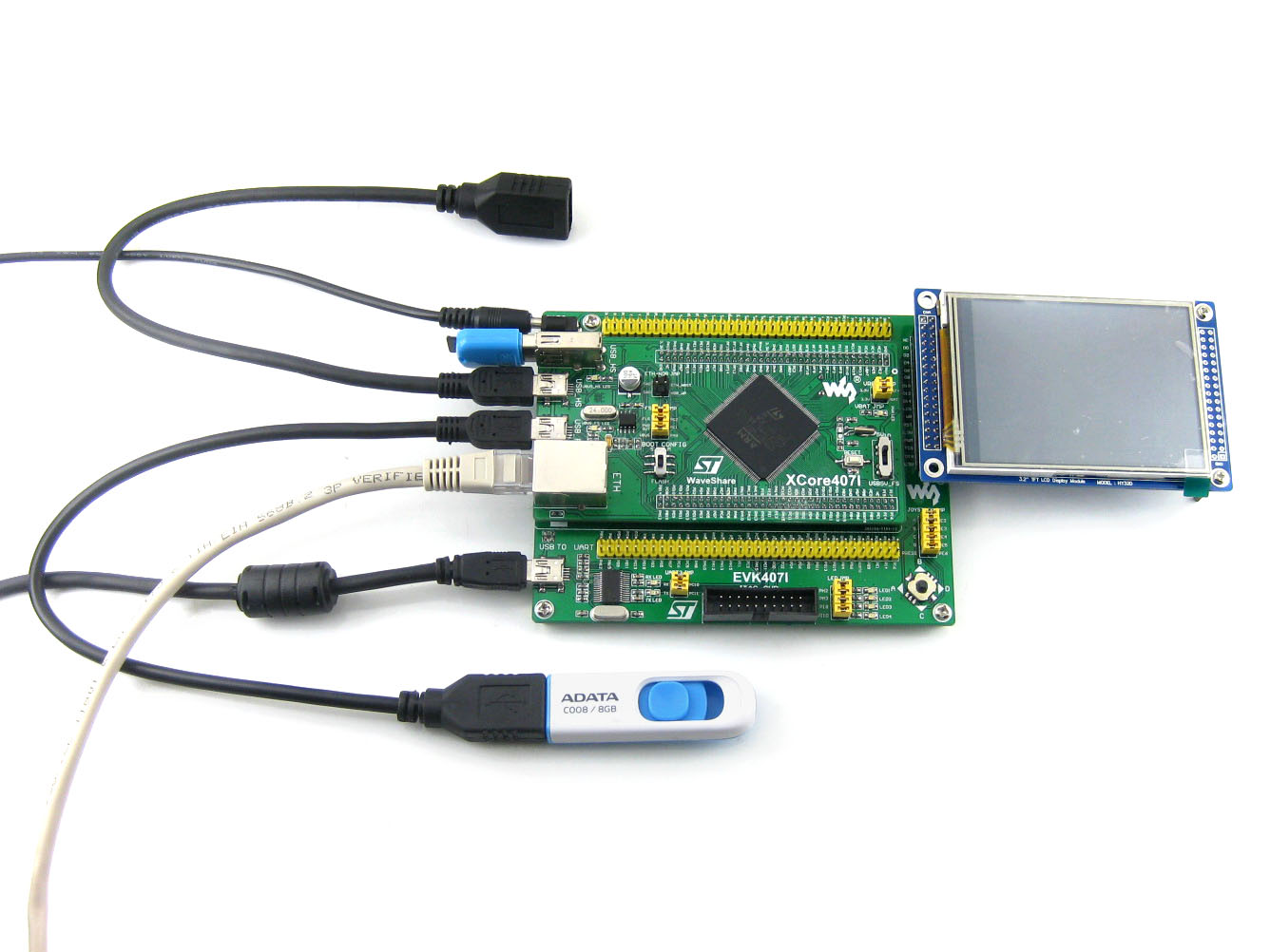

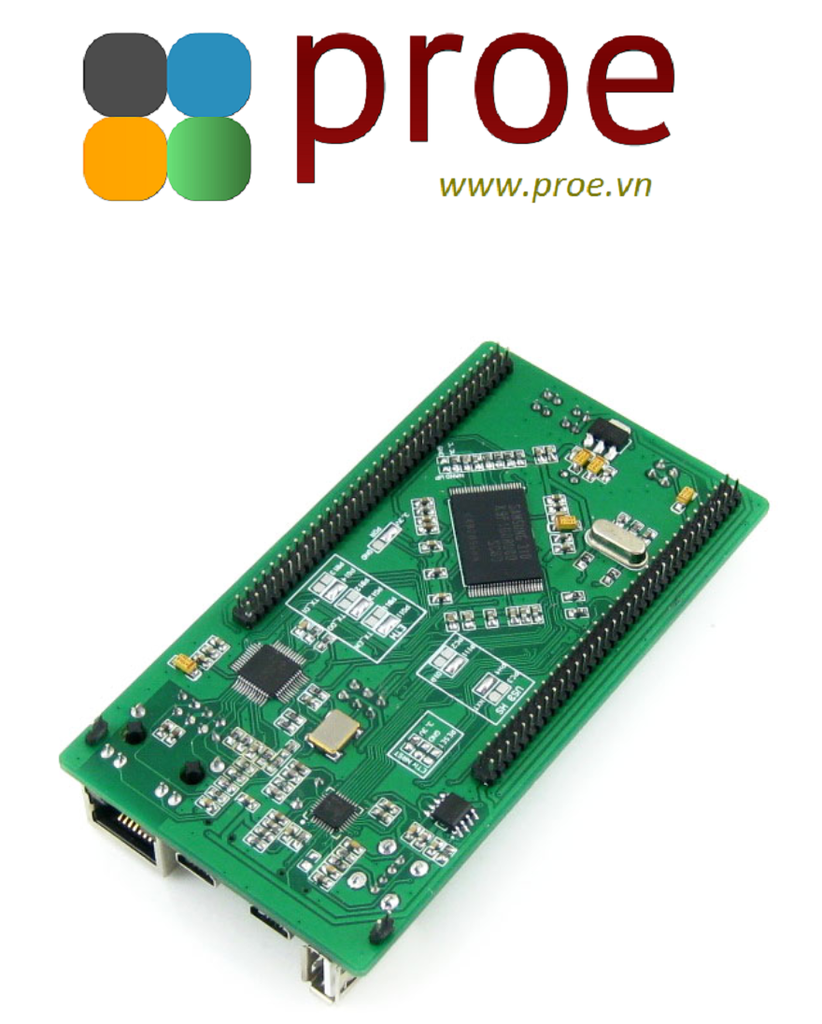

Photos

dividerdividerdividerdivider


Note:
XCore407I does NOT integrate programing/debugging interface.
Mother board and accessories in the photos are NOT included in the price.


Dimensions

STM32 MCU core board dimensions


Development Resources

  • Related software (KEIL etc.)
  • Examples in C
  • Schematic (PDF)
  • Development documentations

Wiki: www.waveshare.com/wiki/XCore407I

PACKAGE CONTENT

Weight: 0.123 kg

  1. XCore407I development board x 1
  2. USB type A to Mini-B cable x 1
  3. Software CD x 1

1

2

3
