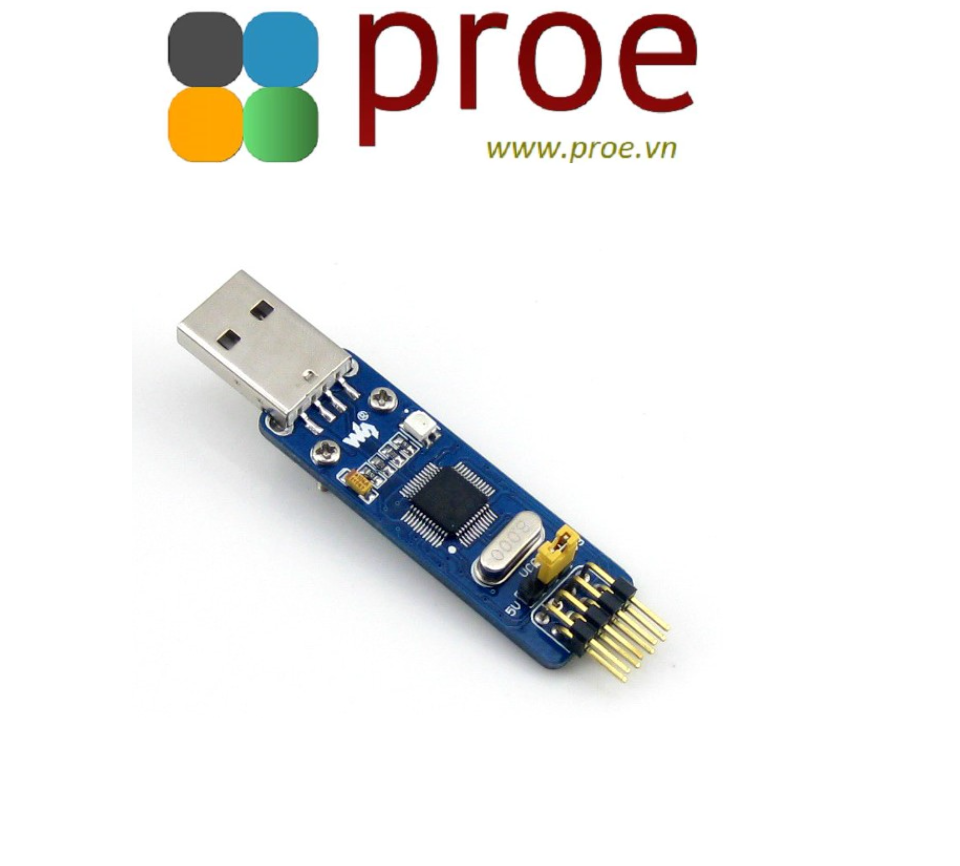

Mini ST-LINK/V2, In-Circuit Debugger/Programmer For STM8 And STM32
Mini ST-LINK/V2 on a small single board, an extreme low cost solution for in-circuit debugger/programmer for STM8 and STM32.
COMPARE | ST-LINK/V2 (MINI) | ST-LINK/V2 | ST-LINK | REMARKS |
---|---|---|---|---|
SWD voltage range | 1.65V - 3.6V | 1.65V - 3.6V | 3V - 3.6V | ST-LINK/V2 and ST-LINK/V2 (mini) support STM32 low voltage devices |
SWIM voltage range | 1.65V - 5.5V | 1.65V - 5.5V | 1.65V - 5.5V | |
Supports SWV | NO | YES | NO | For the moment, only STM32 supports SWV while STM8 doesn't |
Debug interfaces | 2 | 2 | 1 | ST-LINK/V2 and ST-LINK/V2 (mini) support STM8/STM32 with separated interfaces |
LED indicator | Dual color LED | Dual color LED | Red LED | Dual color LED allows indicating more status |
Fuse | YES | NO | NO | Fuse for avoid harming by short circuit |
While connecting the ST-LINK/V2 (mini) to the computer through USB interface, the USB driver is required and should be installed correctly first.
Click on the link to download : ST-LINK/V2 USB driver for Windows 7, Vista and XP
The ST-LINK/V2 (mini) should be connected to the STM8 application via the SWIM interface.
DEBUGGER PIN | TARGET BOARD PIN | DESCRIPTION |
---|---|---|
VCC | MCU VCC | STM8 VCC |
SWIM | MCU SWIM | STM8 SWIM PIN |
GND | GND | STM8 GND |
RST | MCU RESET | STM8 RESET PIN |
The ST-LINK/V2 (mini) should be connected to the STM32 application via the SWD interface.
DEBUGGER PIN | TARGET BOARD PIN | DESCRIPTION |
---|---|---|
VCC | MCU VCC | STM32 VCC |
SWDIO | MCU SWDIO | STM32 SWD SWDIO |
GND | GND | STM32 GND |
SWCLK | MCU SWCLK | STM32 SWD SWCLK |
Please note that the VCC and GND should be connected correctly to avoid any harm to the ST-LINK/V2 (mini).
Wiki: www.waveshare.com/wiki/ST-LINK/V2_(mini)
