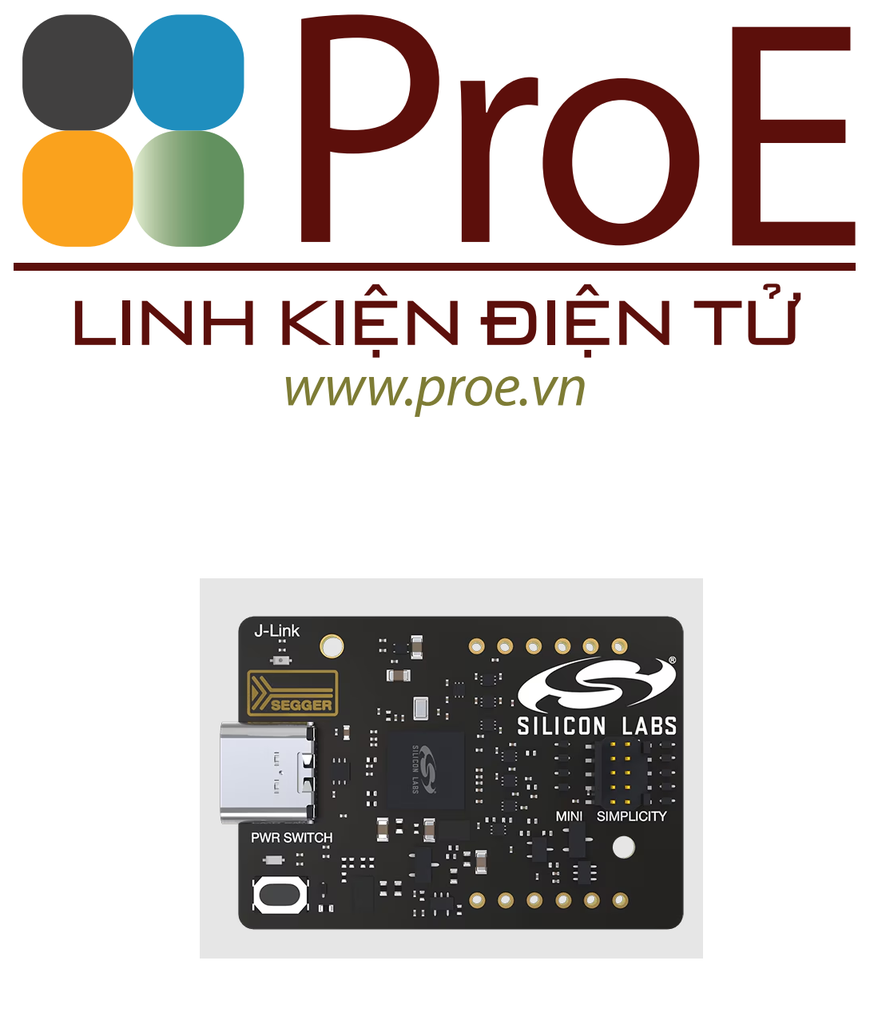

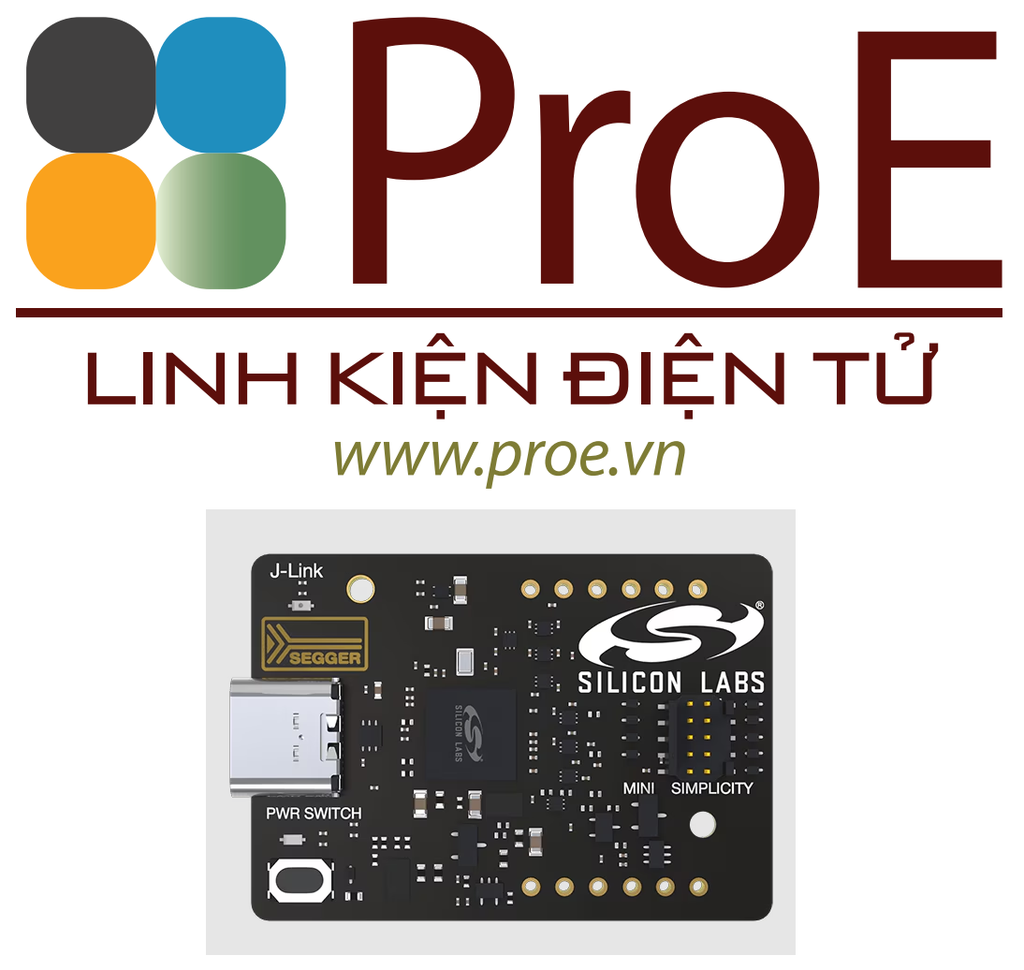

The Simplicity Link Debugger is a tool designed to debug and program our 32-bit and 8-bit devices on custom boards. The J-Link debugger enables programming and debugging on the target device over USB, through our Mini Simplicity interface. A virtual COM port interface (VCOM) provides an easy-to-use serial port connection over USB. The Packet Trace Interface (PTI) offers invaluable debug information about transmitted and received packets in wireless links and an optional 3.3 V power supply to power the external target board. The board also has 12 break out pads which can be used for probing signals to and from the custom hardware.

Kit Features

• USB Type C
• Segger J-Link Debugger
• Support for 32-bit and 8-bit EFM/EFR devices
• Mini-simplicity connector
  • Serial Wire Debug interface (SWD) with SWO / Silicon Labs' 2-wire interface (C2)
  • Packet Traci Interface (PTI)
  • Virtual COM port (VCOM)
  • Optional targer voltage source

• Breakout pads to access all debugger signals
• Real-time debugging, breakpoints, memory access, and more

• Compatible with Simplicity Studio and Simplicity Commander

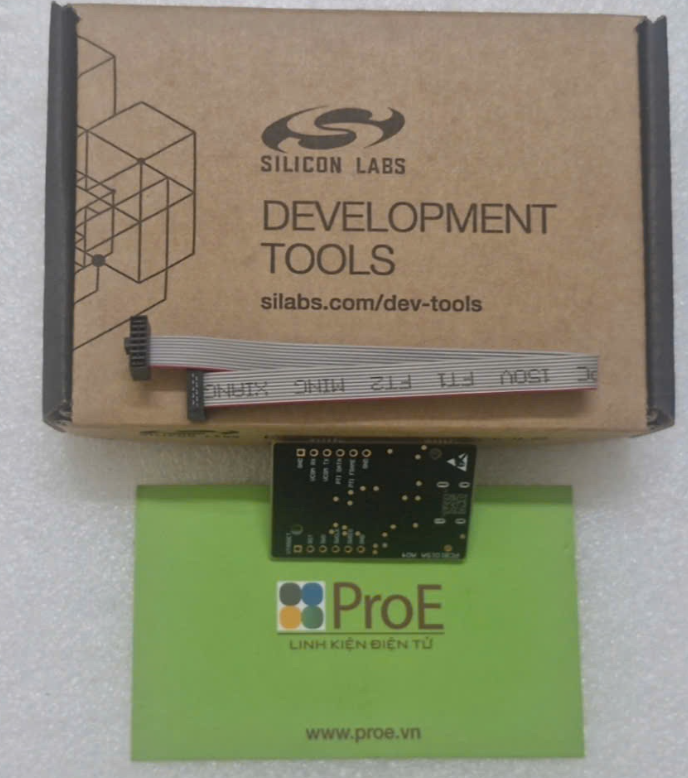

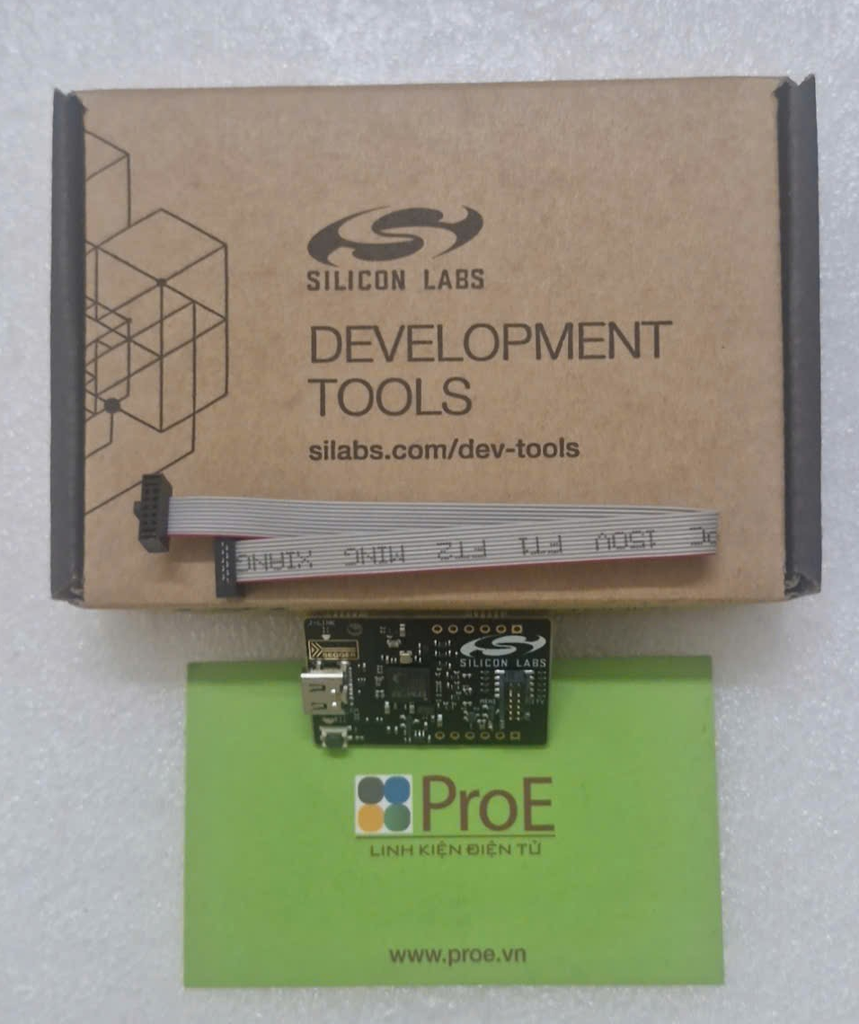

Kit Contents

• Debug Adapter board (BRD1015A)
• Mini-Simplicity Cable

Note: A USB Type C cable (not included) is necessary when using the USB Debug Adapte
