BG22-PK6022A

BG22 Bluetooth Dual Polarized Antenna Array Pro Kit

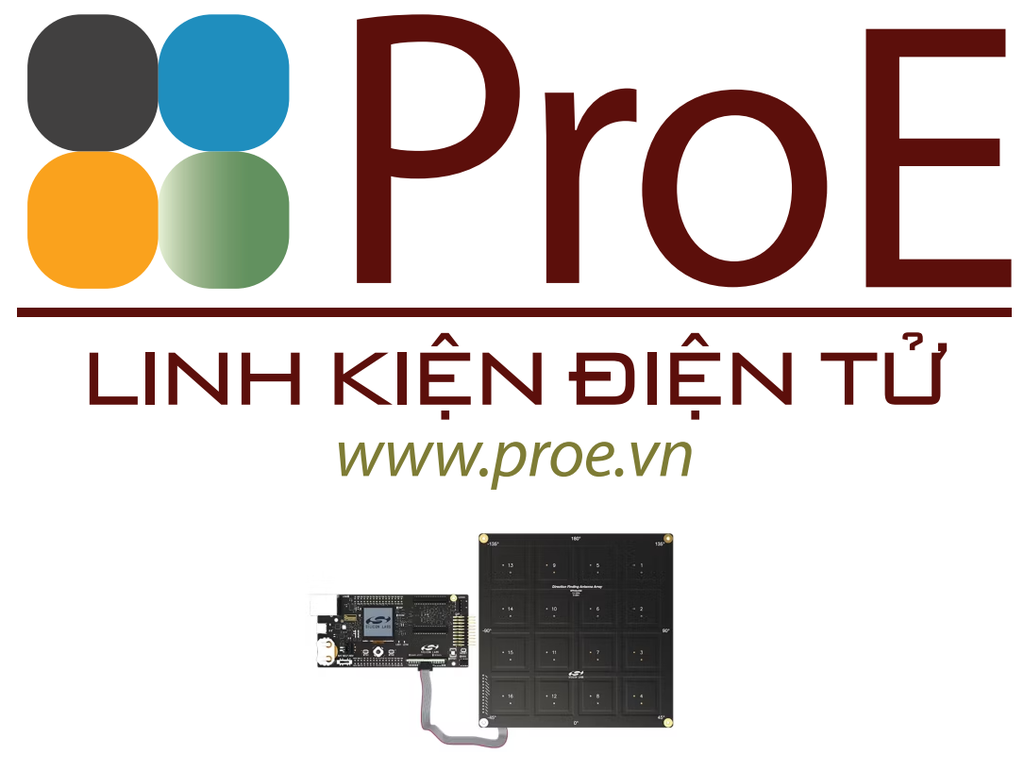

The BG22 Bluetooth dual polarize antenna array pro kit is designed for evaluation and development of Angle of Arrival (AoA) and Angle of Departure (AoD) support provided in the Bluetooth 5.1 specification. The Pro Kit includes a 4x4 Antenna Array board with reference designs and documentation provided to enable integration of this array into locator and gateway designs. The Pro Kit provides all the necessary tools for developing high-volume, scalable Direction-Finding solutions.

Kit Features

• 160 x 160 mm, 16 antenna array (4x4 matrix)
• Based on EFR32BG22 wireless SoC
• Reference design files providedÈ

Kit Contents

• 1x BRD4191A BG22 Dual Polarized Antenna Array Radio Board
• 1x BRD4002A Wireless Pro Kit Mainboard
• 1x BRD8010B Debug Adapter Board with Simplicity Mini+ Connector
• 1x SLCBL007 Mini+ Simplicity Cable
