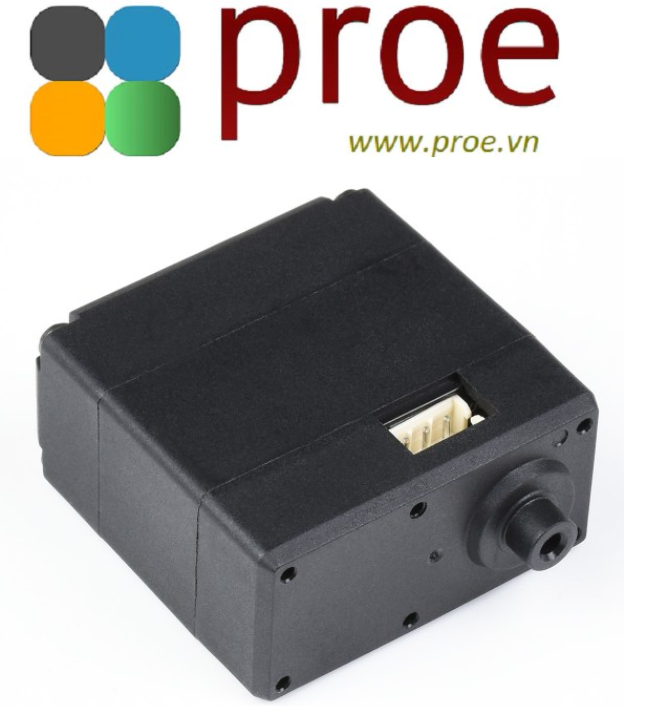

SC15 17kg Large Torque Programmable Serial Bus Servo

PACKAGE CONTENT

Weight: 0.07 kg

1. SC15 Servo x1

SC15 17kg Large Torque Programmable Serial Bus Servo

SC15 Programmable Serial Bus Servo

17kg.cm large torque

Specifications

Application Examples

• Servos will provide various feedback like position, speed, torque lock, operating mode (servo mode, servo motor mode, etc.) for advanced projects requiring closed-loop automatic control
• Ideal choice for building quadruped robots, hexapod walkers, robotic arms and other robotic projects requiring multiple servos

* images here are for reference ONLY

UART Serial Bus Control

Up To 253 Servos Can Be Connected In Series At The Same Time

Note: though one channel UART is able to control up to 253 bus servos, due to the high power of the servos, it is necessary to consider whether the power supply solution is enough when using too many servos. The servo driver board is NOT included, please purchase separately if needed.

Large Torque

Up To 17kg.Cm Torque On 8.4V Voltage, Suitable For Building Quadruped Robots, Hexapod Walkers, Robotic Arms And Other Robotic Projects Requiring Multiple Servos

for reference only, the JETANK robot is NOT included.

Two-Way Feedback

The Servos Will Provide Various Feedback Like Position, Load, Speed, And Input Voltage,
In Real Time

Dual Modes: Servo Or Motor

precise rotation angle control, on servo mode

continuous rotation, on motor mode

Details Introduction

Nylon and fiberglass case
Improved heat-resistance, size stability, rigidity, and mechanical performance

High strength aluminum servo wheels
Using T6061 aluminum alloy, good corrosion-resistance

High precision copper and steel gears
Ingenious combination of the two, lower operating noise, better stability and mechanical performance

Outline Dimensions
