RS232 TO RS485 (B)

PACKAGE CONTENT

Weight: 0.049 kg

1. RS232 TO RS485 (B) x1
2. Screwdriver x1

1

2

RS232 To RS485 Converter (B), Active Digital Isolator, Rail-Mount Support, 600W Lightningproof & Anti-Surge, Multi-Isolation Protection

Rail-Mount RS232 To RS485 (B)
Active Digital Isolation Serial Converter

Serial port conversion for industrial, agricultural, IoT, etc.

Features At A Glance

• Compatible with RS232/RS485 standard, converting the RS232 signal into balanced differential RS485 signal
• Stable transmission at the rate of 300~115200bps
• Onboard unibody power supply isolation, provides stable isolated voltage and needs no extra power supply for the isolated terminal

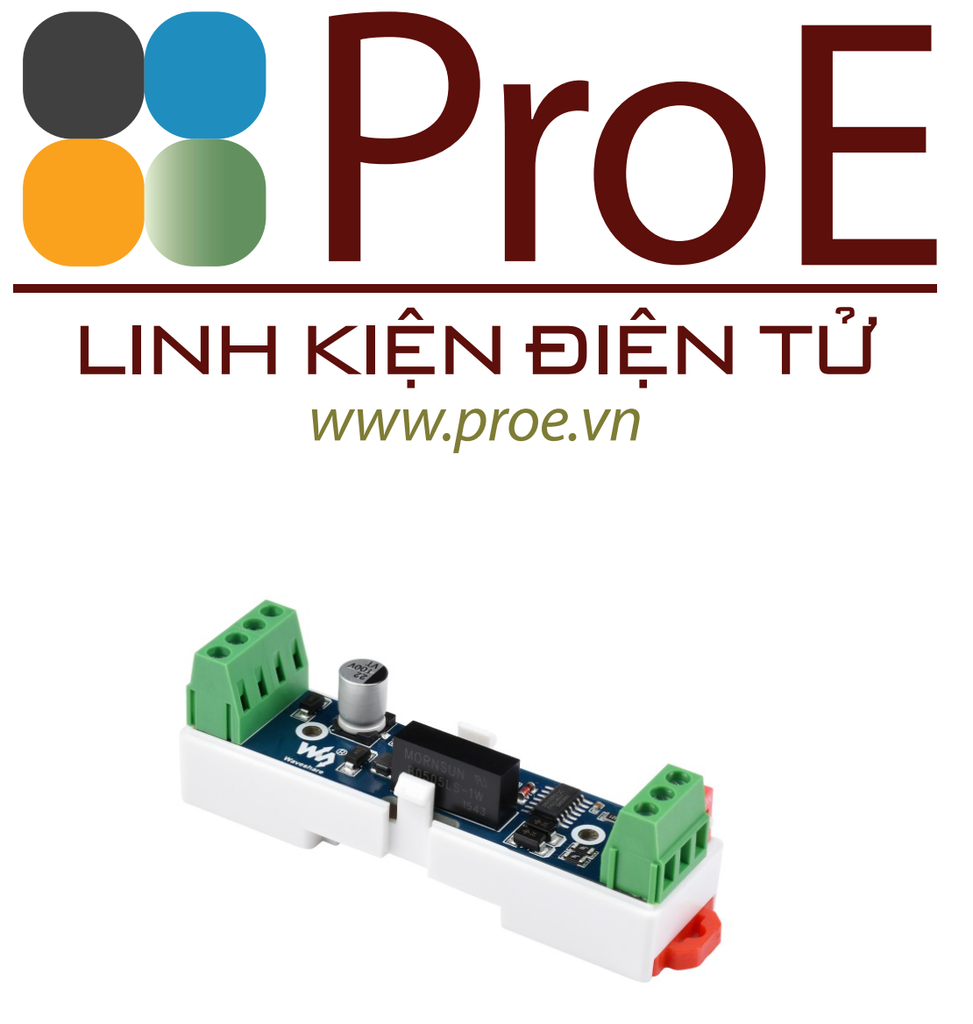

• Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
• Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
• Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provide over-current/over-voltage protection, improve shock resistance
• Integrates optional RS485 output terminal 120R resistor, enabled/disabled via a switch
• The onboard power supply screw terminal, allows 6V~36V DC wide range input
• Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective

Specifications

Primary Function

Converting The RS232 Signal Into Balanced Differential RS485 Signal
For Interface Converting, Expanding Nodes And Long-Distance Communication

1200m Long Distance Transmission

Stable Transmission On Rate Of 300~115200bps, About 1200m Transmission Distance Of RS485, About 15m Transmission Distance Of RS232

Rail-Mount Support

Easy To Combine Multi Rail-Mounted Serial Server Together, More Freely

Multiple Protection, Safe And Stable

Onboard power and signal isolation, provide stable isolated voltage, high reliability and strong anti-interference. Onboard Lightningproof Diodes and TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic. Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage protection, improves shock resistance

Interface Introduction

Application Topology

RS232 To RS485 Conversion

Access to a host, PLC or other devices with RS232 port, the RS232 can be converted to RS485 port for point-to-point half-duplex communication with external RS485 devices.

Access to a host, PLC or other devices with RS232 port, the RS232 can be converted to RS485 port for point-to-multipoints half-duplex communication with external RS485 devices.

Application Examples

The RS232 TO RS485 (B) can be widely used for point-to-point, point-to-multipoint, long distance cascaded communication network between two hosts, or between host and MCU/Peripheral. It also can be used in the application scenarios that require RS232 to RS485 conversion such as Industrial Automation and IoT.

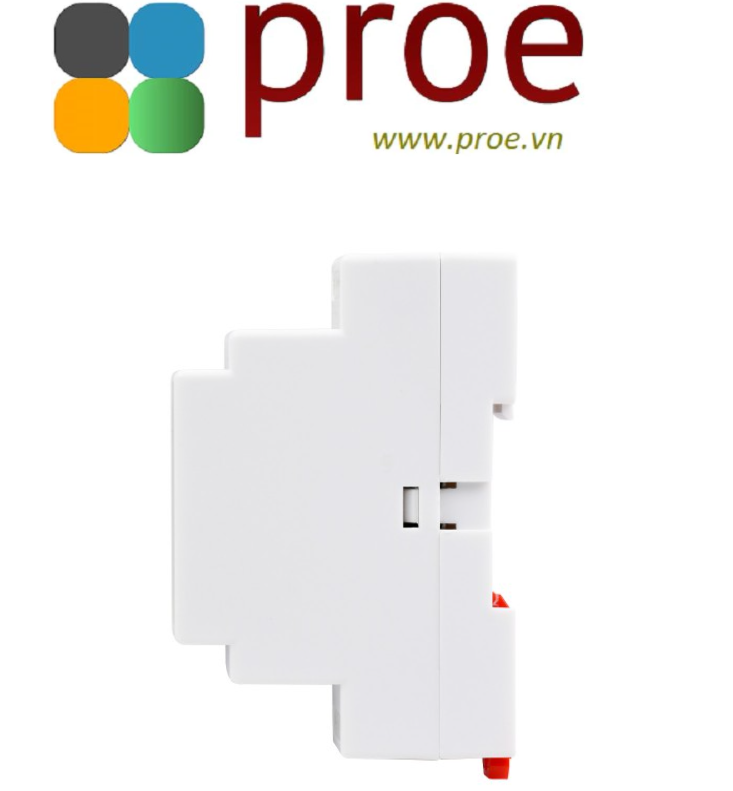

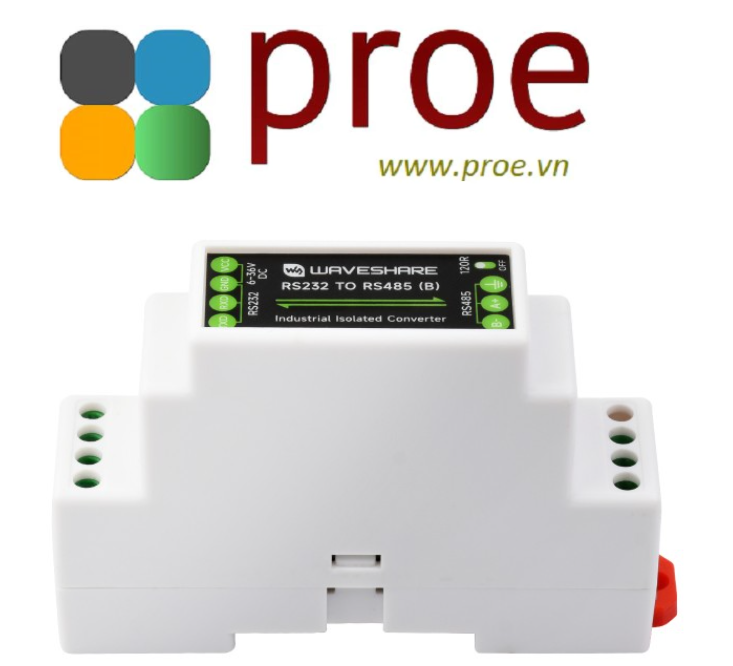

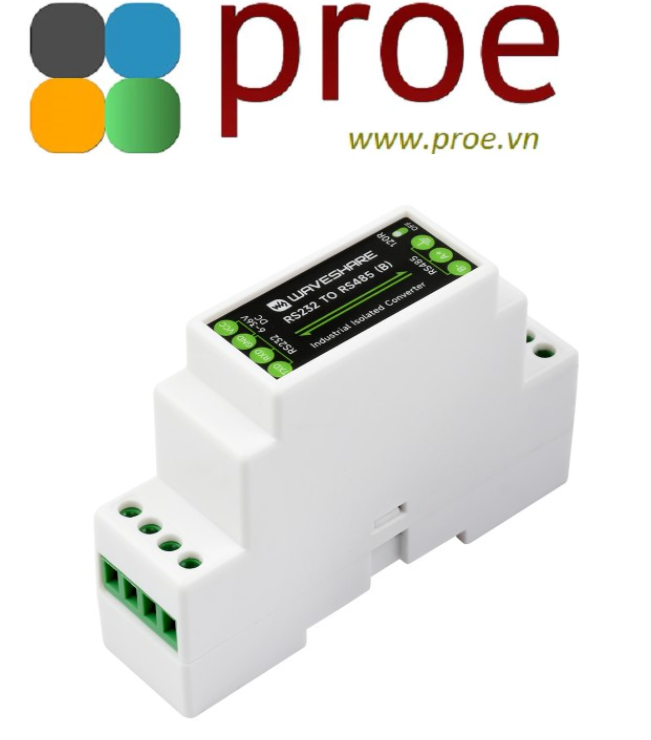

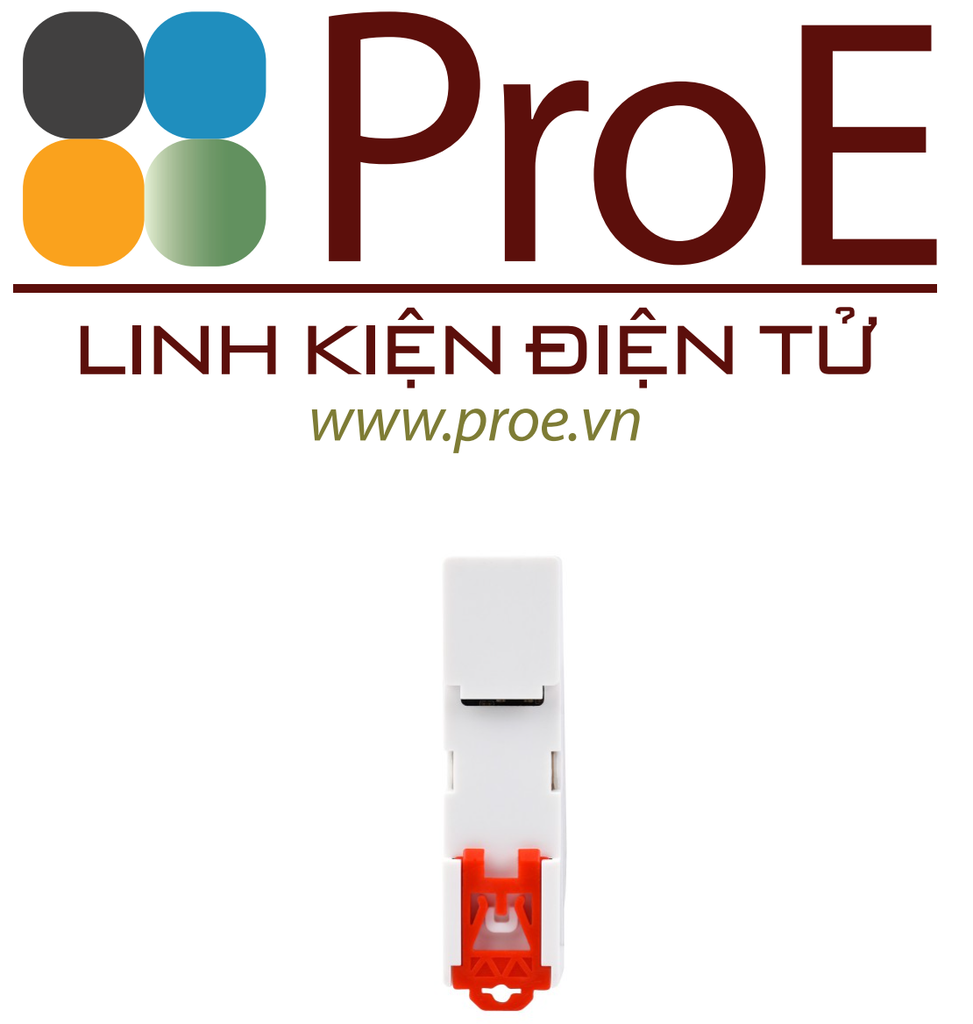

Product Show

Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/RS232_TO_RS485_(B)
