RPi Camera (I), Fisheye Lens

Wiki : www.waveshare.com/wiki/RPi_Camera_(I)

PACKAGE CONTENT

Weight: 0.018 kg

The included FFC is 15cm, if you need a longer cable, please consider: RPi Camera Cable 60cm

1. RPi Camera (I) x1
2. 15-pin FFC (opposite sides contact) x1

1

2

DESCRIPTION

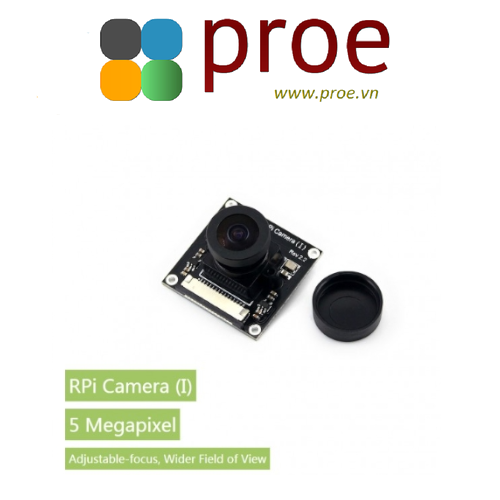

Raspberry Pi Camera Module, Fisheye Lens, Wider Field Of View
Features

• Raspberry Pi Camera, supports all revisions of the Pi
• Fisheye Lens, offers wider field of view
• 5 megapixel OV5647 sensor
• Adjustable focus distance
• Camera specifications
  • CCD size : 1/4inch
  • Aperture (F) : 2
  • Focal Length : 1.55mm
  • Angle of View (diagonal) : 185 degree (while other normal cameras are typically 72 degree)
  • Sensor best resolution : 1080p
• 2592 × 1944 still picture resolution
• Support 1080p30, 720p60 and 640x480p60/90 video record
• Dimension: 32mm × 32mm
