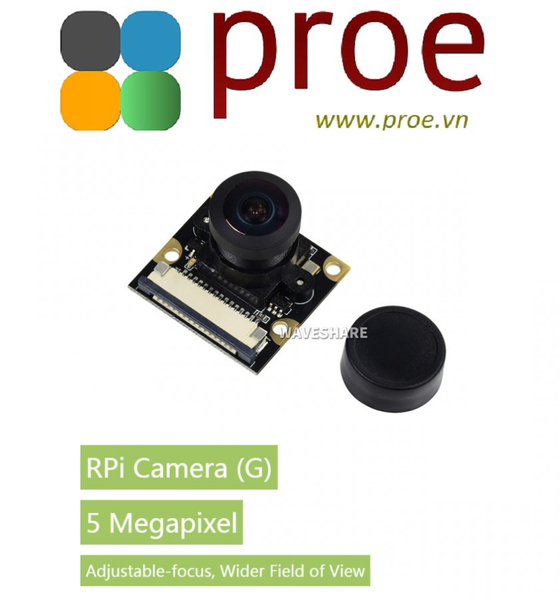

RPi Camera (G), Fisheye Lens

PACKAGE CONTENT

Weight: 0.016 kg

The included FFC is 16cm, if you need a longer cable, please consider: RPi Camera Cable 60cm

1. RPi Camera (G) x1
2. 15-pin FFC (opposite sides contact) x1

1

2

Raspberry Pi Camera Module, Fisheye Lens, Wider Field Of View

Features

• Raspberry Pi Camera, supports all revisions of the Pi
• Fisheye Lens, offers wider field of view
• 5 megapixel OV5647 sensor
• Adjustable focus distance
• Camera specifications
  • CCD size : 1/4inch
  • Aperture (F) : 2.35
  • Focal Length : 3.15mm
  • Angle of View (diagonal) : 160 degree (while other normal cameras are typically 72 degree)
  • Sensor best resolution : 1080p
• 4 screw holes
  • Used for attachment
  • Provides 3.3V power output
  • Supports connecting fill flash LED
• Dimension: 25mm x 24mm

Note: to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable

Downloads

Development resources:user manual, etc.
Download: www.waveshare.com/wiki/RPi_Camera_(G)
