RP2040 MCU Board, With 1.28inch Round LCD, Accelerometer And Gyroscope Sensor, With CNC Metal Case

Wiki: www.waveshare.com/wiki/RP2040-LCD-1.28

PACKAGE CONTENT

Weight: 0.027 kg

RP2040-LCD-1.28-B x1

DESCRIPTION

RP2040 MCU Board, With 1.28inch Round LCD, Accelerometer And Gyroscope Sensor, With CNC Metal Case

RP2040 MCU Board With LCD

Based on Raspberry Pi RP2040, adopts CNC metal case

Features

RP2040-LCD-1.28-B is a low-cost, high-performance MCU board designed by Waveshare. Tiny size with onboard 1.28inch LCD round display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope) and so on, adapting all GPIO and Debug pins, which makes it easy for you to develop and integrate it into products quickly.

Key features include:

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
• 264KB of SRAM, and 2MB of on-board Flash memory
• Type-C connector, keeps it up to date, easier to use

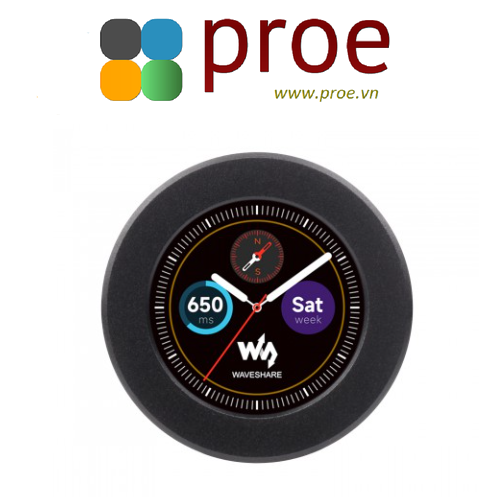

• Onboard 1.28inch 240×240 pixels 65K colorful IPS LCD display for clear color pictures
• Lithium battery recharge/discharge header, suitable for mobile devices
• Adopts CNC metal case with Acrylic dull-polish bottom plate
• All GPIO pins are adapted through 1.27 pitch female headers (There are 30 pins in total, but some pins have been connected to the internal circuit, please refer to the wiki for details when multiplexing)
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 8 × Programmable I/O (PIO) state machines for custom peripheral support

C/C++, MicroPython Support

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

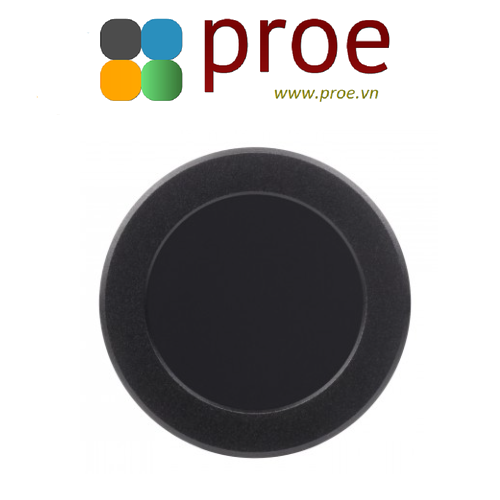

CNC Metal Case

Adopts CNC Metal Case With Acrylic Dull-Polish Bottom Plate

Dual-Core Arm Processor

Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz

30 × Multi-Function GPIO Pins

Configurable Pin Function, Allows Flexible Development And Integration

What's On Board

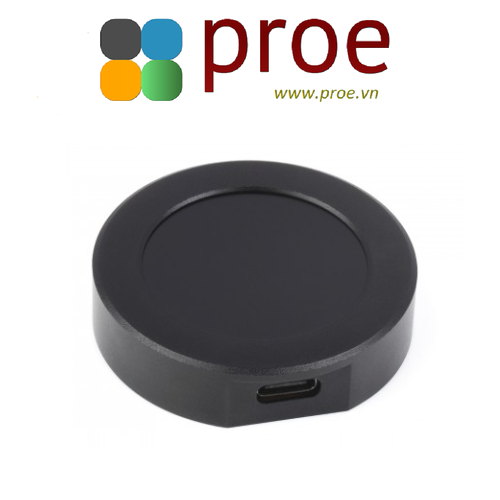

1. USB Type-C connector
   USB 1.1 with device and host support
2. ETA6096
   high efficiency Lithium battery recharge manager
3. Battery Header
   MX1.25 header, for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time
4. QMI8658C
   IMU, includes a 3-axis gyroscope and a 3-axis accelerometer

5. 1.27mm pitch headers
   Adapting all GPIO and Debug pins
6. W25Q16JVUXIQ
   2MB NOR-Flash
7. RP2040
   Dual-core processor, up to 133MHz operating frequency
8. RESET Button
9. BOOT Button
   press it when resetting to enter download mode

Outline Dimensions
