RGB Full-Color Multi-Features Digital Clock for Raspberry Pi Pico, 64×32 Grid, Accurate RTC

PACKAGE CONTENT

Weight: 0.393 kg

1. Pico-RGB-Matrix-P3-64x32 base board x
2. RGB-Matrix-P3-64x32 LED matrix and accessories x1
3. Black acrylic back panel x1
4. Dark brown acrylic front panel x1
5. IR remote controller x1
6. Double-sided tape x1
7. Screws pack x1

RGB Full-Color Multi-Features Digital Clock For Raspberry Pi Pico, 64×32 RGB Matrix, Accurate RTC

RGB Multi-Features Digital Clock For Pico

64×32 RGB Matrix, Accurate RTC, Multi-Features

Open Source, Programable, Expansion Support

Features At A Glance

This is a RGB LED matrix digital clock designed for Raspberry Pi Pico. It incorporates high precision RTC chip DS3231, photosensor, buzzer, IR receiver, and buttons, features multiple functions including accurate electronic clock, temperature display, auto brightness adjustment, alarm, and button config. The important part is, rich open source codes and development tutorials are also provided to help you fast get started with Raspberry Pi Pico and make your own original electronic clock.

• Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
• Using P3 fine-pitch RGB LED matrix panel, with 2048 individual RGB LEDs, 64×32 pixels, 3mm pitch, allows displaying text, colorful image, or animation
• Onboard high precision RTC chip DS3231, with backup battery holder (battery included), maintains accurate timekeeping when main power is off
  • Real-Time Clock Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the Week, and Year with Leap-Year Compensation Valid Up to 2100
  • Optional format : 24-hour OR 12-hour with an AM/PM indicator
  • 2x programable alarm clock
  • Digital temperature sensor output: ±3°C accuracy
• Embedded photosensor for auto brightness adjustment due to the ambient light, power saving and eye care
• Embedded buzzer for alarm or hourly ring, etc.
• IR receiver, combined with the IR remote controller, supports IR wireless control
• 5x buttons for configuration, reset, and code programming
• Quality acrylic back panel and dimmer panel, better looking, more comfortable displaying
• Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

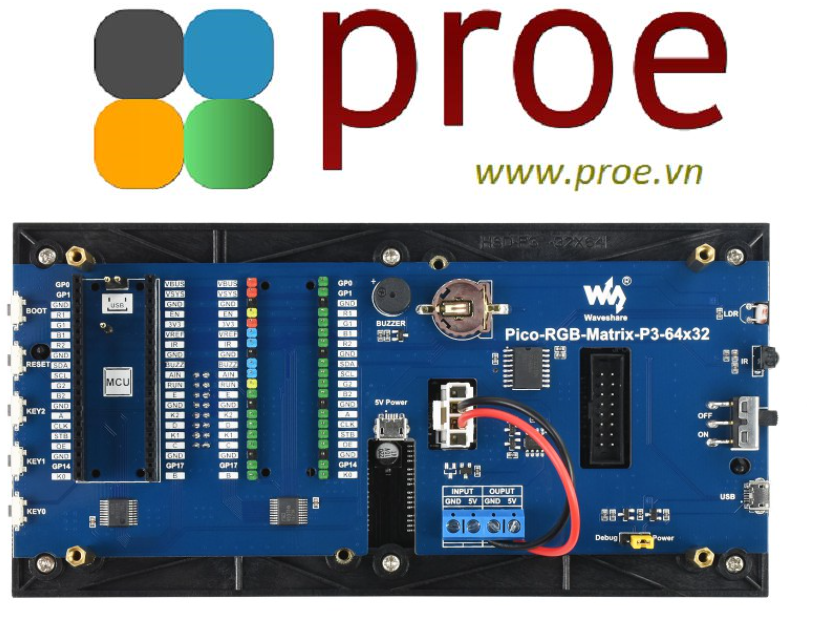

Raspberry Pi Pico Header Compatibility

Allows Attaching Raspberry Pi Pico Directly, And Certain Pico Expansion Modules

Pico and expansion modules are NOT included.
The LED matrix panel requires a Pico to work, we recommend this one with pre-soldered pin header: Raspberry-Pi-Pico-M

Programable & Study-Helpful

Not only for power supply, the USB port can also be used for debugging, helps you fast get started with Raspberry Pi Pico
C/Python program support, software and hardware open source, rich study and development tutorials

Precision RTC Chip DS3231

Incorporates High Precision RTC Chip DS3231, With Integrated Temperature Sensor
Backup Battery For Continuous Timekeeping When Power-Off

Photosensor & Buzzer

Photosensor Enables Auto Brightness Adjustment Due To Ambient Light
Buzzer Can Be Used For Alarm, Hourly Ring, Or Playing Music

IR Remote Control

Onboard IR Receiver, Comes With IR Remote Controller, More Handy To Use

Multi Software Functions Support

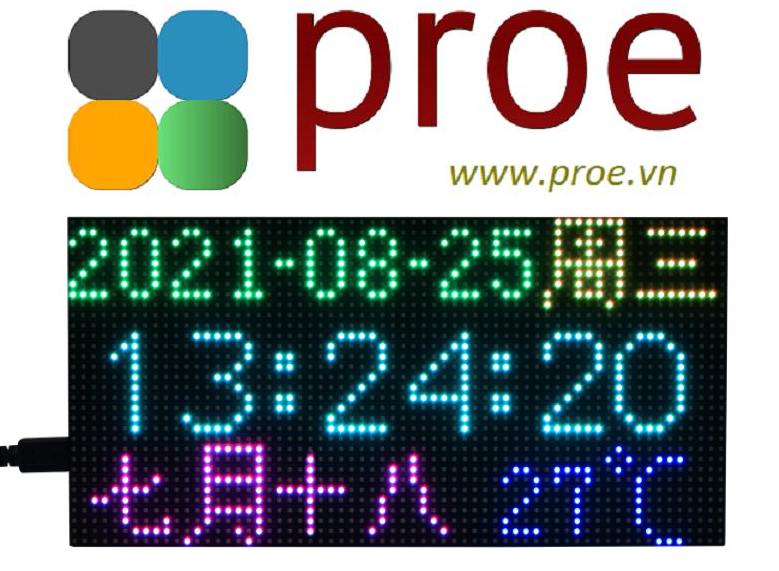

Time/Date/Day Of Week Displaying, Configuration Via Buttons, Animation Displaying
And More Other Functions Could Be Created By Yourself

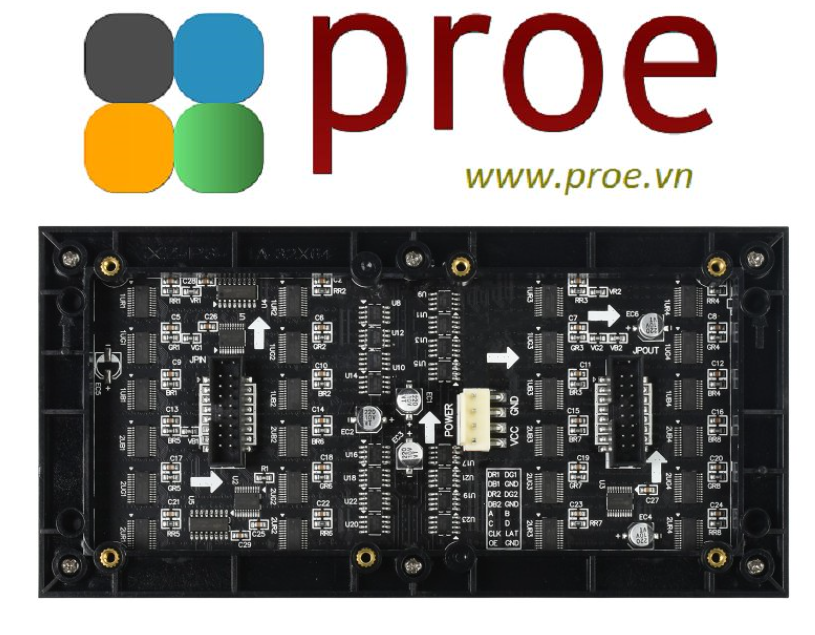

Chainable Design

Multi LED Matrix Panel Can Be Chained Together To Build A Larger Panel
Via HUB75 Input/Output Header

Each RGB LED matrix panel requires a standalone 5V/2.5A or above power supply, when their're chianed to display.

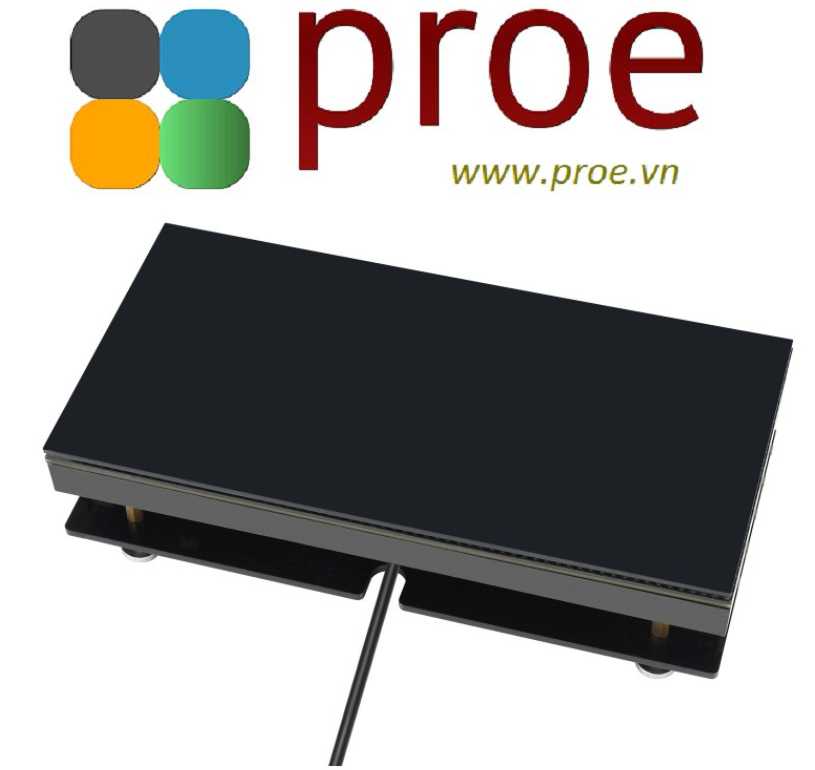

More Effects Through Acrylic Panels

Usage Scenarios

Introduction & Dimensions

* The dimensions are measured manually, for reference ONLY

Resources & Services

WIKI: Pico-RGB-Matrix-P3-64x32
